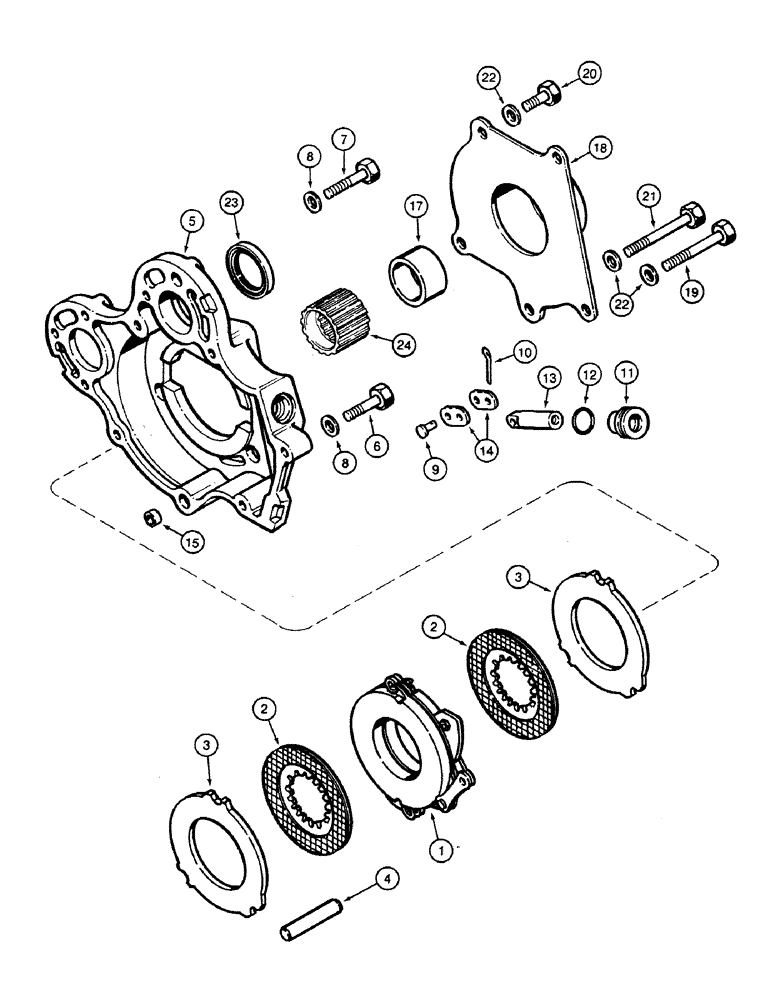

Запчасти Case 580SK (7-04) - TRANSAXLE ASSEMBLY PARKING BRAKE (07) - BRAKES

1

A158090

BRAKE ASSY.

1шт.

2

1341170C1

BRAKE DISC

DISC, BRAKE PLATE

2шт.

3

A178856

BACK PLATE

2шт.

4

A183228

PIN

3шт.

5

A188025

HOUSING

1шт.

6

826-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

M12 x 50 mm

5шт.

7

826-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

M12 x 60 mm

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

6шт.

9

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

10

32-612

COTTER PIN,3/32" x 3/4"

2шт.

11

A190099

PLUG

ADAPTER

1шт.

12

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

1шт.

13

A190100

SHAFT

1шт.

14

A186973

LINK

2шт.

15

A188330

SLEEVE

2шт.

17

1995134C1

SPACER

1шт.

4WD Version

1шт.

17

1345869C1

SPACER

1шт.

2WD Version

1шт.

18

A188960

COVER ASSY

1шт.

2WD Version

1шт.

19

826-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

M12 x 90 mm

4шт.

2WD Version

1шт.

20

826-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

M12 x 40 mm

1шт.

2WD Version

1шт.

21

826-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

M12 x 100 mm

1шт.

2WD Version

1шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

5шт.

2WD Version

1шт.

23

A158371

OIL SEAL,50.72mm ID x 66.77mm OD x 8.33mm Thk

1шт.

24

A186646

GEAR

HUB

1шт.
