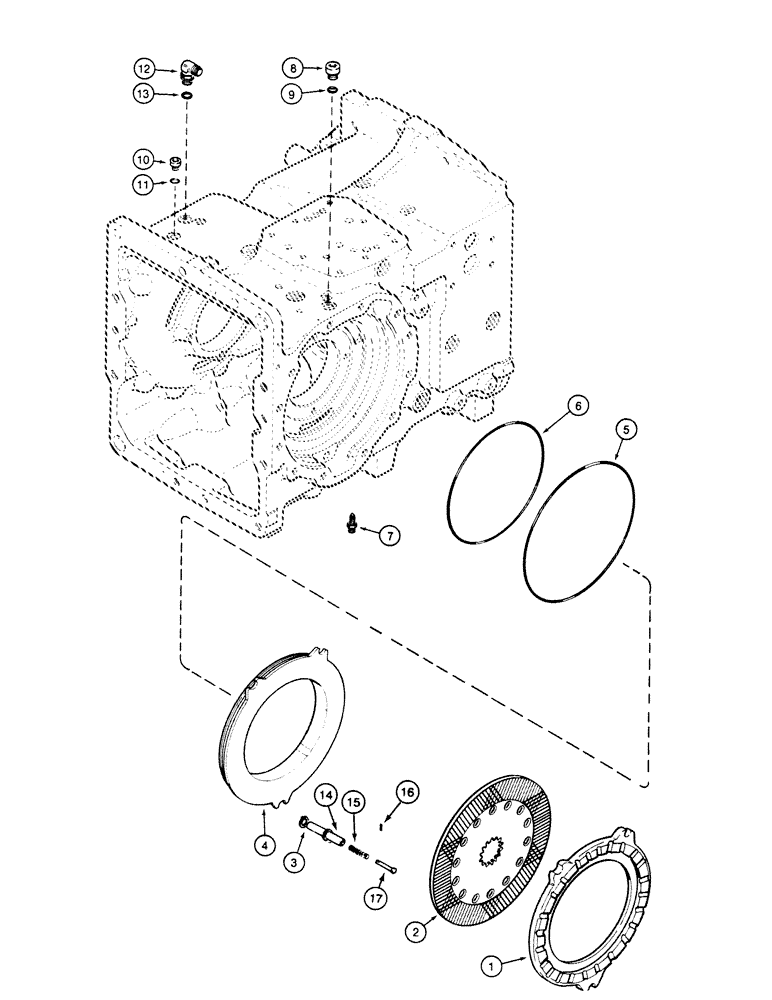

Запчасти Case 580SK (7-02) - TRANSAXLE ASSEMBLY DIFFERENTIAL BRAKE (07) - BRAKES

1

1995365C1

PLATE

2шт.

2

A188412

PLATE

2шт.

1345810C1

DOWEL

ADJUSTER Consists Of : 3,14 - 17

6шт.

3

100-1462

SNAP RING,#62, Ext

2шт.

4

1341069C1

PISTON

2шт.

5

238-5277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

2шт.

6

238-5273

O-RING,0.139" Thk x 9.734" ID, -273, Cl 5, 75 Duro

2шт.

7

A188637

BLEEDER

VALVE

4шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

With 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

87035062

PLUG,Hex, 1/2"-20 ORB

With 11

2шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

With 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

A186555

TUBE

1шт.

15

A190295

SPRING

1шт.

16

1345860C1

SPLIT PIN/SAFETY PIN

1шт.

17

1345809C1

PLUNGER

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
