(6-72) - CREEPER DRIVE ASSEMBLY AND CONTROLS

Запчасти Case 580SK (6-72) - CREEPER DRIVE ASSEMBLY AND CONTROLS (06) - POWER TRAIN

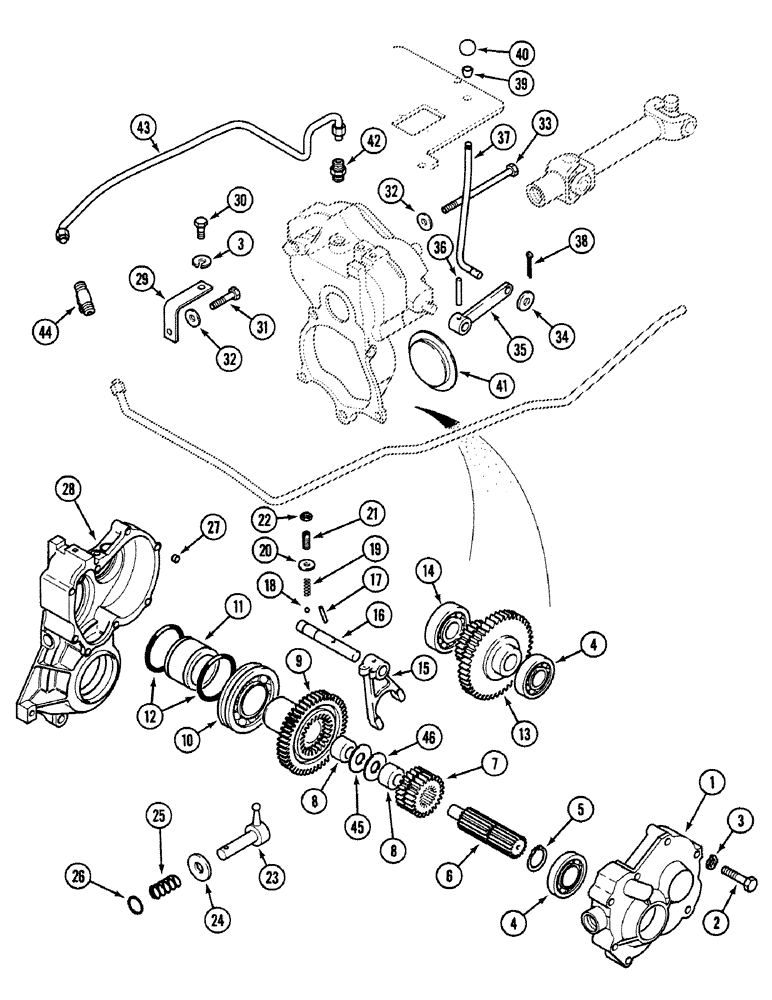

Схема запчастей Case 580SK - (6-72) - CREEPER DRIVE ASSEMBLY AND CONTROLS (06) - POWER TRAIN
13
25
22
40
35
17
5
34
2
16
31
1
33
19
4
28
27
37
15
26
3
41
32
14
45
12
24
8
18
46
38
3
20
42
6
11
23
29
10
36
44
39
7
9
8
4
32
43
30
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D143904

CASE

DRIVE ASSY Consists of : 1 - 30

1шт.

1

D147192

HOUSING

Front

1шт.

2

614-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8, Full Thd

M12 x 85 mm

7шт.

3

892-11012

LOCK WASHER,M12

8шт.

4

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

5

800-1135

SNAP RING,M35, Ext

1шт.

6

D147186

SHAFT

1шт.

7

D147184

GEAR

1шт.

8

D147185

NEEDLE BEARING

1шт.

8

E49745

BEARING

Use With : 9,45,46

2шт.

9

E49744

PINION

GEAR Drive

1шт.

10

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

1шт.

11

D147182

SLEEVE

1шт.

12

D147183

O-RING

2шт.

13

D147180

PINION

GEAR Driven

1шт.

14

D147179

BALL BEARING

1шт.

15

D147181

SHIFTER FORK

Selector

1шт.

16

D147177

PIN

SHAFT

1шт.

17

K261917

PIN

M6 x 30 mm

1шт.

18

211-1012

BALL,3/8" Dia

3/8"

1шт.

19

1966993C1

SPRING

1шт.

20

1966835C1

SEALING WASHER

12 mm

1шт.

21

878-11225

SET SCREW,Hex Skt, M12 x 25mm, Cup Pt

1шт.

22

K965369

JAM NUT

M12

1шт.

23

E45296

LEVER

ARM

1шт.

24

K395220

WASHER

1шт.

25

1967563C1

SPRING

1шт.

26

905835R1

OIL SEAL,20mm ID x 30mm OD x 7mm Thk

1шт.

27

E135752

BUSHING

DOWEL

2шт.

28

D147191

HOUSING

Rear

1шт.

29

D147190

SUPPORT

1шт.

30

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

31

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

32

892-11012

LOCK WASHER,M12

2шт.

33

827-12190

BOLT,Hex, M12 x 1.75 x 190mm, Cl 10.9

M12 x 190 mm

1шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

35

D149198

LEVER

1шт.

36

A157229

SPLIT PIN/SAFETY PIN

1шт.

37

D148710

ROD

1шт.

38

132-26

COTTER PIN

3/32"x 3/4"

1шт.

39

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

1шт.

40

D59912

KNOB

1шт.

41

D145658

PLUG

Versions With 2WD

1шт.

42

D142881

FITTING

ADAPTER

1шт.

43

D142735

PIPE

1шт.

44

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

TEE

1шт.

45

E49747

WASHER

RING Use With : 9,46,E49745

1шт.

46

E49746

WASHER

RING Use With : 9,45,E49745

1шт.

345-84

ADHESIVE

SEALANT 3 fl. oz.

1шт.

345-151

SEALANT

SEALANT 1 cc

1шт.
