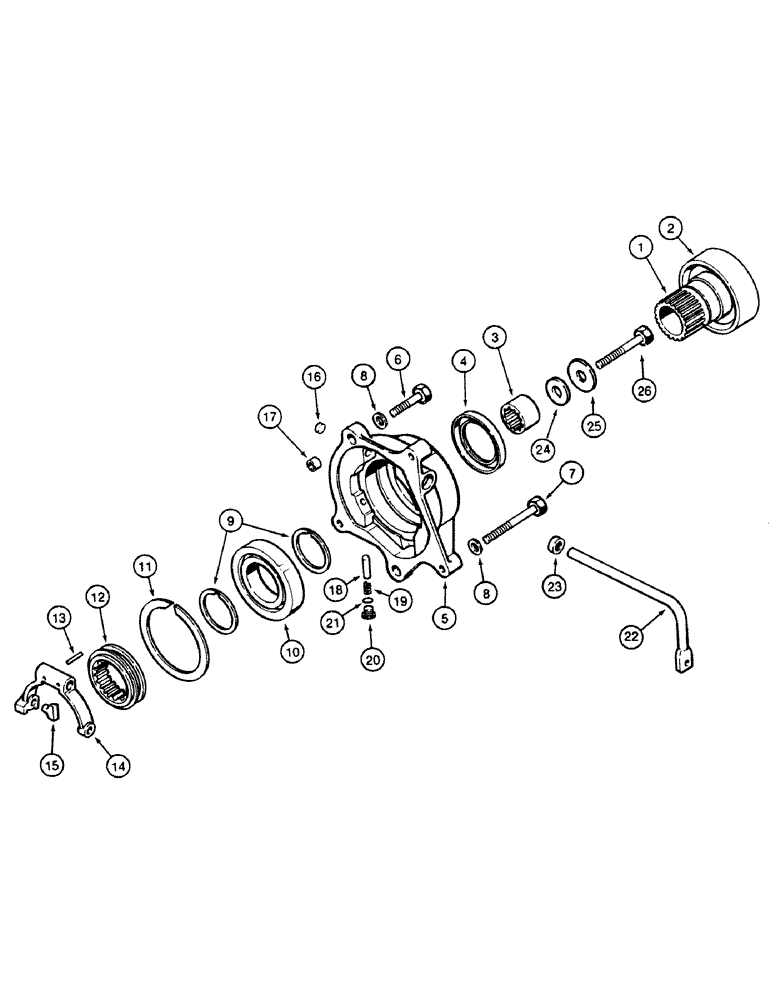

Запчасти Case 580SK (6-70) - TRANSAXLE SHIFT MECHANISM OUTPUT SHAFT - MFD (06) - POWER TRAIN

1995265C1

SERVICE KIT

Consists Of : 1 - 4,24,25,26

1шт.

1

1995266C1

FLANGE

YOKE With : 2

1шт.

2

A188865

SLINGER

1шт.

3

1995134C1

SPACER

1шт.

4

A186909

OIL SEAL,72.95mm ID x 101.88mm OD x 9.91mm Thk

1шт.

5

A188304

HOUSING

1шт.

6

826-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

M12 x 60 mm

1шт.

7

826-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

M12 x 110 mm

4шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

5шт.

9

100-11275

SNAP RING,#275, Ext

1шт.

10

A186910

BEARING, BALL

1шт.

11

100-21500

SNAP RING,5.00", Int, #500

1шт.

12

1995025C1

RING,16T

COLLAR

1шт.

13

38-31216

PIN,3/16" x 1", Coiled

2шт.

14

A188334

FORK

1шт.

15

A188527

FINGER

2шт.

16

41-1010

PLUG,Cup, 5/8"

5/8"

1шт.

17

A188330

SLEEVE

2шт.

18

A188074

PIN,9.53mm OD x 39mm L

1шт.

19

1995200C1

SPRING

1шт.

20

9625178

PLUG,9/16" - 18 ORB

With 21

1шт.

22

A190448

CONTROL LEVER

1шт.

23

A178864

OIL SEAL,15.88mm ID x 25.4mm OD x 6.35mm Thk

1шт.

24

A188344

SHIM,17.11mm ID x 41mm OD x 0.05mm Thk

2шт.

24

A188345

SHIM,17.11mm ID x 41mm OD x 0.13mm Thk

2шт.

24

A186917

SHIM,17.11mm ID x 41mm OD x 0.31mm Thk

2шт.

24

A186918

SHIM,17.11mm ID x 41mm OD x 1.02mm Thk

1шт.

25

A186924

WASHER, THRUST

1шт.

26

1345879C1

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9, Drilled

M16 x 110 mm

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
