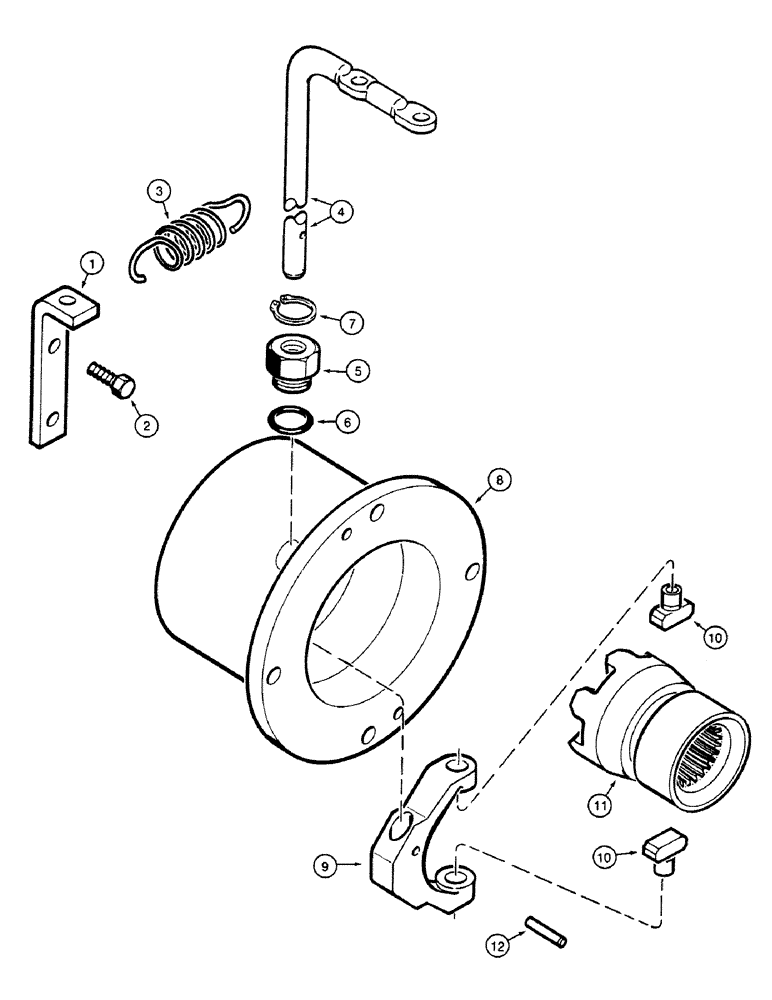

Запчасти Case 580SK (6-66) - TRANSAXLE DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A190233

PLATE ASSY.

BRACKET

1шт.

2

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

3

A190340

SPRING

1шт.

4

A190317

SHAFT

Lock, Serial Range: Rod-Pedal

1шт.

5

A175295

PLUG

With : 6

1шт.

7

100-1450

SNAP RING,#50, Ext

1шт.

8

A175242

BEARING CARRIER,98 mm ID x 180 mm OD x 109.75 mm

CARRIER

1шт.

9

A190263

FORK

ASSY With : 10

1шт.

10

A190265

SHIFTER FORK,10mm OD x 21mm L

2шт.

11

A190264

COLLAR

COLLAR Differential Lock

1шт.

12

38-31216

PIN,3/16" x 1", Coiled

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
