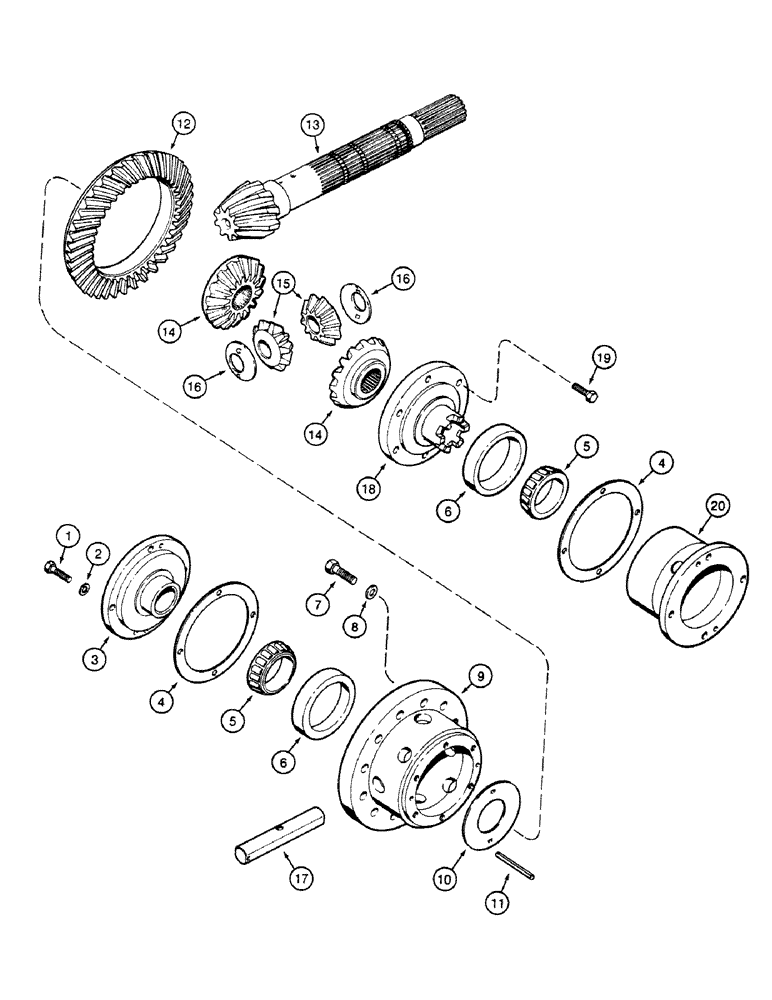

Запчасти Case 580SK (6-64) - TRANSAXLE DIFFERENTIAL (06) - POWER TRAIN

1

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

2

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

8шт.

3

1345865C1

DIFF CARRIER & GEARS

CARRIER Left

1шт.

4

A175236

SHIM,0.08mm Thk

1шт.

4

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

1шт.

4

A175238

SHIM,0.25mm Thk

1шт.

4

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

1шт.

5

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

2шт.

6

13363D

TAPERED BEARING

CUP

2шт.

7

826-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9

M12 x 45 mm

12шт.

8

396-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

9

1345864C1

CASE

CARRIER

1шт.

1345909C1

KIT

Consists of : 10,11,14 - 18

1шт.

10

1345640C1

THRUST WASHER,47.5mm ID x 109mm OD x 3.2mm Thk

1шт.

11

38-11652

LOCK PIN,6.35mm OD x 82.55mm L, Slotted

1шт.

A190333

GEAR, BEVEL

BEVEL GEAR SHAFT With Pinion Consists of : 12,13,A190455

1шт.

12

GEAR Bevel

1шт.

13

SHAFT

1шт.

A190455

BEARING ASSY,63.5mm ID x 138.25mm OD x 36.54mm W

Not Shown

1шт.

14

1345894C1

GEAR

16 T Side

2шт.

15

A188633

GEAR

10 T Pinion

2шт.

16

124869A1

THRUST WASHER,29mm ID x 65.54mm OD x 2.3mm Thk

2шт.

17

1345893C1

PIN,28.57mm OD x 171mm L

1шт.

18

129905A1

CASE

CARRIER

1шт.

19

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

20

A175242

BEARING CARRIER,98 mm ID x 180 mm OD x 109.75 mm

CARRIER Right

1шт.
