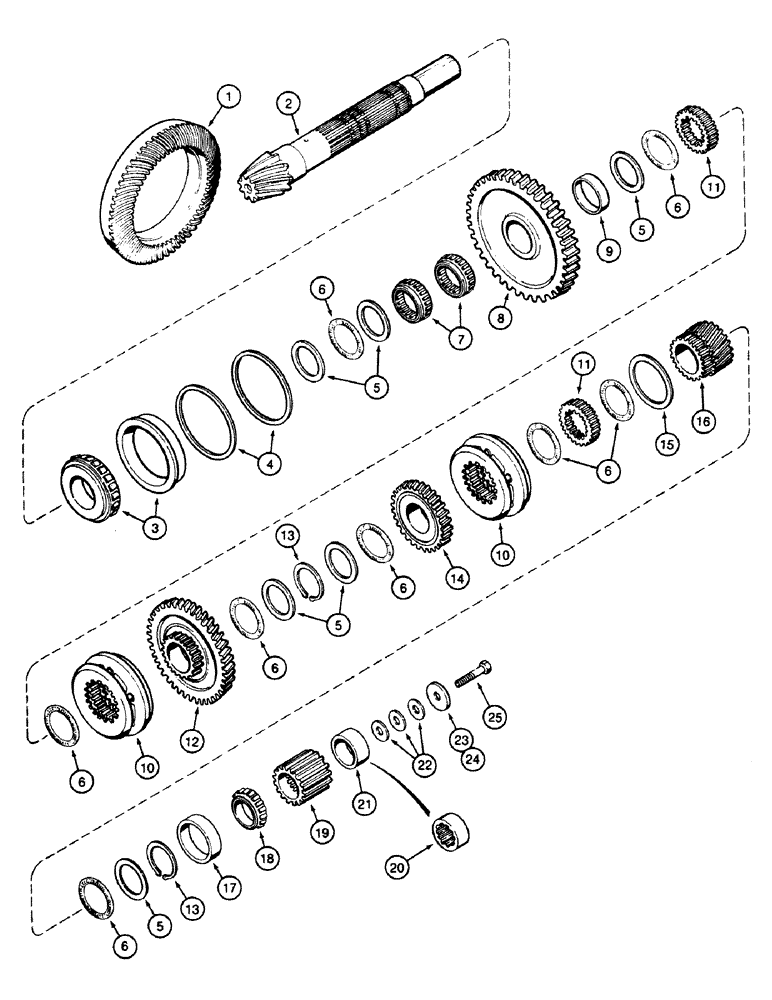

Запчасти Case 580SK (6-60) - TRANSAXLE COUNTERSHAFT (06) - POWER TRAIN

A190333

GEAR, BEVEL

BEVEL GEAR SHAFT With Bevel Gear Consists of : 1 - 3

1шт.

1

GEAR

1шт.

2

PINION

1шт.

3

A190455

BEARING ASSY,63.5mm ID x 138.25mm OD x 36.54mm W

1шт.

4

A188020

SHIM,130.75mm ID x 139mm OD x 0.09mm Thk

1шт.

4

A188021

SHIM,130.75mm ID x 139mm OD x 0.2mm Thk

1шт.

4

A188022

SHIM,130.75mm ID x 139mm OD x 0.28mm Thk

1шт.

4

A188023

SHIM,130.75mm ID x 139mm OD x 0.55mm Thk

1шт.

5

A150067

WASHER, THRUST,57.33mm ID x 75.7mm OD x 3.16mm Thk

6шт.

6

K620185

THRUST BEARING

8шт.

7

A175430

NEEDLE BEARING,66.703 mm ID x 57.150 mm OD x 25.4 mm

2шт.

8

A190077

PINION

GEAR 64 T 1st Gear

1шт.

9

A175708

SPACER

1шт.

10

A188592

SYNCHRONIZER

2шт.

11

A188630

HUB

2шт.

12

A190336

PINION

GEAR 51 T 2nd Gear

1шт.

13

100-11225

SNAP RING,#225, Ext

2шт.

14

A190337

PINION

GEAR 34 T 3rd Gear

1шт.

15

A183747

WASHER, THRUST,83.05mm ID x 105mm OD x 4.49mm Thk

4th Gear

1шт.

16

A190339

PINION

GEAR 37 T 4th Gear

1шт.

17

181251C1

CUP,84mm OD x 22.2mm Thk

1шт.

18

181250C91

ROLLER BEARING,50mm ID x 22.2mm Thk

1шт.

19

A186646

GEAR

HUB Parking Brake

1шт.

20

1995134C1

SPACER

MFD Versions Only

1шт.

21

1345869C1

SPACER

Version With 2WD

1шт.

22

A188344

SHIM,17.11mm ID x 41mm OD x 0.05mm Thk

1шт.

22

A188345

SHIM,17.11mm ID x 41mm OD x 0.13mm Thk

1шт.

22

A186917

SHIM,17.11mm ID x 41mm OD x 0.31mm Thk

1шт.

22

A186918

SHIM,17.11mm ID x 41mm OD x 1.02mm Thk

1шт.

23

A186924

WASHER, THRUST

Version With MFD

1шт.

24

A188584

WASHER, THRUST

Version With 2WD

1шт.

25

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

Version with 2WD

1шт.

25

1345879C1

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9, Drilled

M16 x 110 mm Version With MFD

1шт.
