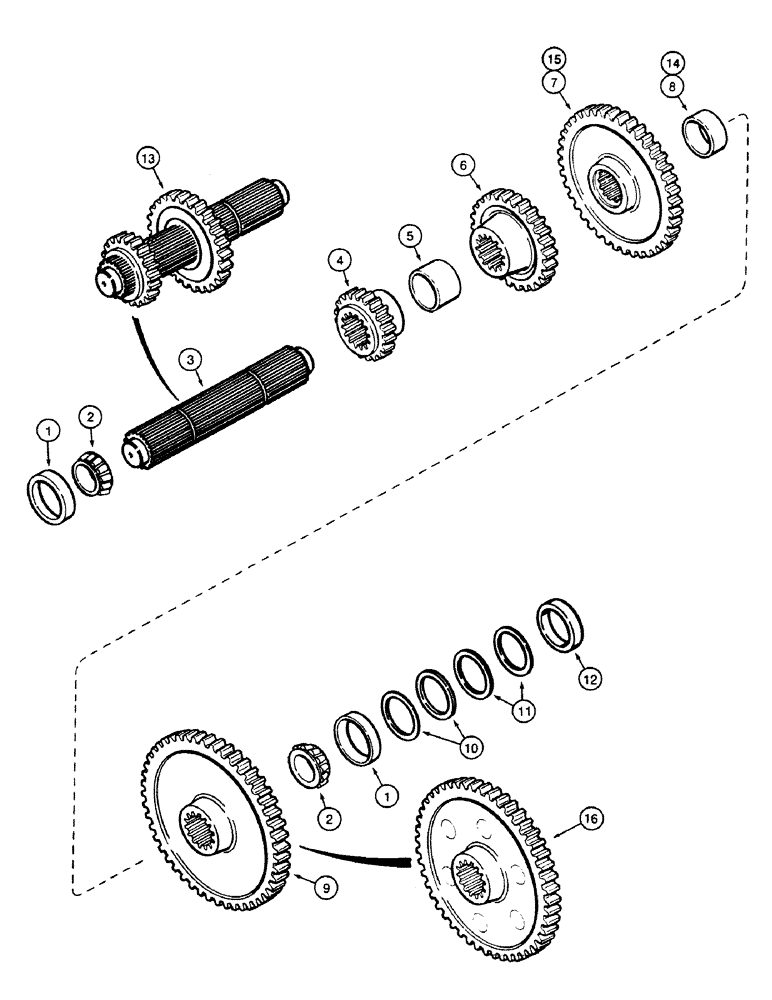

Запчасти Case 580SK (6-58) - TRANSAXLE INTERMEDIATE SHAFT (06) - POWER TRAIN

1

G57451

BEARING, CUP

CUP

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

2шт.

3

A183911

SHAFT

1шт.

4

A190078

PINION

GEAR 25 T First

1шт.

5

A186385

SPACER

SPACER 1st,2nd Gear

1шт.

6

A190251

PINION

GEAR 38 T 2nd Gear

1шт.

7

A190252

GEAR WHEEL

55 T 3rd Gear

1шт.

8

A186384

SPACER

SPACER 3rd and 4th Gear

1шт.

9

A190085

PINION

GEAR 97 T 4th Gear

1шт.

10

A175453

SHIM,0.178mm Thk

1шт.

10

A175454

SHIM,54mm ID x 64.67mm OD x 0.5mm Thk

1шт.

11

K915558

SHIM,53.98mm ID x 64.29mm OD x 0.08mm Thk

1шт.

11

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

1шт.

12

A175689

SPACER

1шт.

13

A190309

SHAFT

25/38 T Use With : 14,15,16

1шт.

14

A190327

SPACER

1-21/32" Use With : A190309

1шт.

15

A190311

PINION

GEAR 55 T Use With : A190309/3rd

1шт.

16

A190312

PINION

GEAR 97 T Use With : A190309/4th

1шт.
