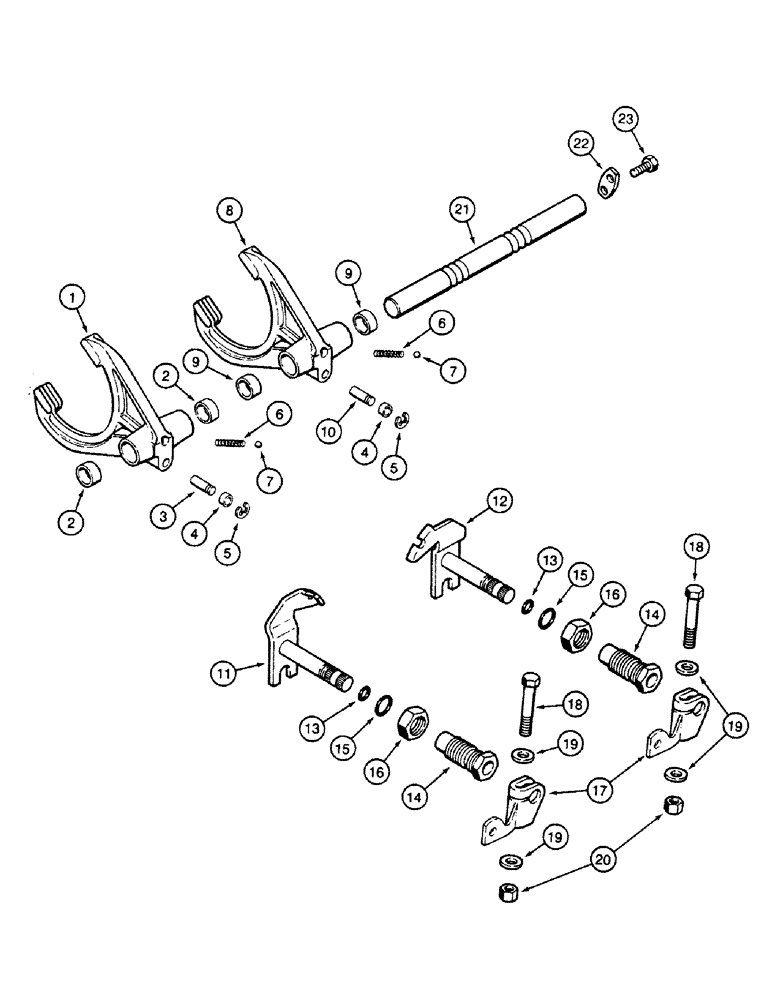

Запчасти Case 580SK (6-56) - TRANSAXLE SHIFTER MECHANISM (06) - POWER TRAIN

1

A183009

FORK

ASSY First and Second With : 2,3

1шт.

2

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

2шт.

3

A183146

SPLIT PIN/SAFETY PIN

1шт.

4

A178954

SLEEVE

2шт.

5

211-262

BALL,7/16 Dia

RING

2шт.

6

A175971

SPRING

2шт.

7

211-262

BALL,7/16 Dia

2шт.

8

A183009

FORK

ASSY Third and Fourth With : 9,10

1шт.

9

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

2шт.

10

A183146

SPLIT PIN/SAFETY PIN

1шт.

11

1964326C1

LEVER ASSY.

ARM First and Second

1шт.

12

1964325C1

LEVER ASSY.

ARMThird and Fourth

1шт.

13

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

2шт.

14

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

16

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

17

1995109C1

LEVER

2шт.

18

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

829-1412

NUT,M12, Cl 10.9

2шт.

21

A188348

RAIL

Use With : A183561

1шт.

21

1995142C1

SLIPPER

RAIL Use With : 1995141C1

1шт.

22

A178279

SEALING STRIP

PLATE

1шт.

23

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.
