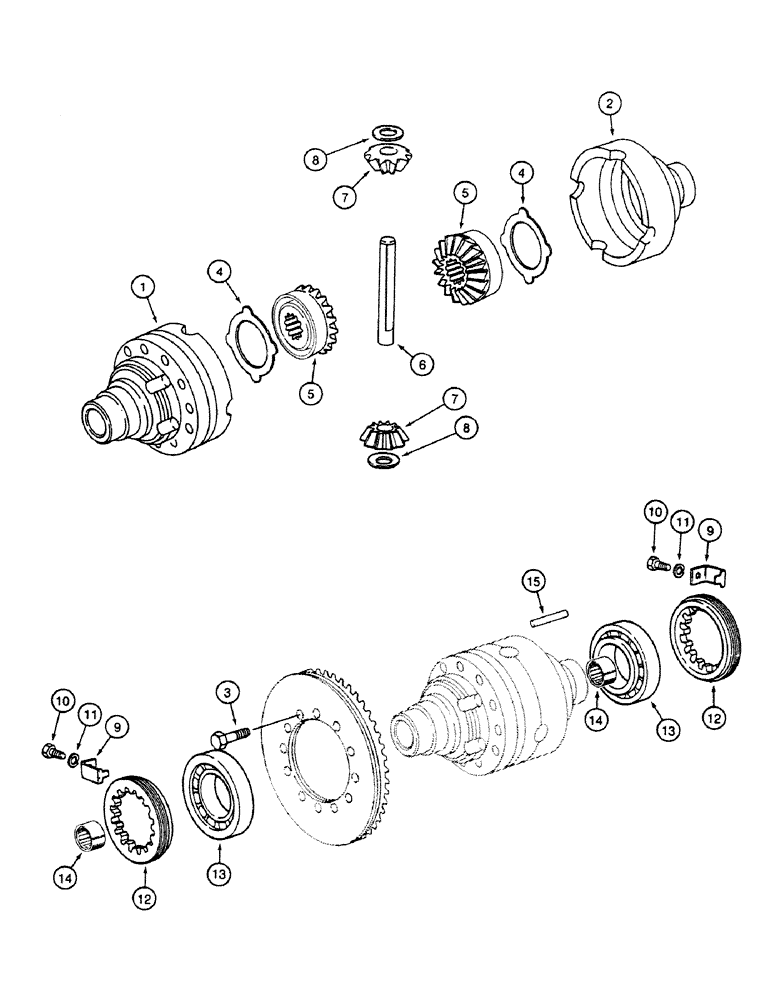

Запчасти Case 580SK (6-48) - FRONT DRIVE AXLE DIFFERENTIAL (06) - POWER TRAIN

D148250

AXLE, FRONT

ASSY Carraro : 126139

1шт.

109686A1

HOUSING ASSY.

CASE Consists of : 1 - 3

1шт.

1

CASE

1шт.

2

CASE

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

12шт.

M20704

ADHESIVE

SEALANT 89 ml

1шт.

4

1967003C1

THRUST WASHER

2шт.

5

N14407

GEAR

2шт.

6

K395087

SHAFT

2шт.

7

N14408

SUN GEAR

4шт.

8

K395075

THRUST WASHER

4шт.

9

1966153C1

LOCKING PLATE

2шт.

10

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

11

892-11006

LOCK WASHER,M6

2шт.

12

1966559C1

NUT

2шт.

13

K395027

TAPERED BEARING

2шт.

14

1967625C1

BUSHING

1шт.

15

K395086

PIN

1шт.
