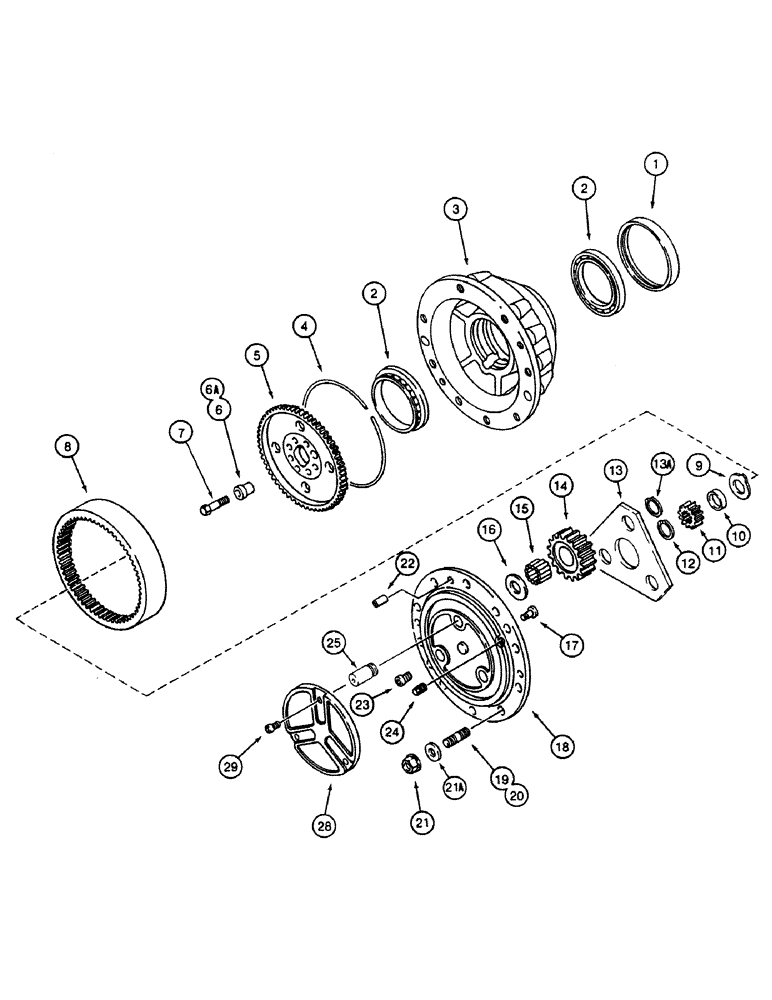

Запчасти Case 580SK (6-46) - FRONT DRIVE AXLE PLANETARY (06) - POWER TRAIN

D148250

AXLE, FRONT

ASSY Carraro : 126139

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

4шт.

3

K395123

HUB

2шт.

4

H437679

RING, SNAP

RING SNAP

4шт.

5

H437678

RING, FLYWHEEL

HUB

2шт.

6

107071A1

BUSHING

20 mm OD

14шт.

6a

107072A1

CENTERING RING

BUSHING 24 mm OD

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

16шт.

8

H437677

GEAR, RING

RING, GEAR

2шт.

9

K395115

WASHER

2шт.

10

K395121

SPACER

SPACER

2шт.

11

K395114

GEAR

2шт.

12

K261897

RING, SNAP

RING SNAP

2шт.

13

K395122

PLATE

WASHER

6шт.

13a

K395028

RING, SNAP

RING SNAP

6шт.

14

K395110

GEAR

6шт.

15

119685A1

NEEDLE BEARING

SET Bearing Of : 10

180шт.

16

K395091

THRUST WASHER

Outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

2шт.

18

K395111

PINION CARRIER

COVER

2шт.

19

K260218

STUD

Without Collar

12шт.

20

N13515

STUD

With Collar

4шт.

21

K395089

WHEEL NUT

16шт.

21a

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

16шт.

22

K395094

DOWEL,M18 x 36

4шт.

23

K395029

SCREW

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

K395124

SHAFT

6шт.

28

K395135

COVER

PLATE

2шт.

M20704

ADHESIVE

SEALANT 89 ml

1шт.

29

K395082

SCREW,M8 x 20mm

6шт.
