(6-42) - FRONT DRIVE AXLE STEERING CYLINDER

Запчасти Case 580SK (6-42) - FRONT DRIVE AXLE STEERING CYLINDER (06) - POWER TRAIN

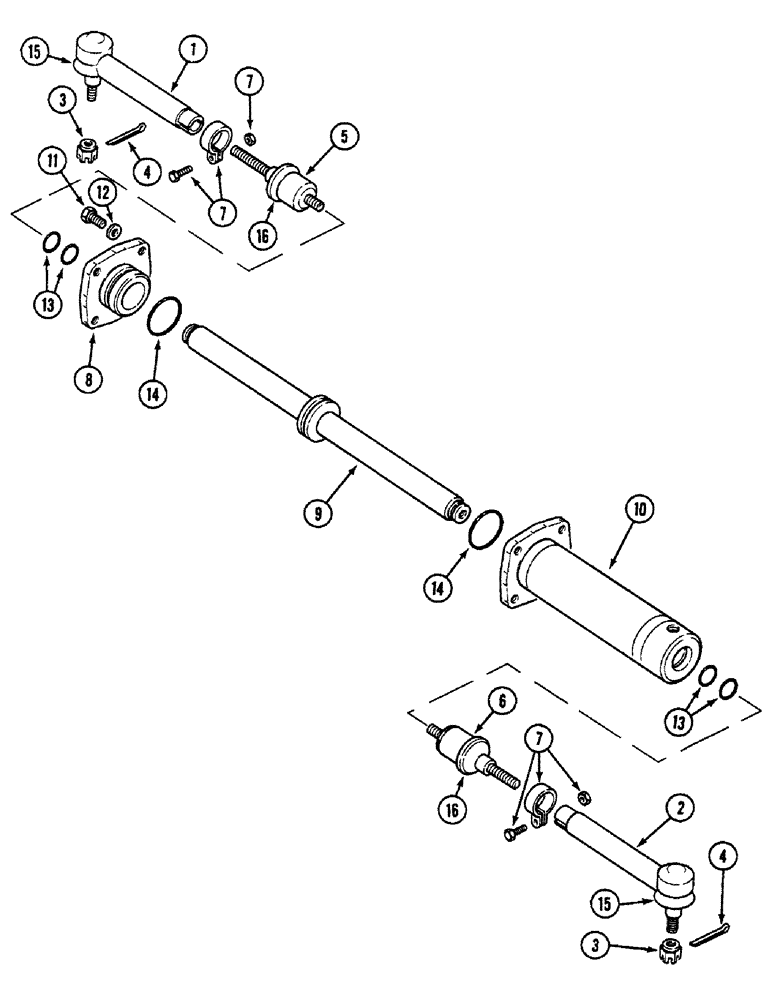

Схема запчастей Case 580SK - (6-42) - FRONT DRIVE AXLE STEERING CYLINDER (06) - POWER TRAIN
2
13
5
16
9
4
3
3
14
15
6
16
10
12
14
13
8
11
15
7
7
4
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D148250

AXLE, FRONT

ASSY Carraro : 126139

1шт.

D149730

BALL JOINT

Left Consists of : 1,3,4

1шт.

D149728

BALL JOINT

Right Consists of : 2 - 4

1шт.

1

126144A1

BALL JOINT

With : 15 Left

1шт.

2

126145A1

BALL JOINT

With : 15 Right

1шт.

2

126145A1GV

TIE-ROD

With : 15 Right

1шт.

3

126141A1

NUT

Left

1шт.

3

126143A1

NUT

Right

1шт.

4

632-656

COTTER PIN,M4 x 36

4 x 36 mm

1шт.

5

N14388

BALL JOINT

ROD Tie With : 16 Left

1шт.

6

N14377

ARTICULATION

ROD Tie With : 16 Right

1шт.

7

D142924

CLAMP

1шт.

D149729

STEERING CYLINDER,Double Acting, 36mm Rod, 121mm Stroke

ASSY Consists of : 8 - 14

1шт.

8

D149737

GLAND

1шт.

9

D149736

ROD

PISTON

1шт.

10

D149738

STEERING CYLINDER

1шт.

11

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

12

892-11012

LOCK WASHER,M12

4шт.

D149739

SEAL PACKAGE

KIT Seal, Consists Of : 13,14 Steering Cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

O RING

4шт.

14

NSS

NOT SOLD SEPARAT

SEAL

4шт.

15

194918A1

BELLOWS

BOOT

1шт.

16

194919A1

BELLOWS

BOOT

1шт.
