(6-40) - FRONT DRIVE AXLE SWIVEL HOUSING

Запчасти Case 580SK (6-40) - FRONT DRIVE AXLE SWIVEL HOUSING (06) - POWER TRAIN

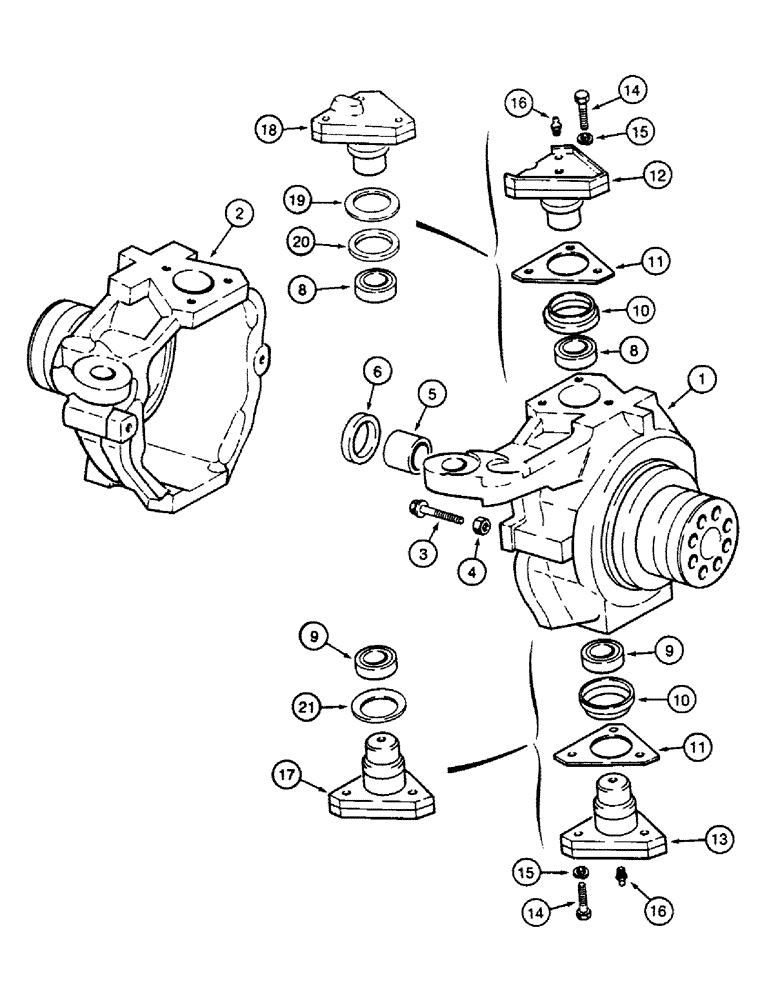

Схема запчастей Case 580SK - (6-40) - FRONT DRIVE AXLE SWIVEL HOUSING (06) - POWER TRAIN
11
2
8
9
16
3
20
12
19
9
18
17
10
14
8
16
6
15
13
10
15
21
5
4
11
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D148250

AXLE, FRONT

ASSY Carraro : 126139

1шт.

1

N14375

HOUSING

Right

1шт.

2

N14374

HOUSING

Left

1шт.

3

81859C1

BOLT,M14 x 2 x 75mm

Special M14

4шт.

4

D142908

NUT

M12

4шт.

5

1967535C1

BUSHING

2шт.

6

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

2шт.

M20704

ADHESIVE

SEALANT 89 ml

1шт.

8

N14372

BUSHING

BEARING Upper

2шт.

9

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

Lower

2шт.

10

K395039

SEAL

, Start Serial: JJH0046103

4шт.

11

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Spacer, Start Serial: JJH0046103

1шт.

11

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Spacer, Start Serial: JJH0046103

1шт.

11

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Spacer, Start Serial: JJH0046103

1шт.

12

N14376

PIN

Upper, Start Serial: JJH0046103

2шт.

13

N13504

PIVOT

PIN Lower, Start Serial: JJH0046103

2шт.

14

K965247

BOLT,M14 x 35mm

Special M14

12шт.

15

K965248

WASHER

14 mm

12шт.

16

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

17

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

PIN, Serial Range: -JJH0046104

2шт.

18

122260A1

PIVOT

PIN, Serial Range: -JJH0046104

2шт.

19

122262A1

BELLEVILLE WASHER

, Serial Range: -JJH0046104

2шт.

20

144611A1

SHIM

SPACER, Serial Range: -JJH0046104

2шт.

21

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

, Serial Range: -JJH0046104

2шт.
