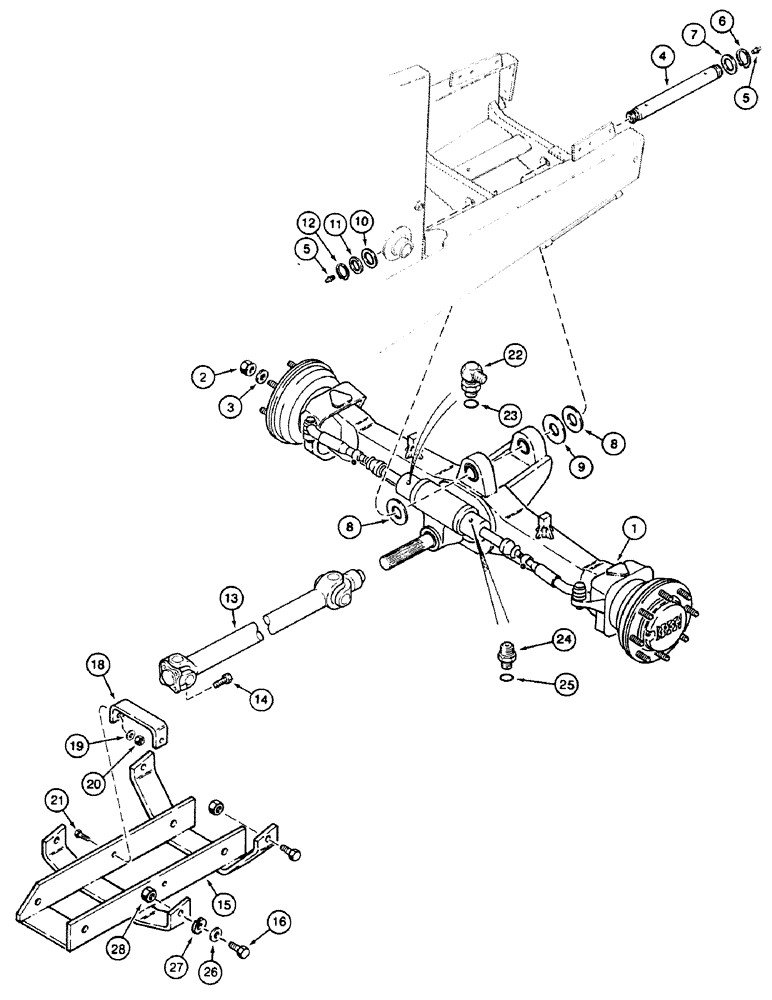

Запчасти Case 580SK (6-34) - FRONT DRIVE AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

D148250

AXLE, FRONT

ASSY

1шт.

2

K395089

WHEEL NUT

16шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

3/4"

16шт.

4

E48806

AXLE PIN

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

6

800-44050

SNAP RING,M50, Ext

1шт.

7

495-81282

WASHER,2 1/16" x 3" x .109"

1шт.

8

D37449

SHIM,.0747" Thk

Washer

1шт.

9

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

1шт.

10

D143431

WASHER

1шт.

11

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

1шт.

12

103-16175

SNAP RING,#175, Ext

1шт.

13

1349244C1

SHAFT

ASSY See Figure : 6-36

1шт.

14

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

M10 x 30 mm

4шт.

15

E49941

PROTECTOR

GUARD

1шт.

16

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

18

E47877

STIRRUP

STRAP If So Equipped

3шт.

19

495-11081

WASHER,3/4", SAE

6шт.

20

425-1012

NUT,3/4"-10, G5

6шт.

21

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

22

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW 90 deg With : 23

1шт.

24

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER With : 25

1шт.

26

492-11100

LOCK WASHER,1"

1"

4шт.

27

495-11106

WASHER,1", SAE

4шт.

28

425-1016

NUT,1"-8, G5

4шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
