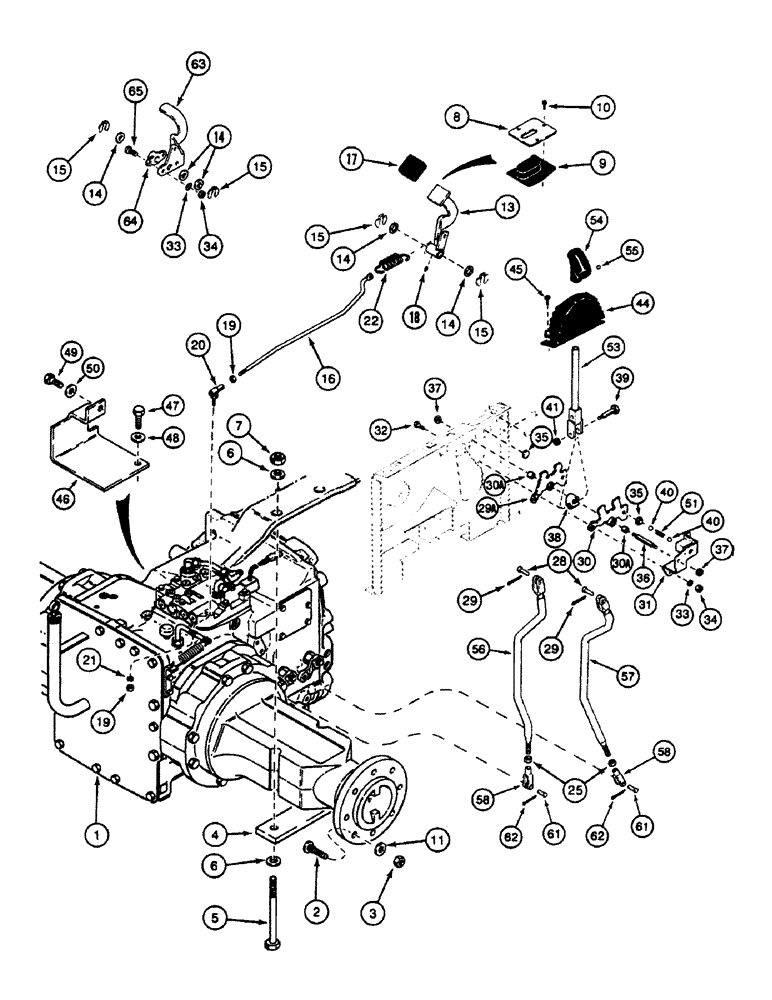

Запчасти Case 580SK (6-26) - TRANSAXLE AND DIFFERENTIAL LOCK (06) - POWER TRAIN

1

1995141C1

HOUSING ASSY.

1шт.

1

A183561

HOUSING

ASSY Order : 1995141C1,1995142C1 See Figure : 6-52

1шт.

2

3220372R2

STUD,M20 x 1.5 x 58mm, Cl 30

BOLT M20 x 40 mm

16шт.

3

829-11420

NUT,M20 x 1.5, Cl 10

M20

16шт.

4

D127596

PLATE

SPACER

2шт.

5

326-16152

BOLT,Hex, 1" - 8 x 9-1/2", Gr 8

4шт.

6

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

1-1/16"

8шт.

7

329-1016

NUT,1"-8, G8

4шт.

8

D146214

LARGE PLATE

PLATE, LARGE

1шт.

9

D129670

BOOT

1шт.

10

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

3шт.

11

138076A1

WASHER

16шт.

13

D142718

PEDAL

Differential Lock

1шт.

14

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

2шт.

15

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

2шт.

16

D141951

ROD

, Serial Range: -JJH0016903

1шт.

17

A75351

SKID/SHOE

COVER Use With : D142718

1шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Use with D142718

1шт.

19

425-116

NUT,3/8" - 24, Gr 5

2шт.

20

D38296

JOINT

3/8"

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

A190341

SPRING

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

1/2"

2шт.

28

427-6088

CLEVIS PIN,3/8" x 3/4"

3/8"

2шт.

29

132-26

COTTER PIN

3/32"x 3/4"

2шт.

29a

D147051

LARGE PLATE

PLATE, LARGE LEVER 1st and 2nd With : 30A

1шт.

30

D147052

LARGE PLATE

PLATE, LARGE LEVER 3rd and 4th With : 30A

1шт.

30a

D141259

BUSHING

1шт.

31

129095A1

SUPPORT

1шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

425-106

NUT,3/8"-16, Cl 5

4шт.

35

D146895

STOP

PLUG

2шт.

36

D142166

STUD

1шт.

37

131-666

LOCK NUT,3/8"-16, GB

2шт.

38

D136635

BLOCK

1шт.

39

D142167

BOLT,Shoulder, Hex, 3/8" - 16 - 12.70mm Dia x 45.75mm

1шт.

40

D146449

BALL

1/2"

2шт.

41

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

44

D143303

BOOT

1шт.

45

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

46

D142862

PROTECTOR

GUARD

1шт.

47

614-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 8.8, Full Thd

1шт.

48

895-11020

WASHER,M20 x 37 x 3

20 mm

1шт.

49

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

1шт.

50

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

51

D148684

SPRING

1шт.

53

E49751

LEVER

Not For Prestige

1шт.

53

D143833

LEVER

Prestige Version

1шт.

54

D147596

HANDLE

KNOB

1шт.

55

484-6316

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

5/16 x 10 mm

1шт.

56

E48764

ROD

1st and 2nd

1шт.

57

E48765

ROD

3rd and 4th

1шт.

58

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

61

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

62

432-612

COTTER PIN,3/32" x 3/4"

2шт.

63

E55094

PEDAL

, Start Serial: JJH0016904

1шт.

64

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

BEARING, Start Serial: JJH0016904

1шт.

65

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/16 x 25 mm, Start Serial: JJH0016904

2шт.
