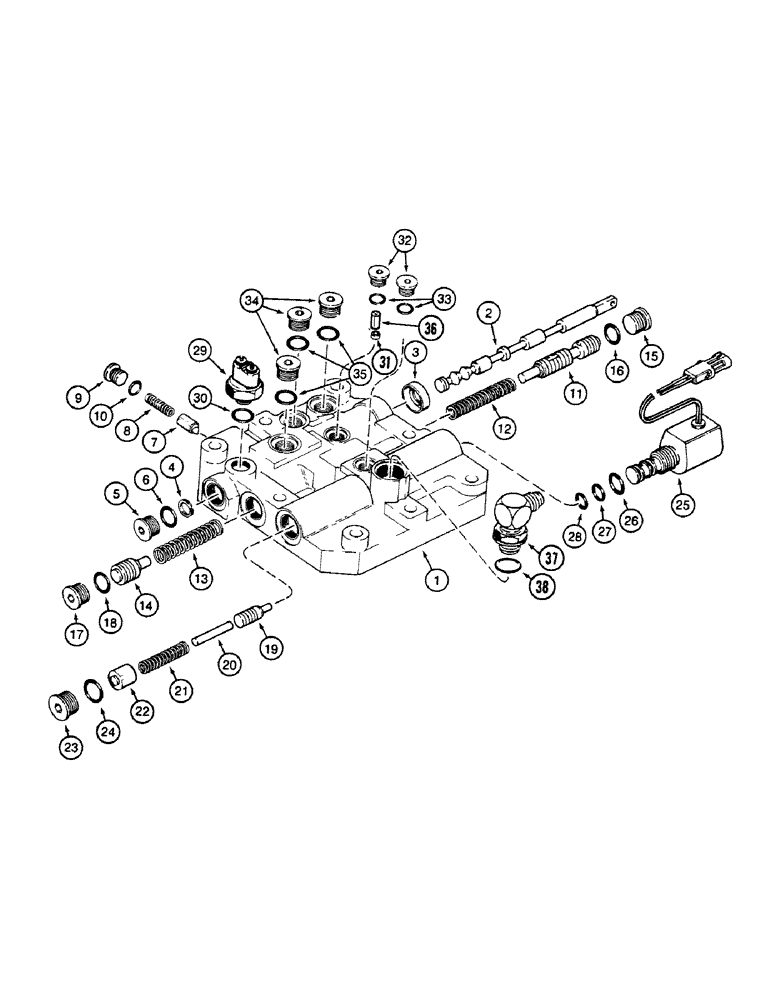

Запчасти Case 580SK (6-18) - TRANSAXLE ASSEMBLY POWER SHUTTLE VALVE ASSEMBLY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1343543C2
VALVE
ASSY Power Shuttle Consists of : 1 - 36
1шт.
1
BODY
1шт.
2
1343540C1
SPOOL
1шт.
3
A37558
SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk
1шт.
4
A175093
SNAP RING,#56, Ext, Spiral
1шт.
5
71100209
PLUG,Hex Soc, 3/4"-16 ORB
With 6
1шт.
6
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
7
1343539C1
SPOOL
PLUNGER
1шт.
8
1343535C1
SPRING
1шт.
9
9625178
PLUG,9/16" - 18 ORB
With 10
1шт.
10
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
11
1986755C1
SPOOL
1шт.
12
1343533C1
VALVE SPRING
Inner
1шт.
13
1343532C1
SPRING
Outer
1шт.
14
1343541C1
PISTON
1шт.
15
71100209
PLUG,Hex Soc, 3/4"-16 ORB
With 16
1шт.
16
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
18
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
19
1343537C1
SPOOL
1шт.
20
20133R1
DOWEL,5/16" x 1 3/4"
1шт.
21
1343534C1
SPRING
1шт.
22
A188228
PISTON
1шт.
24
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
25
1971438C3
SOLENOID
VALVE ASSY With : 26 - 28
1шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
27
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
1шт.
29
1983241C1
SWITCH
Neutral Start With : 30
1шт.
30
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
31
1343538C1
PLUG
1шт.
32
86529630
PLUG,Hex Soc, 3/8"-24 ORB
With 33
2шт.
33
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
2шт.
34
9625178
PLUG,9/16" - 18 ORB
With 35
3шт.
35
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
36
38-12008
LOCK PIN,5/16" x 1/2", Slotted
5/16 x 13 mm
1шт.
37
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
With 38
1шт.
38
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Выбрано товаров: 39
