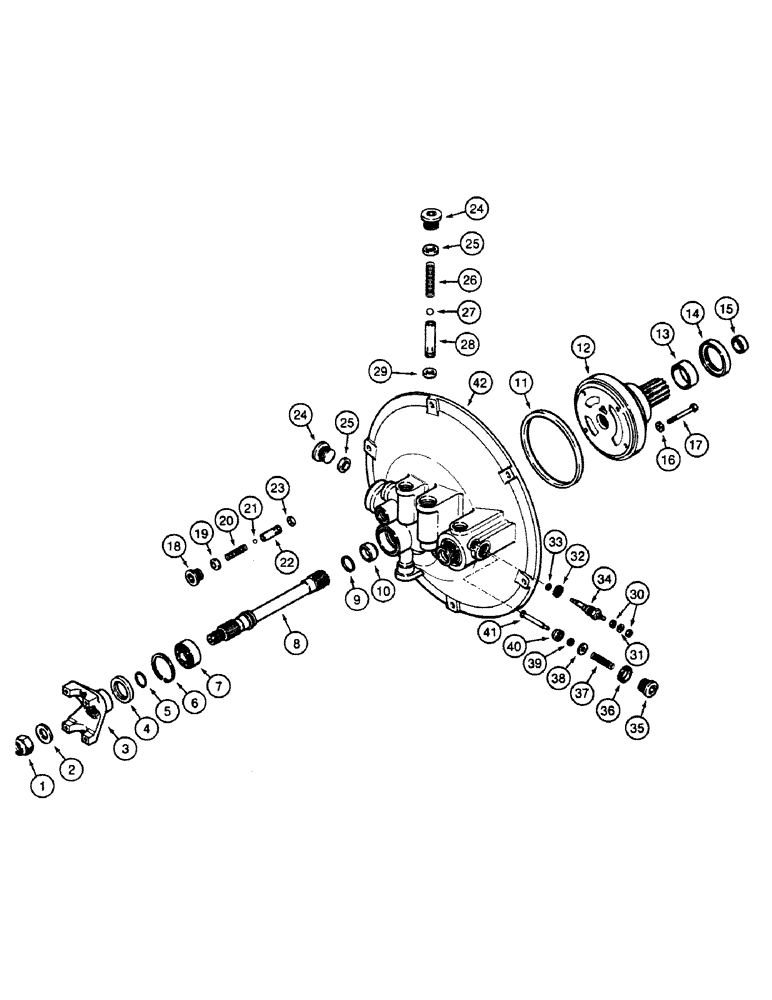

Запчасти Case 580SK (6-08) - TORQUE CONVERTER HOUSING, PUMP AND OUTPUT SHAFT (06) - POWER TRAIN

A186700

HOUSING ASSY.

Consists of : 1 - 42

1шт.

1

3173953R1

LOCK NUT,M20 x 2.5, Cl 8

1шт.

2

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

1шт.

3

A159663

YOKE

UNIVERSAL JOINT YOKE

1шт.

4

A175651

OIL SEAL,38.1mm ID x 52.44mm OD x 9.91mm Thk

O RING

1шт.

5

A159665

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

A31078

SNAP RING,2.062", Int, #206

1шт.

7

A31260

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

1шт.

8

A186527

SHAFT

1шт.

9

A158354

RING

SEAL

1шт.

10

A178745

SLEEVE

1шт.

11

238-5255

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

1шт.

12

A186674

PUMP

Assy With : 13 - 15

1шт.

119994A1R

REMAN-HYD PUMP

580SK LOADER BACKHOE EU, Reman for New PN A186674

1шт.

119994A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

A178375

BUSHING,47.66mm ID x 52.46mm OD x 15mm L

1шт.

14

A186708

OIL SEAL,47.57mm ID x 68.25mm OD x 8.33mm Thk

1шт.

15

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

826-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

4шт.

18

86625138

PLUG,7/18" - 14

With 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

A188918

VALVE SPRING

1шт.

21

211-104

BALL

10 mm dia

1шт.

22

A183025

VALVE

Cartridge Converter Relief

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

24

9841223

PLUG,1-1/16" - 12 ORB

With 25

2шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

A190345

SPRING

1шт.

27

211-102

BALL,1/2" Dia

13 mm dia

1шт.

28

A183336

VALVE

Cartridge Pump Relief

1шт.

29

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

N6755

PRESSURE SWITCH

ASSY Restriction, Electric Consists of : 30 - 34

1шт.

N6941

KIT

Repair, Consists of : 30 - 33

1шт.

30

129-667

NUT,#10-32, LH

1шт.

31

193-99

LOCK WASHER,Int Tooth, #10

1шт.

33

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

Inner

1шт.

34

INDICATOR Order : N6755

1шт.

A183347

VALVE

ASSY Bypass With : 35 - 41

1шт.

35

PLUG

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

SPRING

1шт.

38

WASHER

1шт.

39

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

40

POPPET

1шт.

41

GUIDE

1шт.

42

A186702

HOUSING

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
