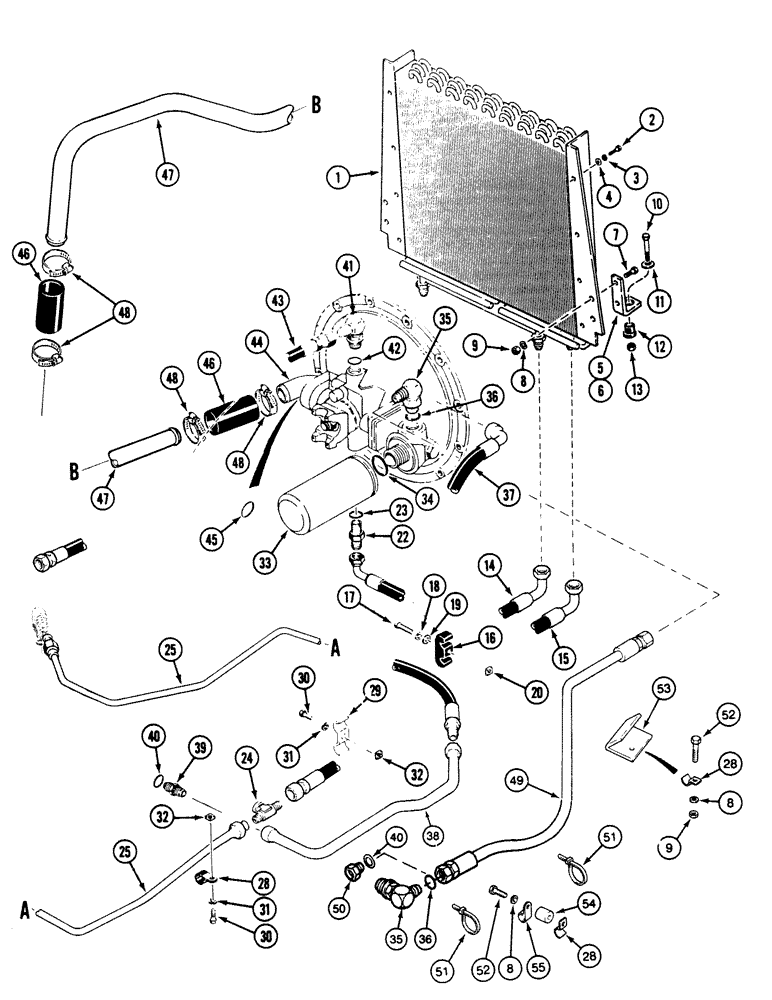

Запчасти Case 580SK (6-02) - SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

1

A184542

COOLER, OIL

Not For Prestige

1шт.

1

A184190

COOLER

Prestige Version See Figure : 8-014

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

3

492-11031

LOCK WASHER,5/16"

8шт.

4

495-11034

WASHER,5/16", SAE

8шт.

5

D131921

SUPPORT

Left

1шт.

6

D131920

SUPPORT

Right

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

5шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

2шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

2шт.

13

231-4116

NUT,3/8"-16, GB

3/8"

2шт.

14

E48132

HOSE

Inlet

1шт.

15

E48133

HOSE

Outlet

1шт.

16

D120613

CLAMP,20mm ID

1шт.

17

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adaptor with 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

218-585

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Fem Br

1шт.

25

D145952

PIPE

Outlet

1шт.

28

D140709

CLAMP

2шт.

29

D139956

CLAMP

1шт.

30

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

33

1346028C1

HYDRAULIC OIL FILTER

Assy With : 34

1шт.

34

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

1шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 36, Serial Range: -JJH0046110

1шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

, Start Serial: JJH0046111

2шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

D141502

HOSE

625 mm Outlet

1шт.

38

D145950

PIPE

1шт.

39

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adapter with 40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ELBOW 90 deg With : 42

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

124779A1

HYDRAULIC HOSE

1шт.

44

217-318

FITTING,45° Elbow, 1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

ELBOW 45 deg With : 45

1шт.

45

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

46

D125962

HOSE

100 mm

2шт.

47

D148679

PIPE

Suction

1шт.

48

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

49

D150280

HOSE

, Serial Range: -JJH0046110

1шт.

49

124779A1

HYDRAULIC HOSE

ASSY, Start Serial: JJH0046111

1шт.

50

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 40 If Equipped

1шт.

51

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

52

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

53

E49838

LARGE PLATE

PLATE, LARGE

1шт.

54

D76209

SPACER

1шт.

55

E49848

CLAMP

CLIP

1шт.
