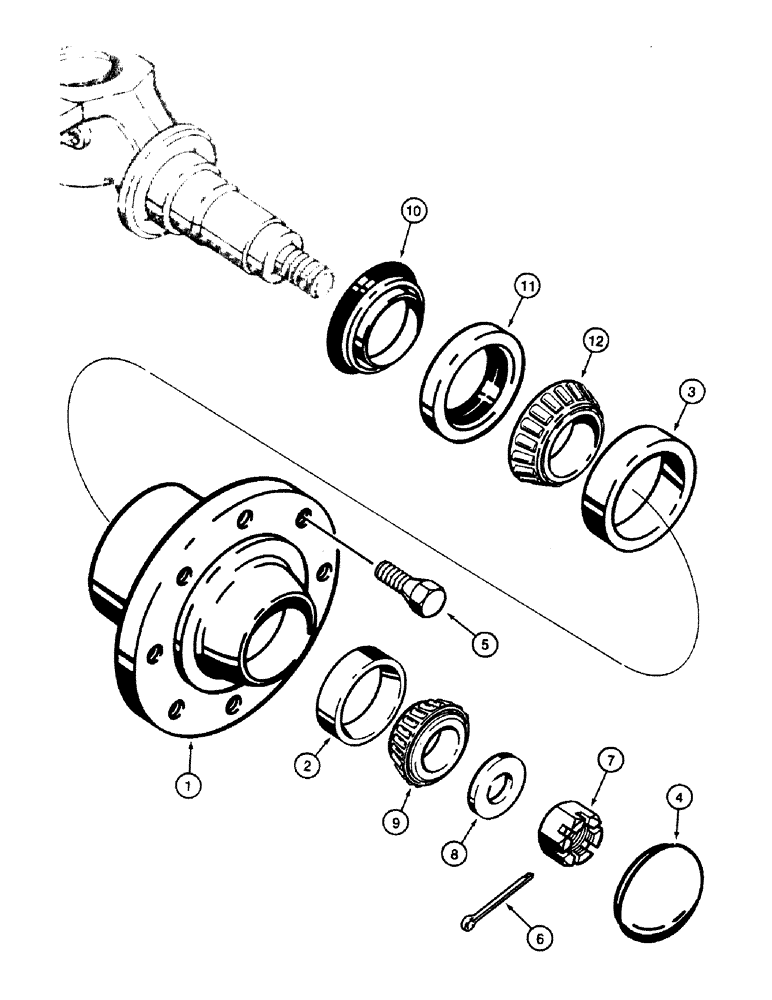

Запчасти Case 580SK (5-24) - FRONT WHEEL HUB AND BEARINGS 2WD (05) - STEERING

D75103

HUB

Assy Consists of : 1 - 3

2шт.

1

HUB Front

1шт.

2

G15214

BEARING CUP

Outer

1шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP Inner 3-35/64 OD

1шт.

4

D143405

CAP

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

16шт.

6

132-317

COTTER PIN,3/16" x 2"

2шт.

7

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

1-1/8"

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

1-1/8"

2шт.

9

G15215

ROLLER BEARING

Outer

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

2шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

2шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

Inner

2шт.
