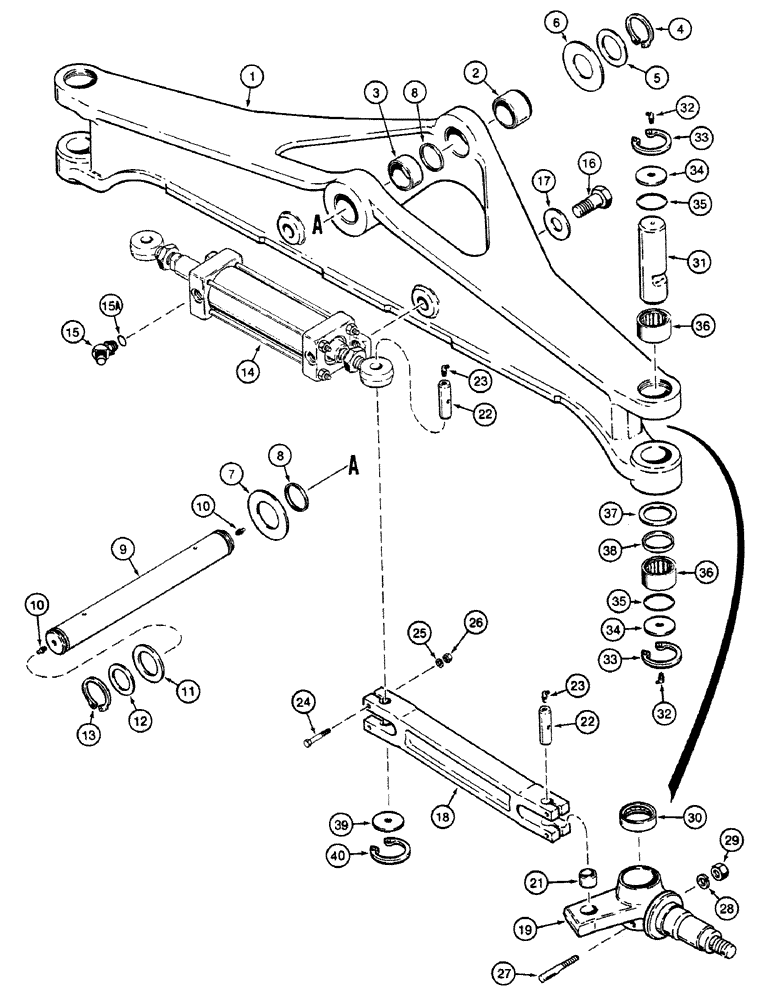

Запчасти Case 580SK (5-20) - FRONT AXLE AND SPINDLES 2WD (05) - STEERING

1

D138954

AXLE, FRONT

ASSY, Start Serial: JJH0013014

1шт.

D138954R

REMAN-FRT AXLE wo DL

580SK Start Serial: JJH0013014

1шт.

D138954C

CORE-FRONT AXLE

Return Number

1шт.

1

D148413

AXLE, FRONT

ASSY Front With : 2,3, Serial Range: -JJH0013015

1шт.

2

D137345

BUSHING,50.19mm ID x 60mm OD x 36mm L

Front

1шт.

3

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

30 mm Front

2шт.

4

800-44050

SNAP RING,M50, Ext

Front

1шт.

5

495-81282

WASHER,2 1/16" x 3" x .109"

(52 x 76 x 3 mm)

1шт.

6

D143408

WASHER,51.56mm ID x 101.6mm OD x 1.98mm Thk

51 x 102 x 2mm

1шт.

7

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

Front

1шт.

8

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

2шт.

9

D127445

PIVOT PIN,50mm OD x 444mm L

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

11

D143431

WASHER

1шт.

12

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

46 x 64 x 3 mm

1шт.

13

103-16175

SNAP RING,#175, Ext

Rear

1шт.

14

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

, Start Serial: JJH0013014

1шт.

14

1986518C2

STEERING CYLINDER

See Figure : 5-18, Serial Range: -JJH0013015

1шт.

15

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

With 15A

2шт.

15a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

13-1838

BOLT,Hex, 1-1/8" - 7 x 2-3/8", Gr 5, Full Thd

No Longer Used, For Service Order 446107A1 Bolt

2шт.

16

446107A1

BOLT (MACHINE),Hex, 1 1/8" - 7 x 2 3/8", Gr 5

2шт.

17

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

2шт.

18

D123806

LINK, CONNECTING

Steering

2шт.

19

D125340

SPINDLE

, Start Serial: JJH0013014

1шт.

19

D123378

SPINDLE

Right With : 21, Serial Range: -JJH0013015

1шт.

19

D125341

SPINDLE

, Start Serial: JJH0013014

1шт.

19

D123681

SPINDLE

Left With : 21, Serial Range: -JJH0013015

1шт.

21

D127507

BUSHING,22.33mm ID x 32.25mm OD x 25mm L

1шт.

22

D123682

PIN

, Start Serial: JJH0013014

4шт.

22

D150155

PIN,22.2mm OD x 89mm L

, Serial Range: -JJH0013015

4шт.

23

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

4шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

25

492-11038

LOCK WASHER,3/8"

8шт.

26

425-106

NUT,3/8"-16, Cl 5

8шт.

27

D57486

PIN

2шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

29

425-118

NUT,1/2"-20, G5

2шт.

30

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

2шт.

31

D123865

PIVOT PIN,50.8mm OD x 168.91mm L

Front

2шт.

32

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

4шт.

33

A27463

SNAP RING,2.375", Int, #237

4шт.

34

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER

4шт.

35

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

4шт.

36

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

4шт.

37

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

2шт.

38

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

2шт.

39

495-11094

WASHER,7/8", SAE

15/16 x 1-3/4 x 1/8

8шт.

40

D71829

SNAP RING,#87, Ext

8шт.
