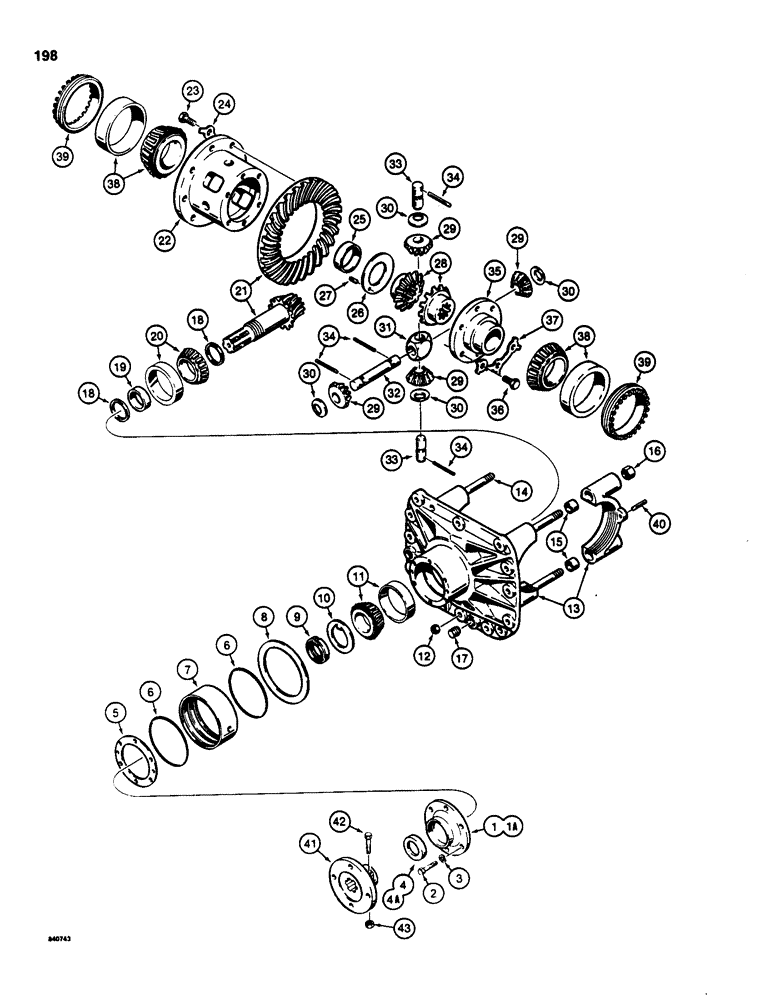

Запчасти Case 580SD (198) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - front drive, includes Figures 192-198, Includes: Ref. 1 - 43

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - rear, 55 mm lip ID, D120346 axle, no longer available, see service below

1шт.

When replacing Ref. 1 cover, you must also replace Ref. 4 seal with Ref. 1A cover and Ref. 4A seal.

1шт.

1a

N8894

COVER

- rear, 50 mm lip ID, D127422 axle

1шт.

2

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

3

892-1108

LOCK WASHER,M8

6шт.

4

NSS

NOT SOLD SEPARAT

SEAL - pinion shaft, 55 mm OD x 35 mm ID x 10 mm wide, D120346 axle, no longer available, see service below

1шт.

When replacing Ref. 1 cover, you must also replace Ref. 4 seal with Ref. 1A cover and Ref. 4A seal.

1шт.

4a

N8895

OIL SEAL

- pinion shaft, 50 mm OD x 35 mm ID x 10 mm wide, D127422 axle

1шт.

5

K965364

GASKET

- cover

1шт.

6

K965267

O-RING,0.07" Thk x 4.489" ID

- rear pivot

2шт.

7

K965265

BUSHING

- rear pivot

1шт.

8

K965264

WASHER

- rear pivot

1шт.

9

N7537

RING

NUT - pinion shaft

1шт.

10

K261065

LOCK WASHER

- special

1шт.

11

K965358

BEARING

TAPERED ROLLER BEARING - outer

1шт.

12

K965256

NUT

- hex, 12 mm

10шт.

N7528

SUPPORT

CARRIER ASSEMBLY - differential

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

14

K965257

STUD

- differential carrier

4шт.

15

K965259

RING

SLEEVE - differential carrier

4шт.

16

K965250

NUT

- differential carrier

4шт.

17

K965263

PLUG

- differential carrier

2шт.

18

K965280

SHIM,2.50mm Thk

1шт.

18

K965281

SHIM,2.55mm Thk

1шт.

18

K965282

SHIM,2.60mm Thk

1шт.

18

K965283

SHIM,2.65mm Thk

1шт.

18

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

1шт.

18

K965285

SHIM,2.75mm Thk

1шт.

18

K965286

SHIM,2.85mm Thk

1шт.

18

K965287

SHIM,2.85mm Thk

1шт.

18

K965288

SHIM,2.90mm Thk

1шт.

18

K965289

SHIM,2.95mm Thk

1шт.

18

K965290

SPACER

SHIM - 3.00 mm

1шт.

18

K965291

SHIM,3.05mm Thk

1шт.

18

K965292

SHIM,3.10mm Thk

1шт.

18

K965293

SHIM,3.15mm Thk

1шт.

18

K965294

SHIM,3.20mm Thk

1шт.

18

K965295

SHIM,3.25mm Thk

1шт.

18

K965296

SHIM,3.30mm Thk

1шт.

18

K965297

SHIM,3.35mm Thk

1шт.

18

K965298

SHIM,3.40mm Thk

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

SPACER - bearing

1шт.

20

K965357

BEARING

TAPERED ROLLER BEARING - inner

1шт.

21

N7535

PINION

GEAR SET - ring and pinion

1шт.

If pinion is not stamped with correct number to be used in setup procedure, the parts with the stamped +/- 0 can be used. According to pinion drawing 113716, the dimension used in the equation should be 112.000.

1шт.

22

K965351

HOUSING

CAGE - differenital

1шт.

23

K965356

BOLT,Hex, M12 x 1.25 x 25, 8.8, Full Thd

- hex head, 12 mm, cage to ring gear

8шт.

24

K965355

PLATE, LOCKING

LOCK PLATE - cage bolts

4шт.

25

K965347

BUSHING

- cage to side gear

1шт.

26

K965346

WASHER

- cage, inner

1шт.

27

K965348

PIN

DOWEL PIN -, Serial Range: washer-cage

1шт.

28

E43051

GEAR

SIDE GEAR - differential

2шт.

29

E43052

GEAR

PINION GEAR - differential

4шт.

30

K965350

WASHER

- pinion gear

4шт.

31

K965353

BLOCK

- support

1шт.

32

K965352

PIN

SHAFT - long

1шт.

33

K965354

PIN

SHAFT - short

2шт.

34

K965349

PIN

DOWEL PIN - differential shafts

4шт.

35

K965343

PLATE

COVER - differential

1шт.

36

K965341

SCREW

BOLT - hex head, 10 mm, cover

6шт.

37

K965342

RETAINER

LOCK PLATE - cover bolts

2шт.

38

K965339

BEARING

TAPERED ROLLER BEARING - side gears

2шт.

39

K965338

LOCK

RING - bearing adjustment

2шт.

40

K965340

SPLIT PIN/SAFETY PIN

PIN - adjustment ring lock

2шт.

41

K956954

SPLINED COUPLING

FLANGE - drive shaft

1шт.

42

K965415

BOLT,M10 x 1.25 x 60mm

BOLT - hex head, 10 mm - 1.25 x 60 mm

2шт.

43

K965414

NUT

- hex, 10 mm - 1.25

2шт.
