Запчасти Case 580SD (194) - FRONT DRIVE AXLE, SWIVEL HOUSINGS (06) - POWER TRAIN

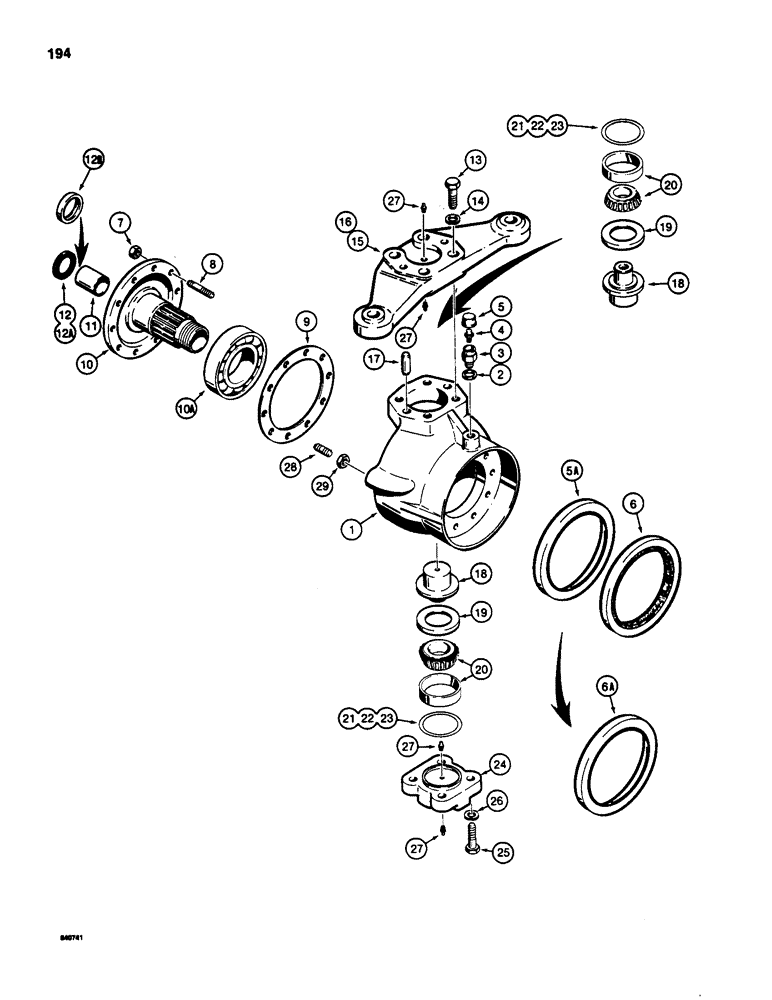

Схема запчастей Case 580SD - (194) - FRONT DRIVE AXLE, SWIVEL HOUSINGS (06) - POWER TRAIN
6a
13
26
29
1
11
9
23
19
16
12a
6
7
20
22
22
27
18
15
10
2
17
28
5a
10a
24
27
12
14
3
27
18
5
19
21
21
8
27
12b
21
25
4
20

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

AXLE ASSEMBLY - front drive, includes Figures 182-190, Includes: Ref. 1 - 29

1шт.

1

N7523

STEERING KNUCKLE

SWIVEL HOUSING - axle ends

2шт.

2

K957001

SEAL

- breather protector

2шт.

3

K957000

GUARD

PROTECTOR - breather

2шт.

4

K965231

BREATHER

- swivel housing

2шт.

5

K260136

COVER

CAP - breather cover

2шт.

5a

NSS

NOT SOLD SEPARAT

SEAL - oil, inner, 170 mm OD x 140 mm ID x 15 mm wide, used with Ref. 6 felt seal on D120346 axle, no longer available, see service below

2шт.

When replacing Ref. 5A lip seal, you must also replace Ref. 6 felt seal with Ref. 6A oil seal above and Ref. 10 wear ring on Figure 196.

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - felt, outer, 170 mm OD x 149 mm ID x 10 mm wide, used with Ref. 5A on D120346 axle, no longer available, see service below

1шт.

When replacing Ref. 5A lip seal, you must also replace Ref. 6 felt seal with Ref. 6A oil seal above and Ref. 10 wear ring on Figure 196.

1шт.

6a

N8898

OIL SEAL

- oil, housing, 170 mm OD x 145 mm ID x 16 mm wide, D127422 axle, used with 10 wear ring on Figure 196

2шт.

7

K965250

NUT

- hub stud

20шт.

8

K965249

STUD

- hub to swivel housing

20шт.

9

K965237

GASKET

- hub to swivel housing

2шт.

10

K965236

SHAFT

SPINDLE - planetary

2шт.

10a

K965321

BALL BEARING

- small

2шт.

11

K965322

BUSHING

- spindle

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - spindle, 62 mm OD x 40 mm ID x 10 mm wide, without sleeve, D120346 axle, no longer available, see service below

2шт.

When replacing Ref. 12 seal, you must order both Refs. 12A seal and 12B sleeve.

1шт.

12a

N8897

OIL SEAL

SEAL - spindle, 55 mm OD x 40 mm ID x 10 mm wide, used with Ref. 12B

2шт.

12b

N8892

SLEEVE

- seal, 62 mm OD x 55 mm ID x 11 mm wide, used with Ref. 12A

2шт.

13

N7552

BOLT,M14 x 50mm

BOLT - steering lever

8шт.

14

K965248

WASHER

- lock, 14 mm

8шт.

15

N7550

ARM

STEERING LEVER - right-hand

1шт.

16

N7551

ARM

STEERING LEVER - left-hand

1шт.

17

K965275

PIN

DOWEL PIN - steering lever

4шт.

18

N7532

PIN,60mm OD x 57mm L

- swivel

4шт.

19

N7533

SEALING RING

- pin

4шт.

20

N7534

ROLLER BEARING,30mm ID x 62mm OD x 17.25mm W

TAPERED ROLLER BEARING - swivel pin

4шт.

21

K965243

SHIM,0.1mm Thk

1шт.

22

K965244

SHIM,0.3mm Thk

1шт.

23

K965245

SHIM,0.5mm Thk

1шт.

24

K965242

COVER

CAP - lower swivel pin

2шт.

25

K965247

BOLT,M14 x 35mm

BOLT - hex head, 14 mm, cover

8шт.

26

K965248

WASHER

- lock, 14 mm

8шт.

27

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - steering levers and covers

8шт.

28

N7527

ADJUSTMENT SCREW

STUD - steering stop

2шт.

29

K965369

JAM NUT

- hex, 12 mm

2шт.
