Запчасти Case 580SD (188) - FRONT DRIVE AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

D94017

DRIVE SHAFT

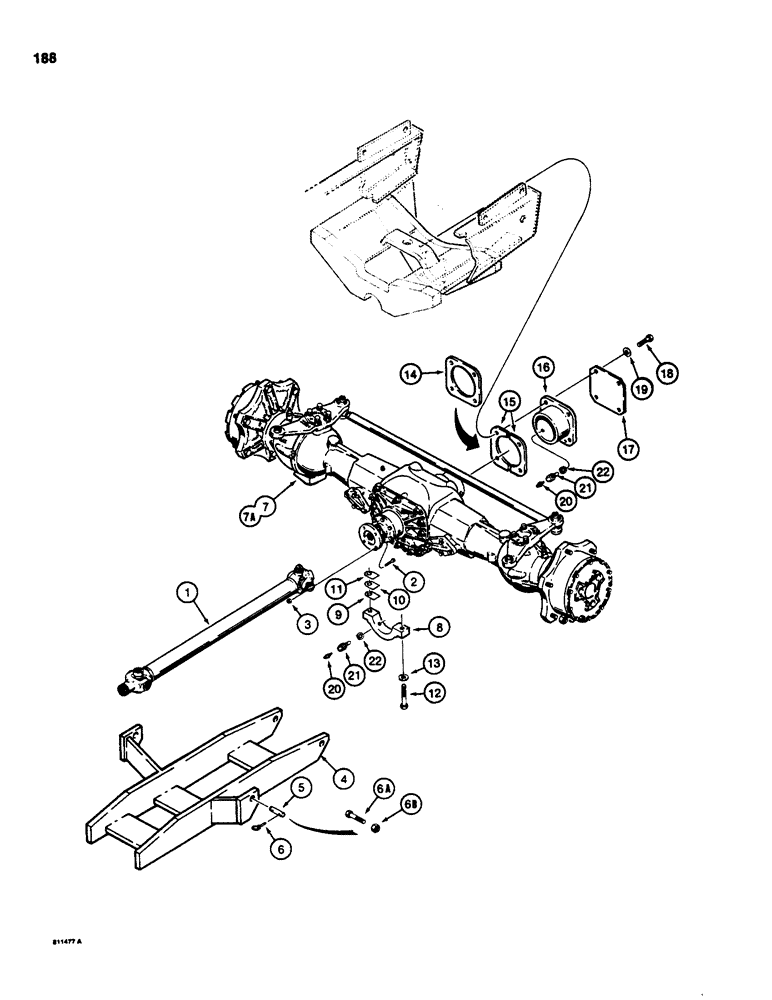

- front wheel drive, parts list Figure 190

1шт.

2

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

- hex head, 7/16" - 20 NF x 1-1/2"

4шт.

3

131-1247

LOCK NUT,7/16"-20, GC

NUT - hex, self-locking, 7/16" - 20 NF, plated

4шт.

4

D125602

GUARD

- drive shaft

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - guard to frame, if used, order Refs. 6A and 6B

4шт.

6

A30338

PIN

- self-locking, if used

8шт.

6a

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

If used Hex, 1"-8 x 2 1/2", G5, Full Thd

4шт.

6b

131-20

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC, if used

4шт.

7

D120346

AXLE

ASSEMBLY - front drive, no longer available, for service order D127422 front drive axle, parts list Figures 192-198

1шт.

7a

D127422

AXLE

ASSEMBLY - front drive, parts list Figures 192-198

1шт.

D126549

KIT

- bearing cap, replaces production axle caps, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - axle mounting, rear

1шт.

9

D126551

SHIM,0.3mm Thk

Cap 0.3mm Thk

1шт.

10

D126552

SHIM,0.4mm Thk

Cap 0.4mm Thk

1шт.

11

D126553

SHIM,0.5mm Thk

Cap 0.5mm Thk

1шт.

12

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex head, 3/4" - 10 NC x 3-1/2", grade 8

2шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

2шт.

14

NSS

NOT SOLD SEPARAT

SHIM front, full size, order (2) D122148 shims, see below

1шт.

Models before tractor PIN 9057682 did not use shims, Ref. 14 or 15. Shims should not be used on these machines unless Ref. 16 cap is replaced. All new D120801 replacement caps must be used with two D122148 shims.

1шт.

15

D122148

SHIM,0.5mm Thk

Front, See below 0.5mm Thk

2шт.

Models before tractor PIN 9057682 did not use shims, Ref. 14 or 15. Shims should not be used on these machines unless Ref. 16 cap is replaced. All new D120801 replacement caps must be used with two D122148 shims.

1шт.

16

D120801

FLANGE

CAP - front, see below

1шт.

Models before tractor PIN 9057682 did not use shims, Ref. 14 or 15. Shims should not be used on these machines unless Ref. 16 cap is replaced. All new D120801 replacement caps must be used with two D122148 shims.

1шт.

17

D120332

COVER

PLATE - cover, front

1шт.

18

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

4шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

21

D93588

FITTING

ADAPTER - grease fitting

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
