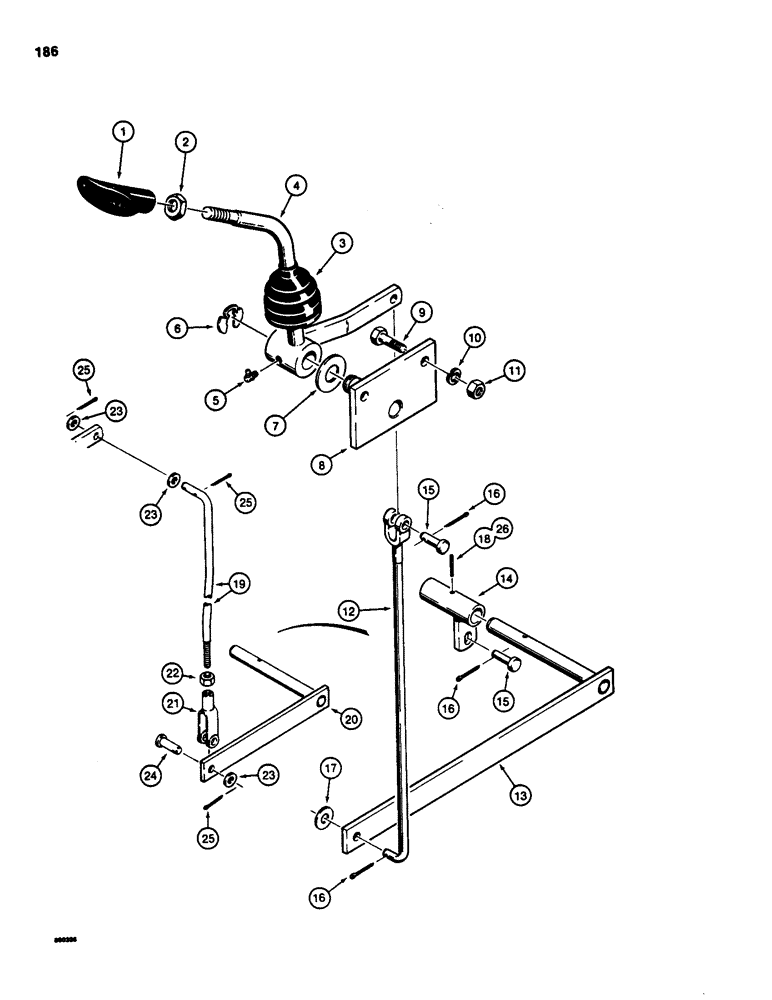

Запчасти Case 580SD (186) - FRONT DRIVE AXLE CONTROL (06) - POWER TRAIN

1

D120758

HANDLE

- T-grip

1шт.

2

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

3

D86664

BOOT

- lever

1шт.

4

D121850

LEVER

- shift

1шт.

5

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF

1шт.

6

D95097

RING, SNAP

RING - retaining

1шт.

7

195-545

WASHER,3/4", SAE

- flat, 3/4", plated

1шт.

8

D121853

BRACKET

- lever

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

D94053

ROD

- shift, for service order D135001 kit, see below

1шт.

13

D94058

LEVER

- shift, 15-5/16" (390 mm) long, no longer used, for service order D135001 kit, see below

1шт.

14

D94059

LEVER

- pivot

1шт.

15

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

18

135-146

GROOVED PIN,3/16" x 1 1/4", Type A, Hardened

1шт.

D135001

LEVER

KIT - service, shift rod and shift lever, Includes: Ref. 19 - 26

1шт.

19

D134615

ROD

- shift

1шт.

20

D136233

LEVER

- shift, 7-1/16" (180 mm) long

1шт.

21

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

1шт.

22

129-123

NUT,3/8"-24, G5

1шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

3шт.

24

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

25

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

26

135-146

GROOVED PIN,3/16" x 1 1/4", Type A, Hardened

1шт.
