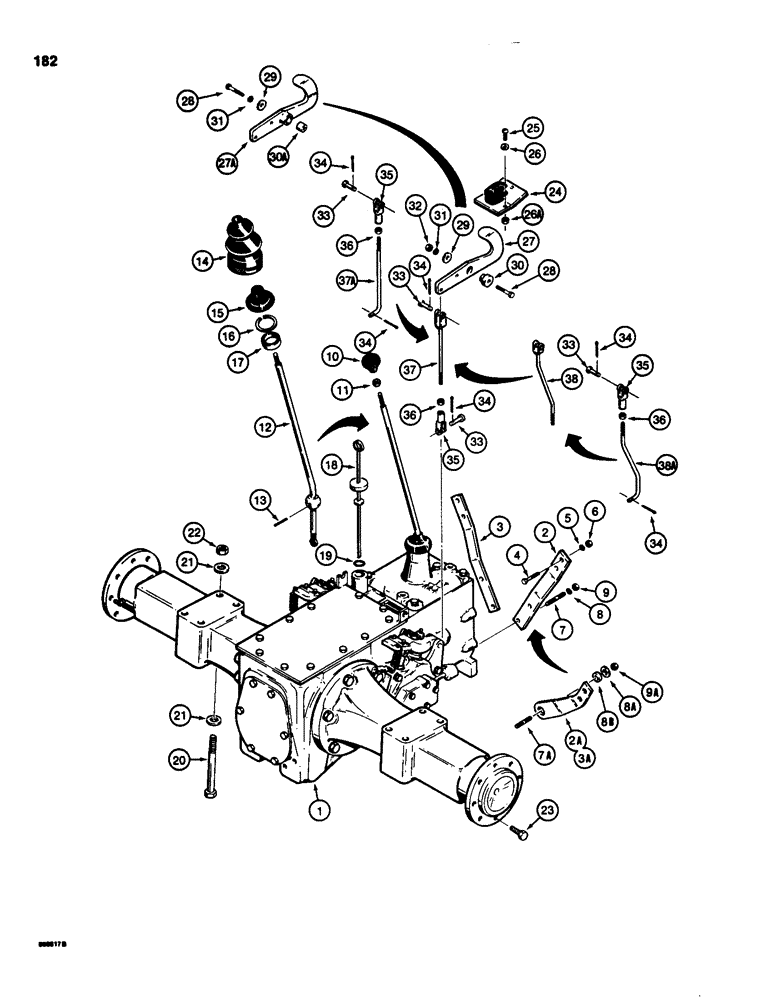

Запчасти Case 580SD (182) - TRANSAXLE AND DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A154249

TRANSAXLE - two wheel drive without turbocharger, see Figures 202-244

1шт.

1

A156240

AXLE

TRANSAXLE - four wheel drive without turbocharger, see Figures 202-244

1шт.

1

A153801

TRANSAXLE - two wheel drive with turbocharger, see Figures 202-244

1шт.

1

A156410

AXLE

TRANSAXLE - four wheel drive with turbocharger, see Figures 202-244

1шт.

2

D90452

SUPPORT

- right-hand, two wheel drive models

1шт.

2a

D122704

SUPPORT

- right-hand, four wheel drive models, when installing on models without Ref. 8B, also order and replace Refs. 8A and 8B

1шт.

3

D90453

SUPPORT

- left-hand, two wheel drive models

1шт.

3a

D122705

SUPPORT

- left-hand, four wheel drive models, when installing on models without Ref. 8B, also order and replace Refs. 8A and 8B

1шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

D69763

STUD

- 1/2" - 20 NF, two wheel drive models

4шт.

7a

A50237

STUD

- 5/8" - 11 NC x 2-1/2", four wheel drive models

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 2WD models 1/2"

4шт.

8a

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8" hardened, four wheel drive models

2шт.

8b

D122706

BUSHING

- four wheel drive models

2шт.

9

129-125

NUT,1/2"-20, G5

2WD models 1/2"-20, G5

4шт.

9a

129-183

NUT,5/8"-11, G8

4WD models 5/8"-11, G8

2шт.

10

D69105

KNOB

- shift lever

1шт.

11

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

12

A154286

LEVER

SHIFT LEVER - transaxle, Includes: Ref. 13

1шт.

13

A156515

PIN

- groove, 1/8" x 1-1/4"

1шт.

14

D86664

BOOT

- shift lever at floor plate

1шт.

15

A26956

DUST CAP

COVER - rubber, shift lever

1шт.

16

A26836

RING, SNAP

RETAINING RING - seat

1шт.

17

A7923

SEAT

- shift lever

1шт.

18

A154968

DIPSTICK

- transaxle, Includes: Ref. 19

1шт.

19

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- dipstick

1шт.

20

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex head, 3/4" - 10 NC x 8", plated

8шт.

21

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

16шт.

22

129-108

NUT,3/4"-10, G5

8шт.

23

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

- lug, rear

16шт.

24

D89325

BOOT

- differential lock lever, if used

1шт.

25

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

- Phillips, pan head, No. 10 - 32 NF x 5/8"

3шт.

26

195-513

WASHER,#10

- flat, No. 10, plated

3шт.

26a

D123827

NUT

- special

3шт.

27

D83664

PEDAL

- differential lock, metal, if used

1шт.

27a

D124890

PEDAL

- differential lock, plastic, if used

1шт.

28

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

29

D64050

WASHER

- flat, 1/2", special

1шт.

30

D75648

SPACER

- pedal, used with Ref. 27 only

1шт.

30a

D122241

SPACER

- pedal, used with Ref. 27A only

1шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

If used 1/2"-13, G5

1шт.

33

141-54

CLEVIS PIN,3/8" x 1 1/16"

differential lock rod 3/8" x 1 1/16"

1-2шт.

34

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

35

213-41

ADJUSTABLE CLEVIS,3/8"-24

differential lock rod, metal, plated 3/8"-24

1шт.

36

129-123

NUT,3/8"-24, G5

1шт.

37

D83663

ROD

- differential lock, models without turbocharger, if used

1шт.

37a

D93489

ROD

- differential lock, models without turbocharger, if used

1шт.

38

D83902

ROD

- differential lock, models with turbocharger, if used

1шт.

38a

D93488

ROD

- differential lock, models with turbocharger, if used

1шт.
