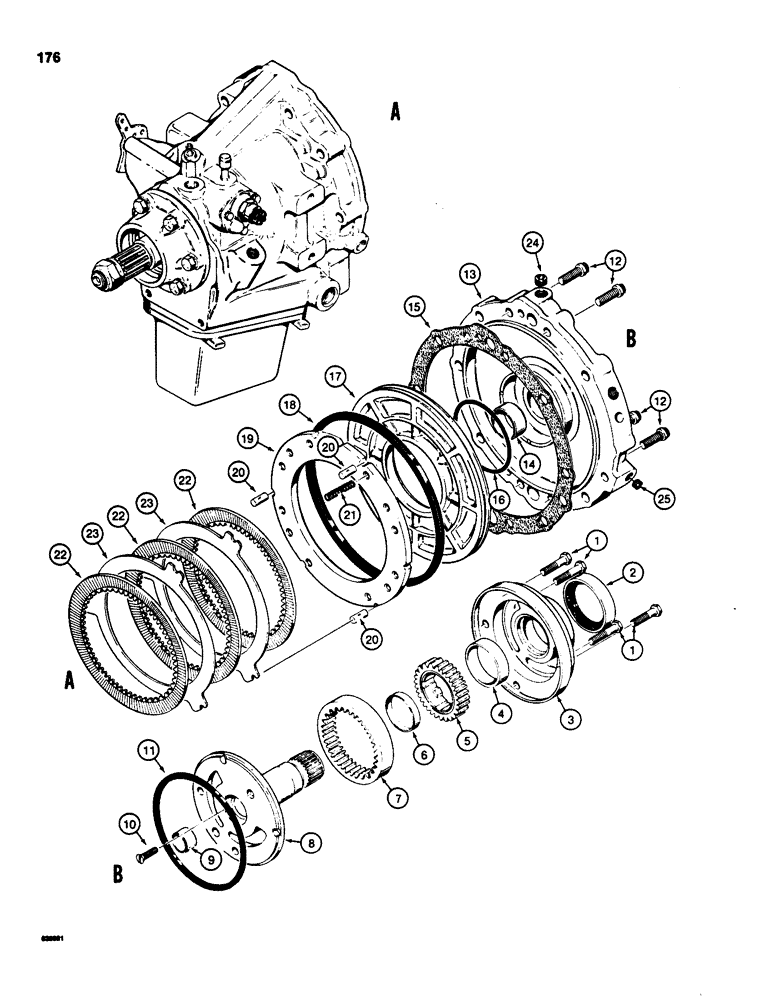

Запчасти Case 580SD (176) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
POWER SHUTTLE ASSEMBLY - parts list Figures 168-176, Includes: Ref. 1 - 25
1шт.
1
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
4шт.
R29995
PUMP
CHARGING PUMP ASSEMBLY - power shuttle, Includes: Ref. 2 - 10
1шт.
2
N8071
OIL SEAL,49.23mm ID x 68.53mm OD x 8.23mm Thk
- oil
1шт.
3
NSS
NOT SOLD SEPARAT
BODY - charging pump, Includes: Ref. 4
1шт.
4
D50071
BUSHING
- charging pump
1шт.
5
NSS
NOT SOLD SEPARAT
DRIVE GEAR - charging pump, Includes: Ref. 6
1шт.
6
NSS
NOT SOLD SEPARAT
BUSHING - charging pump gear drive
1шт.
7
NSS
NOT SOLD SEPARAT
DRIVEN GEAR - charging pump
1шт.
8
NSS
NOT SOLD SEPARAT
SUPPORT - torque converter, Includes: Ref. 9
1шт.
9
NSS
NOT SOLD SEPARAT
BUSHING - torque converter support
1шт.
10
171-100
SCREW,Sl Flat Hd, #10 - 24 x 3/4"
- No. 10 - 24 NC x 3/4", special
1шт.
11
L30487
GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk
- charging pump
1шт.
12
166-46
12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8
SCREW - Ferry head, 3/8" - 16 NC x 1-1/4"
4шт.
D50022
ADAPTER
COVER ASSEMBLY - power shuttle, Includes: Ref. 13 and 14
1шт.
13
NSS
NOT SOLD SEPARAT
COVER - power shuttle
1шт.
14
D50074
BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L
- cover
1шт.
15
D50033
GASKET,0.58mm Thk
-, Serial Range: cover-housing
1шт.
16
D50034
O-RING,0.139" Thk x 3.484" ID
O-RING - small
1шт.
17
D50035
PISTON
- reverse clutch
1шт.
18
D50036
SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk
RING - piston seal, square section
1шт.
19
D50037
PLATE
- pressure, reverse clutch
1шт.
20
D50038
PIN
DOWEL PIN - pressure plate
3шт.
21
D50039
SPRING
- pressure plate
11шт.
22
D50040
PLATE
DISC - friction, internal tooth
3шт.
23
D50041
CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk
DISC - metal, external flange
2шт.
24
221-841
PLUG
- hex socket head, 1/4" NPT
1шт.
25
221-849
PLUG,Hex Soc, 1/8"-27
- hex socket head, 1/8" NPT
2шт.
Выбрано товаров: 28
