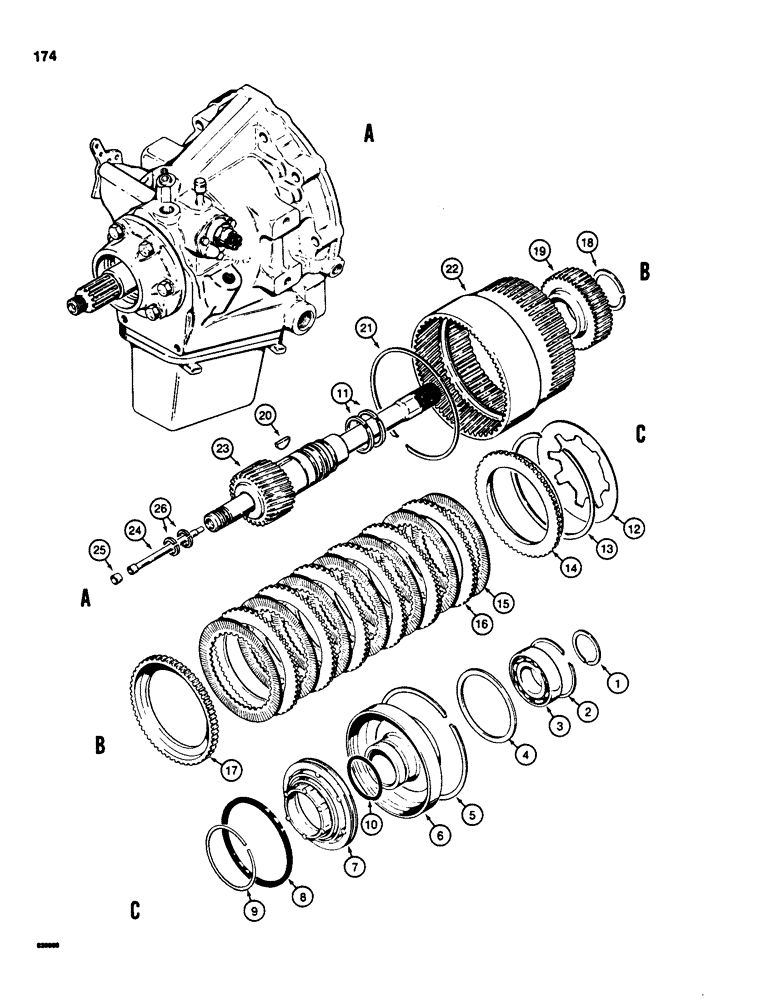

Запчасти Case 580SD (174) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
POWER SHUTTLE ASSEMBLY - parts list Figures 168-176, Includes: Ref. 1 - 26
1шт.
1
D50042
RING
SNAP RING - bearing retaining, small
1шт.
2
D50043
RING
SNAP RING - bearing retaining, large
1шт.
3
D50044
BALL BEARING
- clutch cylinder
1шт.
4
D50045
WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk
THRUST WASHER - forward clutch
1шт.
5
D50046
RING
- ring gear retaining
1шт.
6
D50075
CYLINDER
- forward clutch
1шт.
7
D70670
PISTON
- forward clutch
1шт.
8
D50077
RING
- piston
1шт.
9
D50078
RING,3.17mm Thk x 77.22mm ID, 40 Duro
- piston
1шт.
10
D50079
O-RING,0.139" Thk x 2" ID
O-RING - cylinder
1шт.
11
D50080
RING,40.25mm ID x 44.36mm OD x 2.38mm Thk
- sealing
2шт.
12
D50047
BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk
- Belleville
1шт.
13
D50048
CIRCLIP
RING - retaining, pressure plate
1шт.
14
D50081
PLATE,139.12mm OD
- pressure, front
1шт.
15
D70672
PLATE
DISC - friction, internal tooth
7шт.
16
D50083
PLATE
DISC - friction, external tooth
6шт.
17
D50084
PLATE,139.45mm OD
- pressure, rear
1шт.
18
D50049
RING
- clutch hub retaining
1шт.
19
D75853
HUB
- clutch
1шт.
20
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
Input shaft #15, 1/4" x 1", HT
1шт.
21
D50051
SNAP RING
RING - .050" (1.270 mm) to .054" (1.372 mm) thick
1шт.
21
D78397
RING
- .062" (1.575 mm) to .066" (1.676 mm) thick
1шт.
21
D50052
RING
- .074" (1.880 mm) to .078" (1.981 mm) thick
1шт.
21
D78398
RING
- .084" (2.134 mm) to .088" (2.235 mm) thick
1шт.
21
D50053
RING
- .096" (2.438 mm) to .100" (2.540 mm) thick
1шт.
22
D50054
GEAR
RING GEAR - power shuttle
1шт.
D70666
GEAR
INPUT SHAFT ASSEMBLY - power shuttle, Includes: Ref. 23 - 25
1шт.
23
NSS
NOT SOLD SEPARAT
INPUT SHAFT - drive
1шт.
24
N7043
TUBE
- forward clutch supply
1шт.
25
D50086
PLUG
- shaft end
1шт.
26
D70668
RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk
- sealing
2шт.
Выбрано товаров: 32
