Запчасти Case 580SD (162) - TORQUE CONVERTER AND HOUSING (06) - POWER TRAIN

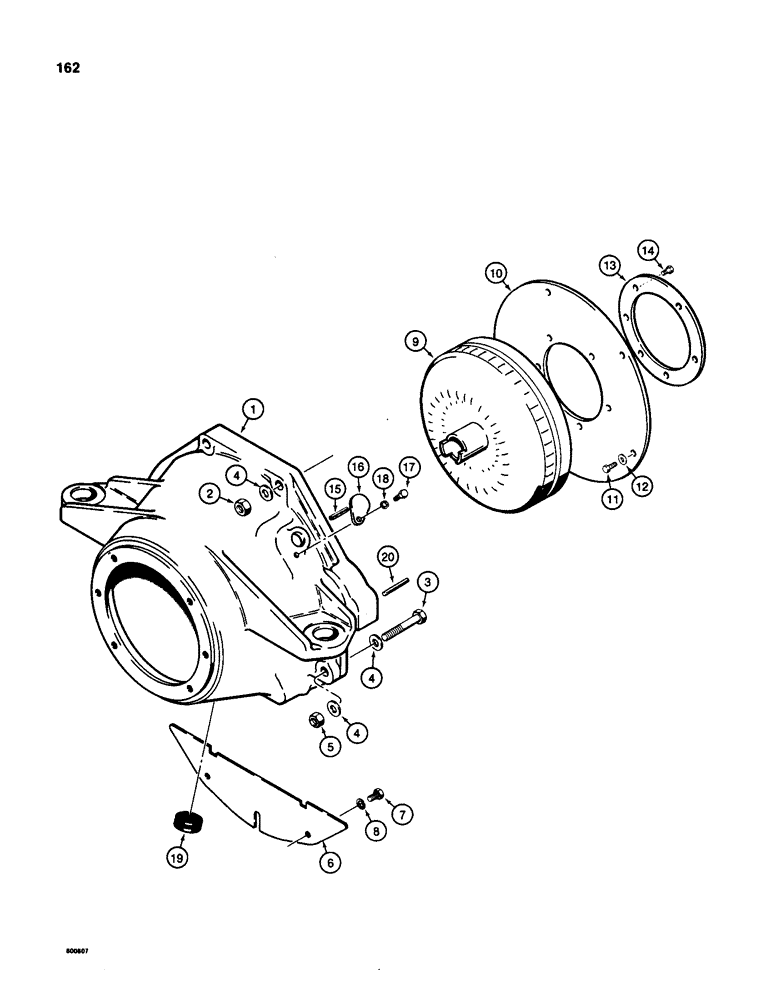

Схема запчастей Case 580SD - (162) - TORQUE CONVERTER AND HOUSING (06) - POWER TRAIN
5
1
2
4
20
9
10
17
16
11
3
12
8
4
15
14
7
13
6
4
19
18

Артикул

Название

Примечание

Количество

1

D63263

HOUSING

HOUSING - torque converter

1шт.

2

129-127

NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

3

D76605

BOLT

BOLT - hex head, 5/8" - 18 NF x 3-1/2"

2шт.

4

A35147

WASHER

WASHER - flat, 5/8", hardened

6шт.

5

129-127

NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

6

D68670

COVER ASSY

COVER - flywheel

1шт.

7

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1/2"

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

D81693

CONVERTER

TORQUE CONVERTER - transmission

1шт.

9

103293A1R

REMAN-TORQUE CONVERT

ER Remanufactured, Torque Converter

1шт.

9

103293A1C

CORE-TORQUE CONVERTR

Core Torque Converter, Return Part Number

1шт.

10

D131147

PLATE

PLATE - torque converter, hardened

1шт.

11

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

BOLT, , Special, torque converter mounting Hex, Lock, 5/16"-18 x 5/8"

6шт.

12

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER - flat, special

6шт.

13

D81592

PLATE

PLATE - torque converter drive

1шт.

14

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

BOLT - special, drive plate mounting

6шт.

15

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pin 1/8" x 1 1/2", Slotted

1шт.

16

A29068

COVER

COVER - timing hole

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

19

D68661

PLUG

PLUG - converter drain

1шт.

20

139-62

PIN,1/8" x 1", Tapered

DOWEL PIN - tapered, 1" long

2шт.

Выбрано товаров: 22
