Запчасти Case 580SD (156) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING

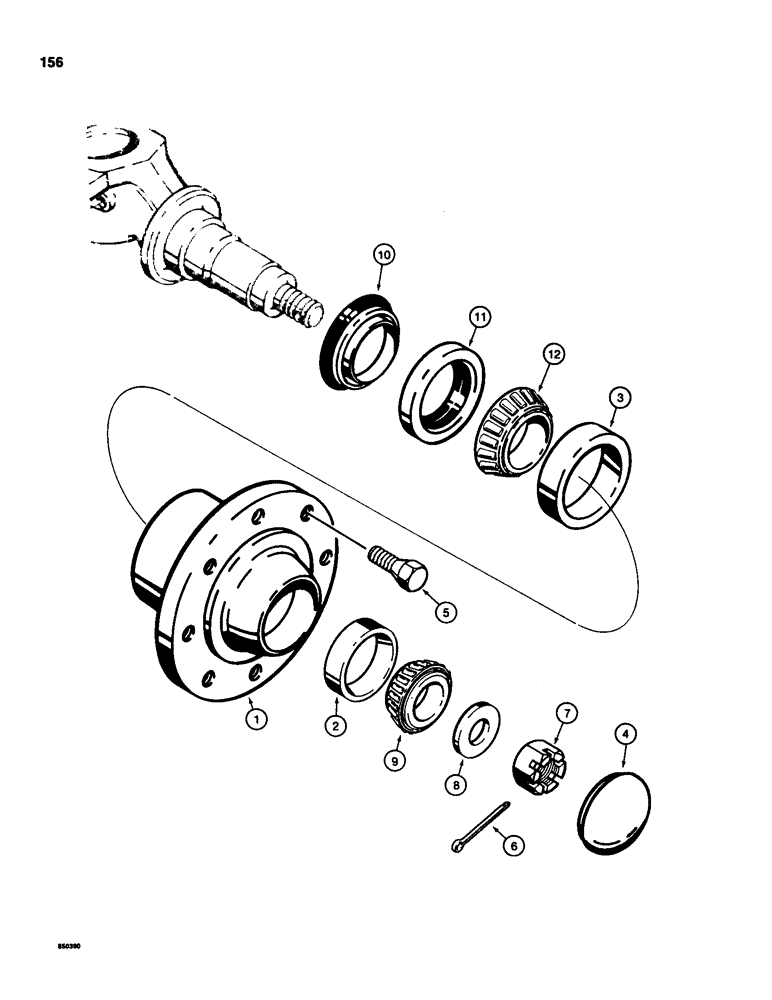

Схема запчастей Case 580SD - (156) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING
7
1
8
6
10
9
4
5
2
3
11
12

Артикул

Название

Примечание

Количество

A66759

HUB

ASSEMBLY - front wheel, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HUB - front wheel

1шт.

2

G15214

BEARING CUP

CUP - outer, tapered roller bearing

1шт.

3

A61446

BEARING CUP

CUP - inner, tapered roller bearing

1шт.

4

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel retaining

16шт.

6

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

7

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, slotted, thick, 1-1/8" - 12 NF

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

- flat, 1-1/8"

2шт.

9

G15215

ROLLER BEARING

TAPERED ROLLER BEARING - outer

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- spindle

2шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- hub

2шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

TAPERED ROLLER BEARING - inner

2шт.

B93222

KIT

wheel bearing, consists of: 1 each Ref. 2 cup, Ref. 3 CUP, Ref. 9 CONE, Ref. 10 SEAL, Ref. 11 SEAL and 12 CONE (1 kit per wheel)

1шт.
