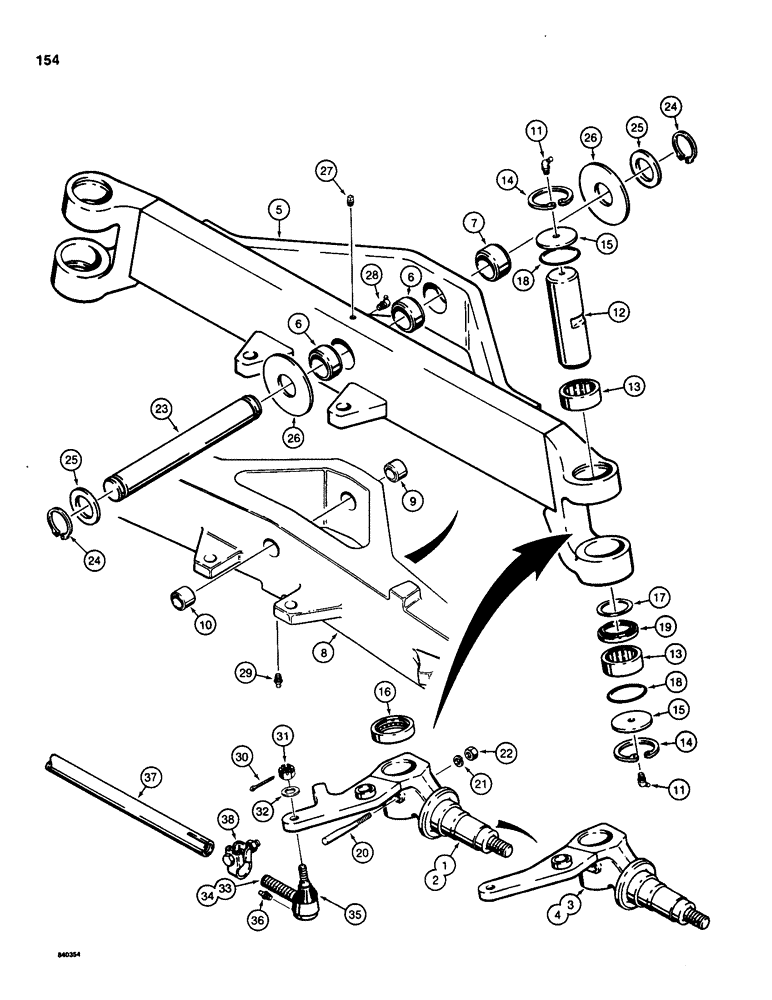

Запчасти Case 580SD (154) - FRONT AXLE AND SPINDLES (05) - STEERING

1

D86343

SPINDLE

- right-hand, used with Ref. 5 only

1шт.

2

D86344

SPINDLE

- left-hand, used with Ref. 5 only

1шт.

3

D125862

SPINDLE

- right-hand, used with Ref. 8 only

1шт.

Part of P/N D101471 Axle Kit

1шт.

4

D125863

SPINDLE

- left-hand, used with Ref. 8 only

1шт.

Part of P/N D101471 Axle Kit

1шт.

5

D67317

SPARE PART

AXLE ASSEMBLY - front, welded, no longer used, order D101471 axle kit, see below, Includes: Ref. 6 and 7

1шт.

The welded yokes at each end of this axle are D69359 R.H. and D69360 L.H.

1шт.

6

D61241

BUSHING,44.68mm ID x 57.15mm OD x 23.88mm L

- axle

2шт.

7

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- axle

1шт.

8

D125824

AXLE

ASSEMBLY - front, cast, Includes: Ref. 9 and 10

1шт.

Part of P/N D101471 Axle Kit

1шт.

9

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- axle

1шт.

10

D126498

BUSHING,44.68mm ID x 57.12mm OD x 50mm L

- axle

1шт.

11

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT

4шт.

12

D72337

PIN,50.8mm OD x 168.91mm L

KINGPIN - front axle

2шт.

13

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

- kingpin

4шт.

14

A27463

SNAP RING,2.375", Int, #237

Brg 2.375", Int, #237

4шт.

15

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER - kingpin

4шт.

16

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

ROLLER BEARING - spindle

2шт.

17

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

THRUST WASHER - bearing

2шт.

18

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk, King pin seal

4шт.

19

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

- oil

2шт.

20

D57486

PIN

- kingpin lock

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

129-125

NUT,1/2"-20, G5

2шт.

23

D64171

PIN,44.45mm OD x 352.55mm L

- axle pivot

1шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , axle pivot pin #175, Ext

2шт.

25

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- spacer

2шт.

26

D61076

WASHER,46mm ID x 114mm OD x 4.78mm Thk

- spacer

1шт.

27

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT, may replace square head plug on some models, used with Ref. 5 only

1шт.

28

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT, used with Ref. 5 only

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used with Ref. 8 only

1шт.

Part of P/N D101471 Axle Kit

1шт.

30

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.

31

129-610

SLOTTED NUT,5/8"-18, G5

2шт.

32

195-2084

WASHER,13/16" x 1 1/4" x .067", HDN

- flat, 5/8", special

1шт.

D73398

ROD

TIE ROD ASSEMBLY - tractor, Includes: Ref. 33 - 38

1шт.

33

D88491

BALL JOINT,7/8" - 18 x 3-3/4"

- tie rod, right-hand

1шт.

34

D88492

BALL JOINT,7/8" - 18 x 3-3/4"

- tie rod, left-hand, Includes: Ref. 35 - 38

1шт.

35

N7681

BOOT

- dust cover, ball joint

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

37

D73397

TIE-ROD,7/8” ID x 1.5” OD x 42.1” L

TIE ROD - tractor

1шт.

38

D73799

CLAMP

- tie rod, includes hardware

2шт.

D101471

AXLE

KIT axle, Includes Ref. 3, 4, 8 and 29, this kit also includes two stop blocks with installation instruction not for use on the 580D or 580 Super D580 Super D

1шт.
