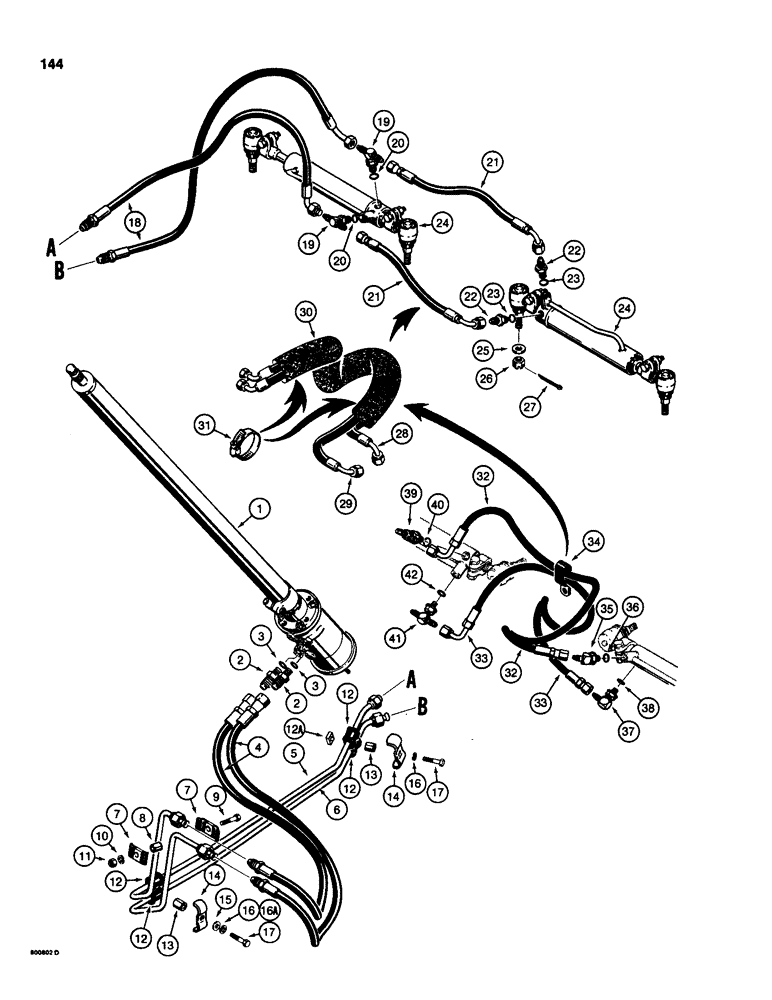

Запчасти Case 580SD (144) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

D91505

PUMP

CONTROL VALVE - steering, includes steering column, parts list Figure 148

1шт.

1

D91505R

REMAN-STEERING VALVE

580D CASE, 580SD CASE SUPER-D, Both CONSTRUCTION KING LOADER BACKHOE, CONTROL VALVE - steering, includes steering column

1шт.

1

D91505C

CORE-STEERING VALVE

Return Number

1шт.

2

D93918

RESTRICTOR

CONNECTOR - control valve to hose, restrictor, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

4

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- 12" (305 mm) long, from control valve

2шт.

5

D94531

HYD TUBE,12.7 mm OD x 754, 230 mm L

TUBE - upper, left-hand turn circuit

1шт.

6

D94533

HYD TUBE,12.7 mm OD x 761, 273 mm L

TUBE - lower, right-hand turn circuit

1шт.

7

R17319

CLAMP

- tube, metal, replaces plastic tube clamp on some models

2шт.

8

D76208

SPACER

- tube clamp

1шт.

9

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

D67296

GROMMET

INSULATOR - tube

4шт.

12a

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, if used

1шт.

13

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube

2шт.

14

D68646

CLAMP

- tube

2шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used only with rear clamp on models with horn only, see Figure 126, Ref. 3

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16a

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated, used with horn only, not shown, see Figure 126, Ref. 3

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1-2шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with horn, see Figure 126 Hex, 3/8"-16 x 1 1/2", G5

1шт.

18

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

- 20" (508 mm) long, to left-hand steering cylinder

2шт.

19

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, left-hand cylinder, Includes: Ref. 20

2шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

21

D126884

HOSE,9.53mm ID x 382mm L, SAE 100R1

- 15" (382 mm) long, to right-hand steering cylinder

2шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - right-hand cylinder, Incl. Ref. 23

2шт.

23

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

24

D128454

STEERING CYLINDER

CYLINDER - steering, parts list Figure 152

2шт.

25

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

26

129-610

SLOTTED NUT,5/8"-18, G5

4шт.

27

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

4шт.

REF

INSTRUCTION

SPECIAL PARTS USED ON 4 WHEEL DRIVE MODELS / HOSES USING PROTECTIVE SLEEVE

1шт.

28

D122787

HOSE

- 22-7/8" (580 mm) long, closed end of left-hand cylinder to rod end, of right-hand cylinder, special parts used on 4 wheel drive models, using protective sleeves

1шт.

29

D122788

HOSE

- 25-7/16" (645 mm) long, rod end of left-hand cylinder to closed end, of right-hand cylinder, special parts used on 4 wheel drive models, using protective sleeves

1шт.

30

D122671

SLEEVE

- cylinder hoses, used with items 28 and 29 only, special parts used on 4 wheel drive models, using protective sleeves

1шт.

31

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - sleeve, special parts used on 4 wheel drive models, hoses using protective sleeves, special parts used on 4 wheel drive models, hoses using clamps

2шт.

REF

INSTRUCTION

SPECIAL PARTS USED ON 4 WHEEL DRIVE MODELS / HOSES USING CLAMP

1шт.

32

D120745

HOSE

- 21-1/2" (550 mm) long, closed end of left-hand cylinder to rod end, of right-hand cylinder, special parts used on 4 wheel drive models, hoses using clamps

1шт.

33

D123917

HOSE

- 25-1/2" (650 mm) long, rod end of left-hand cylinder to closed end, of right-hand cylinder, special parts used on 4 wheel drive models, hoses using clamps

1шт.

34

L17508

CLAMP

- items 32 and 33 only, fastens to front axle, special parts used on 4 wheel drive models, hoses using clamps

1шт.

35

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, right-hand cylinder, used with Ref. 32, special parts used on 4 wheel drive models, hoses using clamps, Includes: Ref. 36

1шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow, special parts used on 4 wheel drive models, hoses using clamps

1шт.

37

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, right-hand cylinder, used with Ref. 33, special parts used on 4 wheel drive models, hoses using clamps, Includes: Ref. 38

1шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow, special parts used on 4 wheel drive models, hoses using clamps

1шт.

39

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Left-hand cylinder, used with Ref. 32, special parts used on 4 wheel drive models, hoses using clamps, Includes: Ref. 40 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

40

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee, special parts used on 4 wheel drive models, hoses using clamps

1шт.

41

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, left-hand cylinder, used with Ref. 33, special parts used on 4 wheel drive models, hoses using clamps, Includes: Ref. 42

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee, special parts used on 4 wheel drive models, hoses using clamps

1шт.
