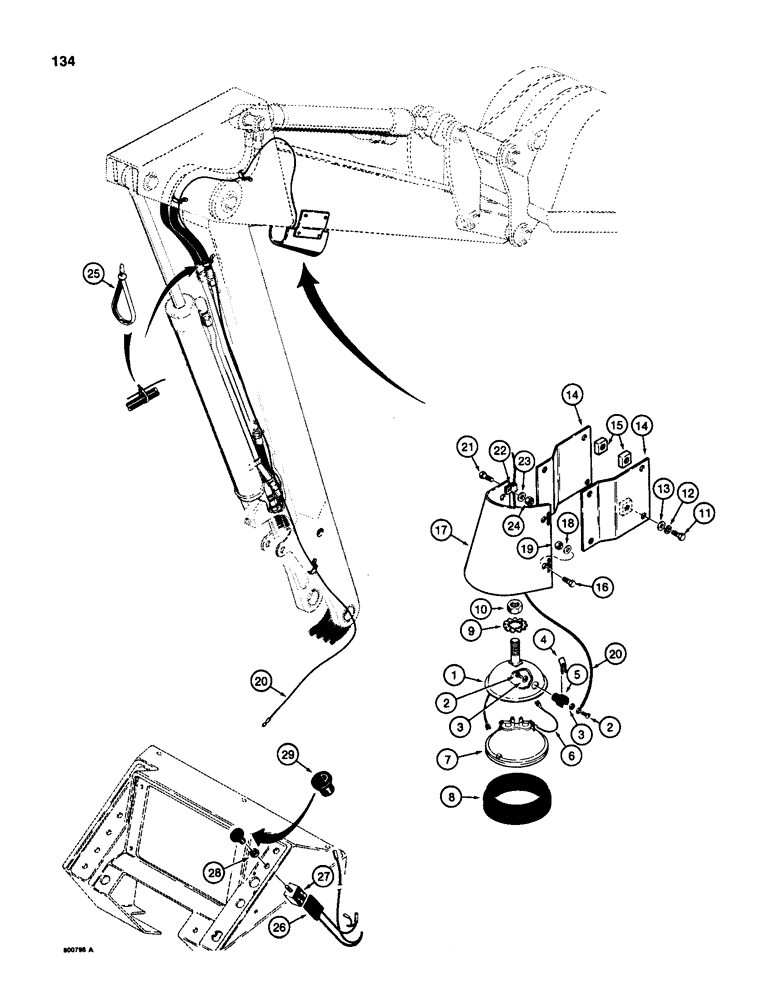

Запчасти Case 580SD (134) - DIPPER LAMP, USED WITH NON-EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - round head, No. 8 - 32 NC x 1/4", plated

2шт.

3

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

4

10927

SPRING

- lamp

1шт.

5

B50293

TERMINAL CONNECTOR

- lamp

1шт.

6

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

7

A42294

SEALED BEAM UNIT

BULB - sealed beam, No. 4406

1шт.

8

D31441

RETAINER

- lamp

1шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

10

131-1116

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

14

D56849

BRACKET

- support, shield

2шт.

15

D30458

BLOCK

- tapped, Serial Range: welded-dipper

4шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

D41427

SHIELD

- dipper lamp

1шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

19

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

20

D50717

HARNESS

WIRE - to dipper lamp

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

80049853

YOKE

- wire, at dipper

1шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

24

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

D75761

HARNESS

WIRE - from dipper lamp switch

1шт.

27

D74330

SWITCH

- dipper lamp, Includes: Ref. 28

1шт.

28

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

29

D70448

KNOB

- dipper lamp switch

1шт.
