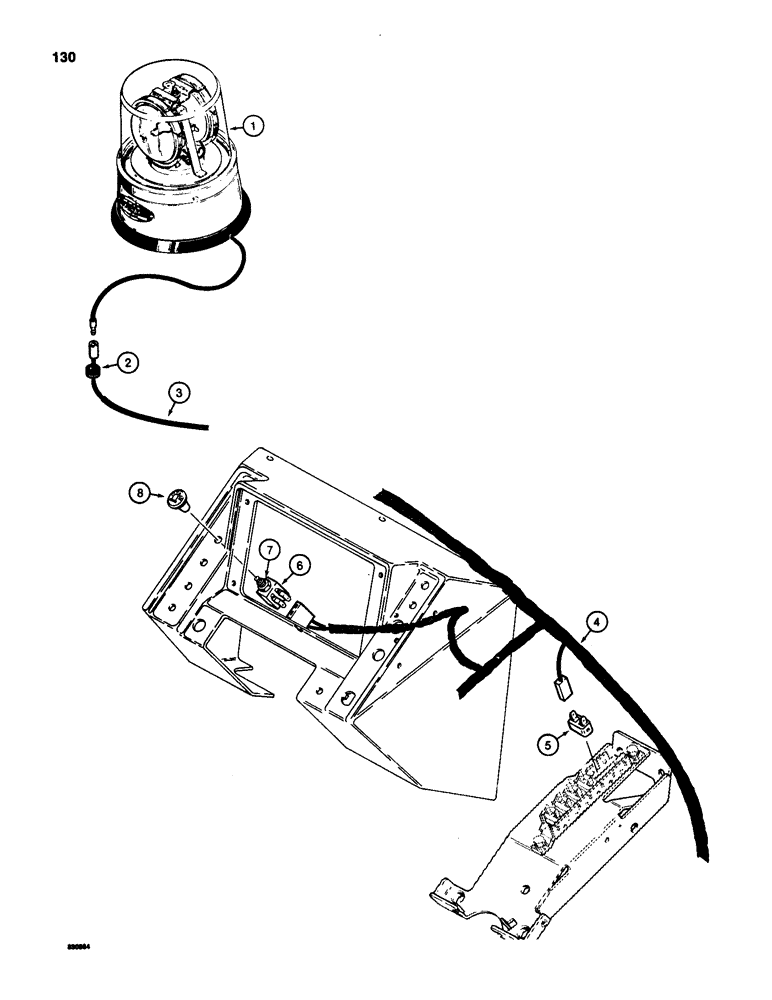

Запчасти Case 580SD (130) - ROTATING BEACON AND CIRCUIT (04) - ELECTRICAL SYSTEMS

1

F93158

LAMP

ROTATING BEACON - parts list Figure 132

1шт.

2

A23870

GROMMET

- wire, canopy only, use in place of Ref. 7 on Figure 132

1шт.

3

REF

INSTRUCTION

HARNESS - cab or canopy, see Figure 116 for canopy and Figure 118 for cab

1шт.

4

REF

INSTRUCTION

HARNESS - flasher and rotating beacon switches, see Figure 116 for canopy and Figure 118 for cab

1шт.

5

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

6

D74330

SWITCH

- rotating beacon, Includes: Ref. 7

1шт.

7

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

8

D92573

BUTTON

KNOB - rotating beacon switch

1шт.
