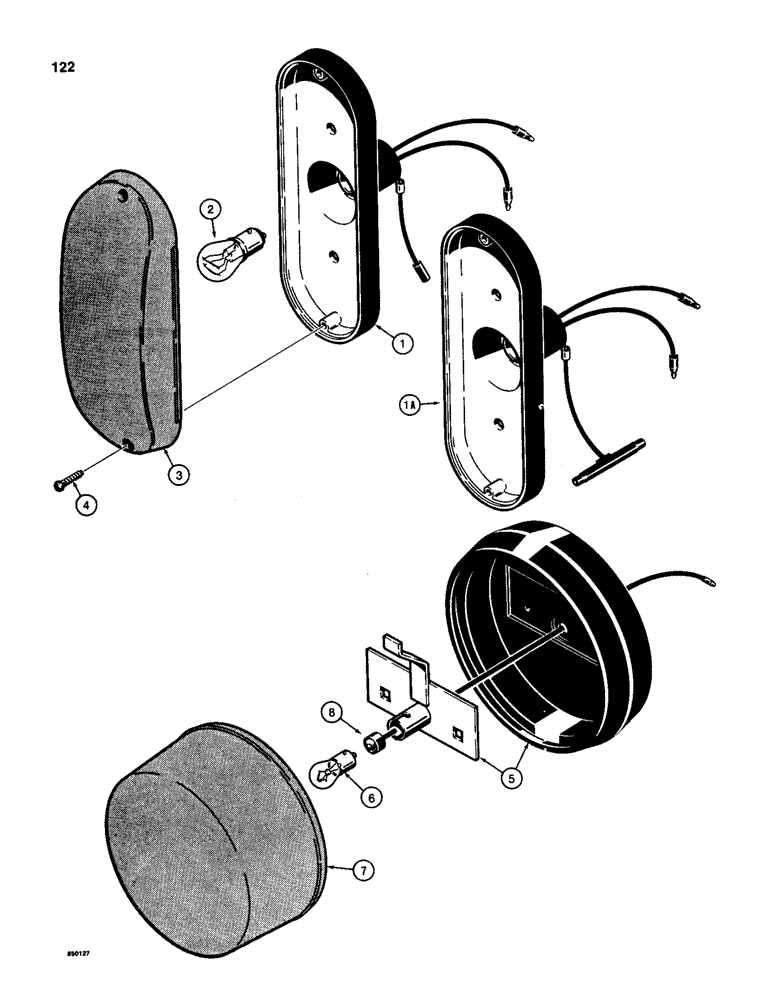

Запчасти Case 580SD (122) - TRACTOR LAMPS, STOP AND TAIL LAMPS (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

D87411, D121152 STOP AND TAIL LAMPS

1шт.

D87411

LAMP

ASSEMBLY - stop and tail, used on models with cab or canopy, no longer available, order D121152 lamp assembly, Includes: Ref. 1 - 4

2шт.

For stop and tail lamp on models without cab or canopy, see Figure 124.

1шт.

D121152

LAMP,12V

ASSEMBLY - stop and tail, used on models with cab or canopy with flasher lamps, Includes: Ref. 1 - 4

2шт.

For stop and tail lamp on models without cab or canopy, see Figure 124.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - D87411 lamp, complete

1шт.

1a

NSS

NOT SOLD SEPARAT

BODY - D121152 lamp, complete

1шт.

2

T34857

BULB,C6, #1157, 12.8V

- stop and tail, No. 1157

1шт.

3

N6836

LENS

- red

1шт.

4

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - round head, self-tapping, No. 6 - 32 NC x 5/8", plated

2шт.

REF

INSTRUCTION

D91096 TAIL LAMP

1шт.

D91096

LIGHT ASSY.

TAIL LAMP ASSEMBLY - used on models with canopy without flasher lamps, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp, D91096 tail lamp

1шт.

6

N6835

BULB

- tail lamp, No. 97, D91096 tail lamp

1шт.

7

L31185

LIGHT FAIRING

LENS - red, D91096 tail lamp

1шт.

8

L31186

ELECTRICAL WIRE

WIRE - lamp, D91096 tail lamp

1шт.
