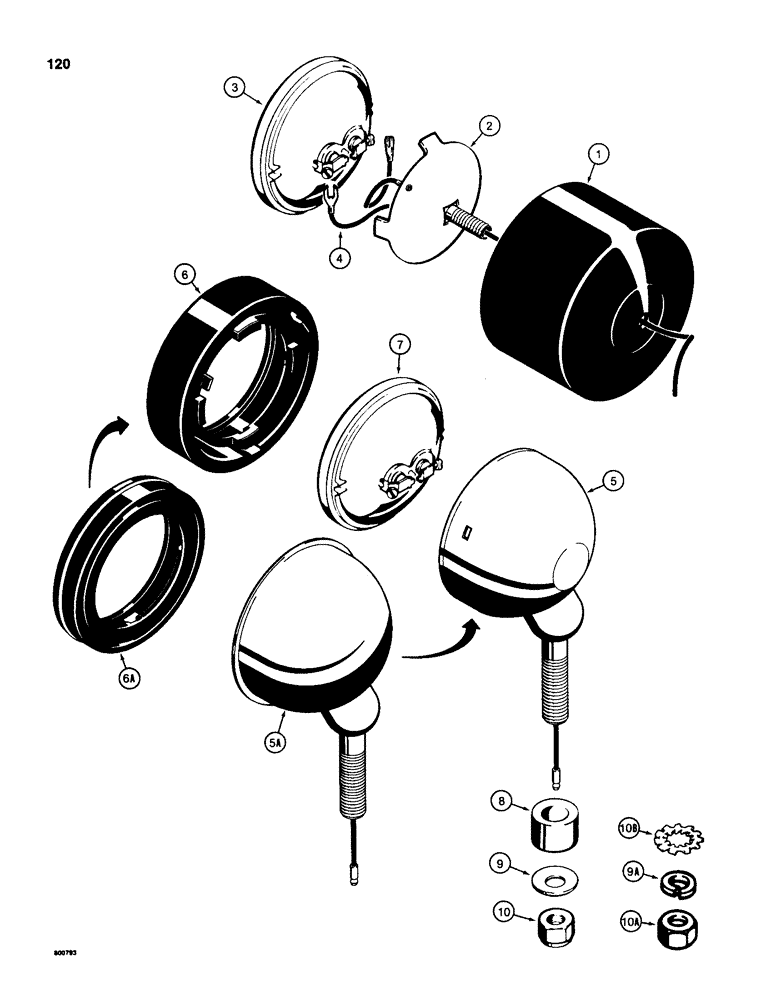

Запчасти Case 580SD (120) - TRACTOR LAMPS, FRONT DRIVING AND REAR FLOOD LAMPS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
F96725 FRONT DRIVING LAMP
1шт.
F96725
LAMP BASE
LAMP ASSEMBLY - front driving, Includes: Ref. 1 - 3
2шт.
1
F44804
BODY
SHELL - lamp
1шт.
2
F44805
SUPPORT ASSY.
WASHER - support
1шт.
3
A11280
LAMP
BULB - sealed beam, No. 4411
1шт.
4
NSS
NOT SOLD SEPARAT
WIRE - lamp, make locally
1шт.
REF
INSTRUCTION
F96726 REAR FLOOD LAMP
1шт.
F96726
LAMP
ASSEMBLY - rear flood, used on models with canopy or cab only, Includes: Ref. 1 - 3
1-2шт.
1
F44804
BODY
SHELL - lamp
1шт.
2
F44805
SUPPORT ASSY.
WASHER - support
1шт.
3
A42294
SEALED BEAM UNIT
BULB - sealed beam, No. 4406
1шт.
4
NSS
NOT SOLD SEPARAT
WIRE - lamp, make locally
1шт.
REF
INSTRUCTION
D88684 REAR FLOOD LAMP
1шт.
D88684
LAMP
ASSEMBLY - rear, interchangeable with D49976, used on models without canopy or cab, Includes: Ref. 5 - 10B
2шт.
5
NSS
NOT SOLD SEPARAT
SHELL - lamp, uses Ref. 6 only, D88684 rear flood lamp
1шт.
5a
NSS
NOT SOLD SEPARAT
SHELL - lamp, uses Ref. 6A only, D88684 rear flood lamp
1шт.
6
A25213
RETAINER
- lamp, rubber, locks to shell with 3 rubber tabs, if used, D88684 rear flood lamp
1шт.
6a
N6160
LAMP
RETAINER - lamp, rubber, locks over shell flange, if used, D88684 rear flood lamp
1шт.
7
A11280
LAMP
BULB - sealed beam, No. 4411, D88684 rear flood lamp
1шт.
8
D37048
BUSHING
- pivot, D88684 rear flood lamp
1шт.
9
195-106
WASHER,1/2"
- flat, , plated, D88684 rear flood lamp 1/2"
1шт.
9a
192-23
LOCK WASHER,1/2"
WASHER, LOCK, , If used, D88684 rear flood lamp 1/2"
1шт.
10
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - hex, self-locking, 1/2" - 20 NF, if used, D88684 rear flood lamp
1шт.
10a
129-165
JAM NUT,Jam, 1/2"-20, G5
If used, D88684 rear flood lamp Jam, 1/2"-20, G5
1шт.
10b
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , May be used to, D88684 rear flood lamp replace Ref. 9A, if used Ext-Int Tooth, 1/2"
1шт.
Выбрано товаров: 25
