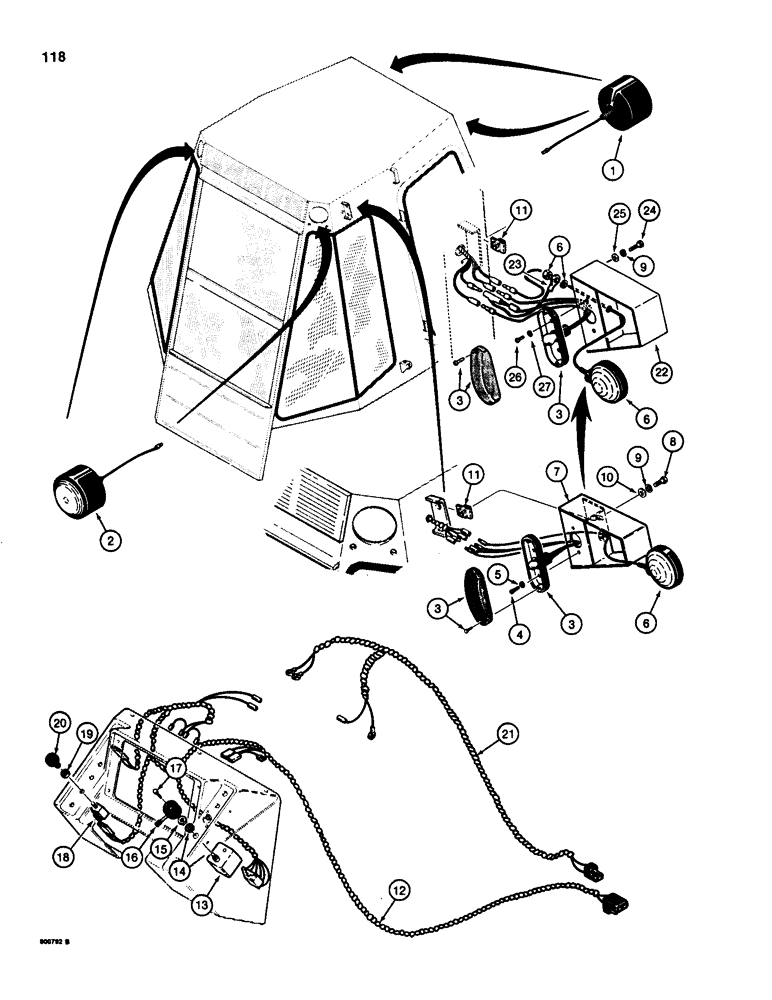

Запчасти Case 580SD (118) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

F96725

LAMP BASE

LAMP ASSEMBLY - front driving, parts list Figure 120, for lamp mounting brackets and internal cab wiring, see Figures 546 and 564

2шт.

2

F96726

LAMP

ASSEMBLY - rear flood, parts list Figure 120, for lamp mounting brackets and internal cab wiring, see Figures 546 and 564

2шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - stop and tail, parts list Figure 122

2шт.

4

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 1/2", plated, if used

4шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

4шт.

6

REF

INSTRUCTION

LAMP ASSEMBLY - flasher, parts list Figure 124

2шт.

7

D88533

BRACKET

- metal, side lamp, no longer available, order D101626 bracket kit

2шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

If used Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

4шт.

11

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16" - 18 NC

4шт.

12

D88132

HARNESS

- flasher switches, see Figure 104 for clamps

1шт.

13

A77184

SWITCH

- turn signal

1шт.

14

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

15

D91352

JAM NUT

- special, 3/4" - 20 National Extra Fine

1шт.

16

A141736

KNOB

- turn signal switch

1шт.

17

193-556

SCREW,SEMS, Pan Hd, #5-40 x 1/2"

AND LOCK WASHER - No. 5 - 40 NC x 1/2", plated

1шт.

18

D74330

SWITCH

- flasher, see Figure 104 for front and rear lamp switches, Includes: Ref. 19

1шт.

19

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

20

D88134

KNOB

-flasher switch

1шт.

21

D88133

HARNESS

- cab power, see Figure 564 for cab harness

1шт.

D101626

BRACKET

KIT - plastic, lamp bracket, Includes: Ref. 22 - 27

2шт.

22

D120124

BRACKET

- plastic, side lamps

1шт.

23

D126722

ELECTRICAL WIRE

WIRE - ground

1шт.

24

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

26

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW - pan head, self-tapping, No. 8 x 5/8", plated

2шт.

27

195-510

WASHER,#8

- flat, No. 8, plated

2шт.
