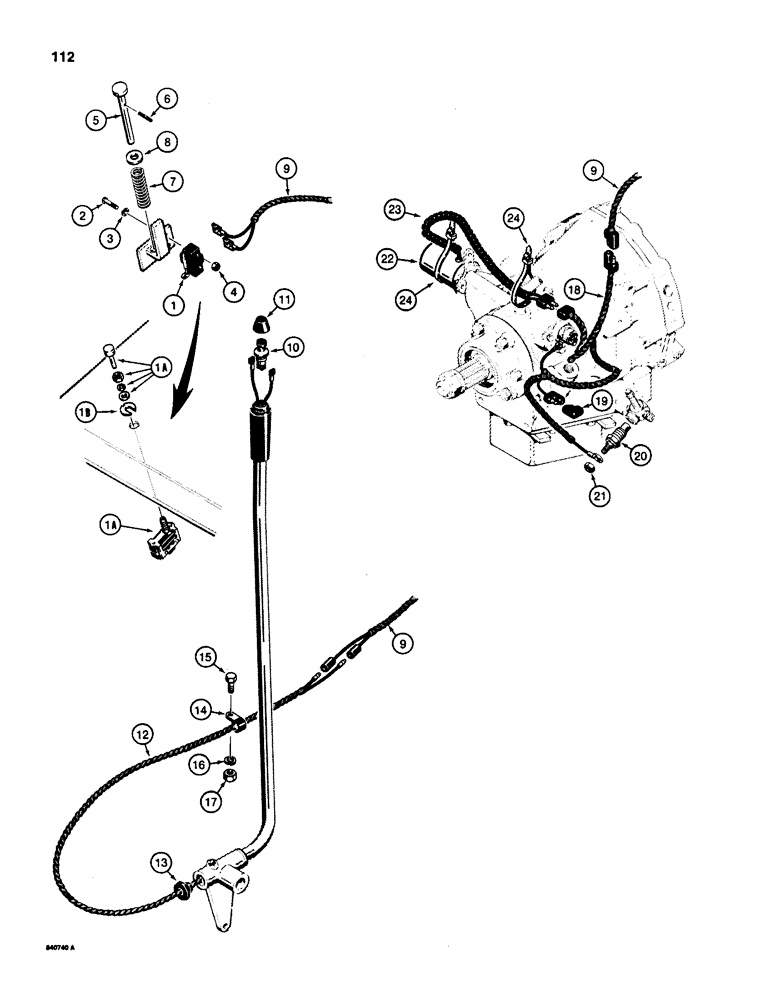

Запчасти Case 580SD (112) - POWER SHUTTLE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D40921

SWITCH

- clutch cutout, floor, used with D87604 floor plate with switch mounting bracket, if used, see Figure 514 for floor plate

1шт.

1a

D124618

SWITCH

- clutch cutout, floor, used with D126612 floor plate without switch mounting bracket, if used, see Figure 514 for floor plates

1шт.

1b

D126116

BRACKET

WASHER - special, used with D124618 clutch cutout switch only

1шт.

2

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

MACHINE SCREW - pan head slotted, No. 6 - 32 NC x 1-1/4", plated, if used

2шт.

3

195-507

WASHER,#6

- flat, No. 6, plated, if used

2шт.

4

193-1003

NUT,Keps, w/LW,#6-32

AND LOCK WASHER - No. 6 - 32 NC, plated, if used

2шт.

5

D84327

ROD

- switch actuating, if used

1шт.

6

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , If used 1/8" x 1", Slotted

1шт.

7

T34088

SPRING

- rod return, if used

1шт.

8

195-525

WASHER,3/8", SAE

- flat, 7/8", plated, if used

1шт.

9

REF

INSTRUCTION

HARNESS - main, see Figure 104

1шт.

10

D91440

SWITCH

- clutch cutout, lever handle

1шт.

11

D125880

BOOT

- switch cover

1шт.

12

D88009

HARNESS

- control lever switch

1шт.

13

D83832

GROMMET

- lever

1шт.

14

49845

CLAMP

- harness

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

18

D87972

LOOM

HARNESS - shuttle

1шт.

19

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch protecting

1шт.

20

D65446

SENDER UNIT

SENDER - shuttle oil temperature

1шт.

21

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

1шт.

22

D67903

SOLENOID

- clutch cutout, at power shuttle

1шт.

23

D88053

SLEEVE

- solenoid wires

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
