Запчасти Case 580SD (108) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

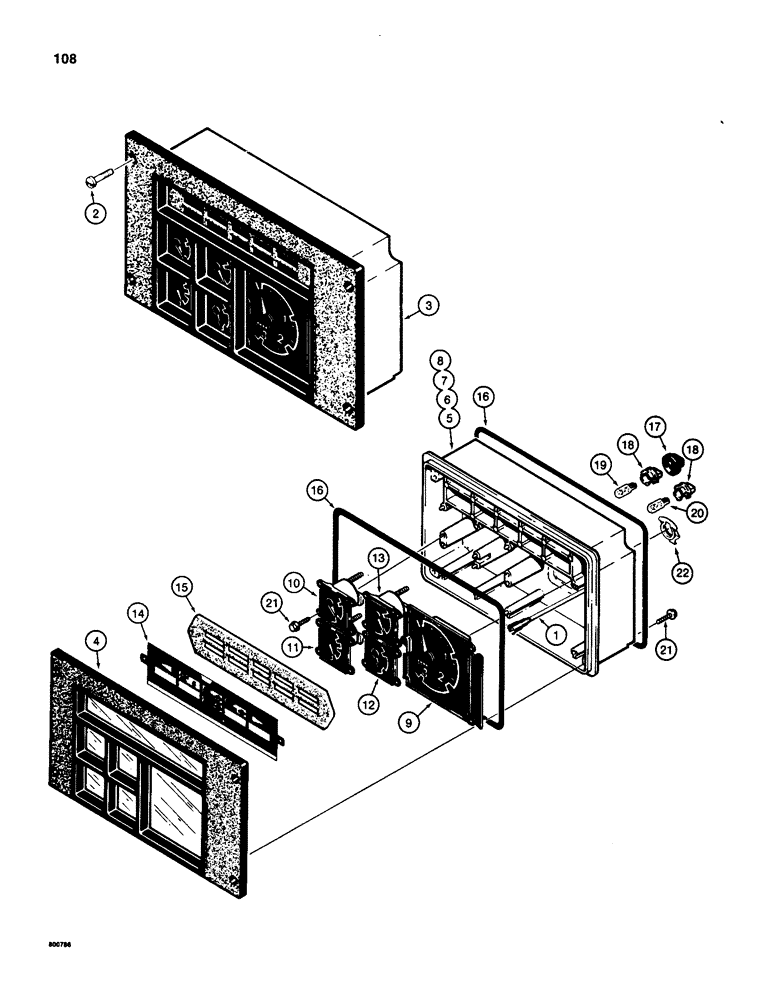

Схема запчастей Case 580SD - (108) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS
6
7
16
18
5
21
20
4
22
16
10
11
15
21
3
18
1
14
13
12
2
9
19
17
8

Артикул

Название

Примечание

Количество

1

D68851

CABLE

- tachometer drive

1шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, slotted, No. 10 - 24 NC x 1/2"

4шт.

3

D91122

CLUSTER

INSTRUMENT CLUSTER ASSEMBLY - tractor, Inlcudes: Ref. 4 - 22

1шт.

4

D71334

LENS

COVER - instrument

1шт.

D71335

CASE ASSY.

CASE ASSEMBLY - instrument cluster, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

CASE - instrument cluster

1шт.

6

H422774

BOARD, PRINTED CIRCU

CIRCUIT BOARD - printed

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP - gauges

12шт.

8

NSS

NOT SOLD SEPARAT

GASKET - case

1шт.

9

N6805

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

10

N6806

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

11

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

12

N6807

ELECTRICAL GAUGE

GAUGE - voltmeter

1шт.

13

N6808

GAUGE

- transmission oil temperature

1шт.

14

N6809

INDICATOR

LENS - identification, warning lamps

1шт.

15

D71342

GASKET,3.05mm Thk

- lens

1шт.

16

D71343

GASKET,4.45mm Thk x 249.68mm ID

- cluster

2шт.

17

D71344

COVER

BOOT - rubber

3шт.

18

A47125

PEDESTAL

SOCKET - lamp, green

9шт.

19

W10478

LAMP

BULB - illumination, No. 194

3шт.

20

D71346

TAIL LAMP,12V

BULB - warning, No. 168

6шт.

21

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

22

A47704

SPRING

- locking

1шт.

Выбрано товаров: 23
