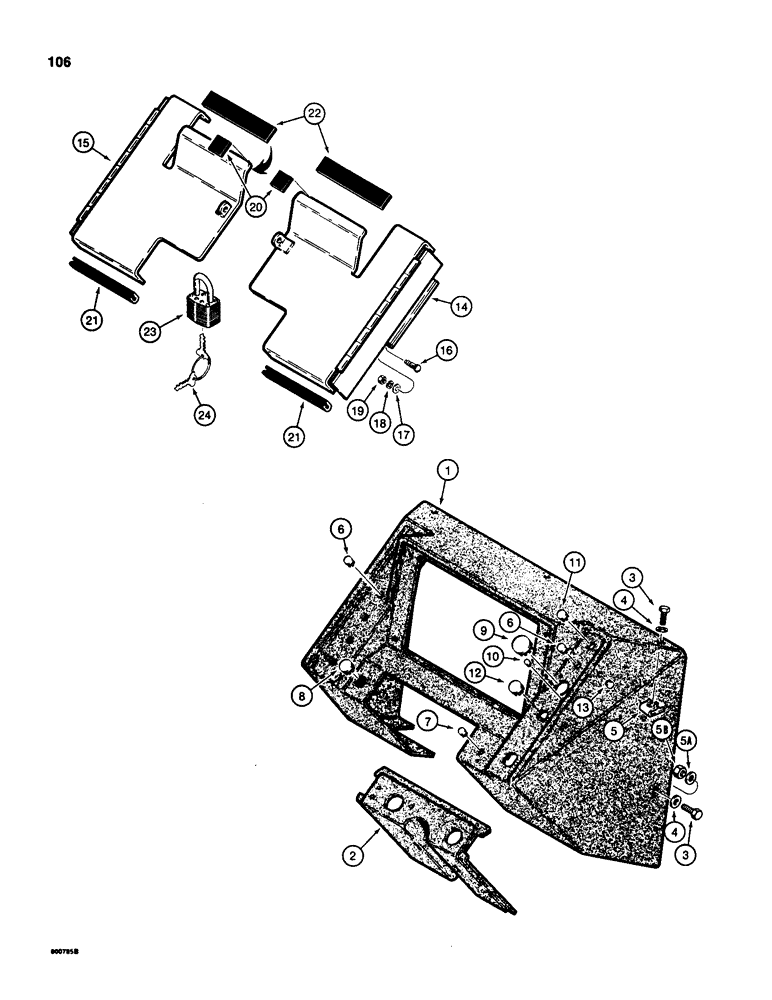

Запчасти Case 580SD (106) - INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D83240
PANEL
INSTRUMENT PANEL - tractor
1шт.
2
D83255
PANEL
- steering column and controls
1шт.
3
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
If used, see ref. 4A Hex, 5/16"-18 x 1", G5, Full Thd
5шт.
4
195-521
WASHER,5/16", SAE
- flat, 5/16", plated, if used
5шт.
4a
121-123
BOLT,Hex Serr, 5/16" - 18 x 3/4"
Interchangeable with Refs. 3 and 4, not shown Hex Flg, 5/16"-18 x 3/4", Serr
5шт.
5
131-641
NUT
- U-type, 5/16" - 18 NC
3-5шт.
5a
195-521
WASHER,5/16", SAE
- flat, 5/16", plated, if used
2шт.
5b
9635082
NUT,5/16" - 18, Gr 5
If used 5/16"-18, G5
2шт.
6
353-402
PLUG,Dome, .375" hole, Nylon
If used Dome, .375" hole, Nylon
4шт.
7
353-403
PLUG,Dome, .437" hole, Nylon
If used Dome, .437" hole, Nylon
2шт.
8
353-407
PLUG,Dome, .687" hole, Nylon
- button, 11/16", if used
1шт.
9
353-411
PLUG,Dome, 1.000" hole, Nylon
If used Dome, 1.000" hole, Nylon
1шт.
10
353-400
PLUG,Dome, .250" hole, Nylon
If used Dome, .250" hole, Nylon
2шт.
11
353-404
PLUG,Dome, .500" hole, Nylon
If used Dome, .500" hole, Nylon
1шт.
12
353-408
PLUG,Dome, .750" hole, Nylon
- button, 3/4", if used
1шт.
13
353-401
PLUG,Dome, .312" hole, Nylon
- button, 5/16", if used
4шт.
14
D90320
COVER
- anti-vandalism, right-hand, if used
1шт.
15
D90321
COVER
- anti-vandalism, left-hand, if used
1шт.
16
111-108
CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2
- 1/4" - 20 NC x 3/4", plated
4шт.
17
195-102
WASHER,1/4"
- flat, , plated 1/4"
4шт.
18
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
19
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
4шт.
20
D83236
PAD
- cushion
2шт.
21
D95462
MOLDING
TRIM - edge, 9" (229 mm) cut to fit two places
1шт.
22
D66072
SEALING STRIP
- cushion
2шт.
23
D93753
PADLOCK
- includes keys, Includes: Ref. 24
1шт.
24
R29555
KEY
- for Master padlock only
2шт.
24
D93751
SET OF 2 KEYS
KEY - for Yale padlock only
2шт.
Выбрано товаров: 28
