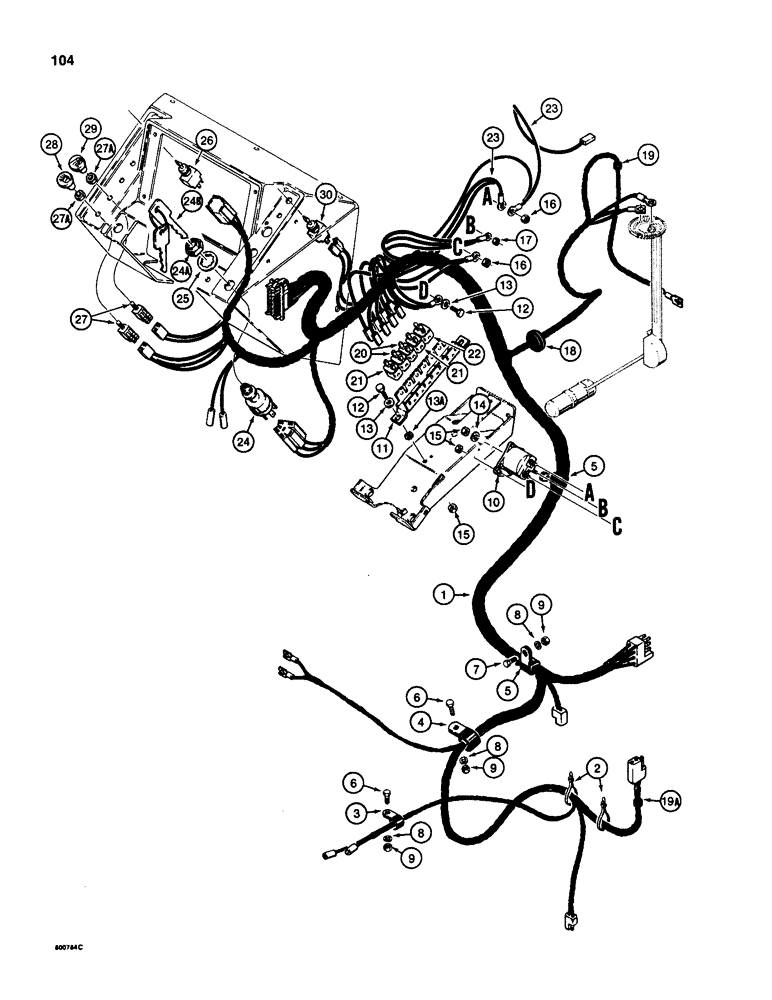

Запчасти Case 580SD (104) - MAIN WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D88038

HARNESS

- main

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness, lower

1шт.

4

49838

CLAMP

- harness, center, models without cab or flasher lamps

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, center, models with or without cab, but with flasher lamps

1шт.

4

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- harness, center, models with cab

1шт.

5

D88051

CLAMP

- harness, upper, models without cab or flasher lamps

2шт.

5

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- harness, upper, models with or without cab, but with flasher lamps

2шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

A77311

SWITCH

SOLENOID - electrical

1шт.

11

D75355

BRACKET

- circuit breaker

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

13

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

13a

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated, if used

2шт.

14

195-2011

WASHER,5/16" x 1" x .083"

- flat, special

1шт.

15

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER - 1/4" - 20 NC, plated

2-4шт.

16

193-1009

NUT,Keps, w/LW, 5/16"-18

AND LOCK WASHER - 5/16" - 18 NC, plated

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

1шт.

18

A145925

GROMMET

- harness, fuel gauge sender wire

1шт.

19

A31076

GROMMET

- harness at firewall, filter wire, no longer used

1шт.

19a

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- harness, at floorplate

1шт.

20

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amperes

2шт.

21

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

2шт.

22

D84689

CIRCUIT-BREAKER

CIRCUIT BREAKER - 25 amperes, cab circuit only, if used

1шт.

23

D88040

HARNESS

WIRE - solenoid to circuit breaker

2шт.

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 24, 24A and 24B

1шт.

24

NSS

NOT SOLD SEPARAT

KEY SWITCH - without keys

1шт.

24a

A77314

NUT

- key switch mounting

1шт.

24b

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

25

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1"

1шт.

26

D75360

SWITCH

- test, warning lamp

1шт.

27

D74330

SWITCH

- lamp, Includes: Ref. 27A

2шт.

27a

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

28

D70446

KNOB

- lamp switch, lower

1шт.

29

D70448

KNOB

- lamp switch, flood, upper

1шт.

30

D88981

SWITCH

- toggle, fuel off, turbocharged models only

1шт.
