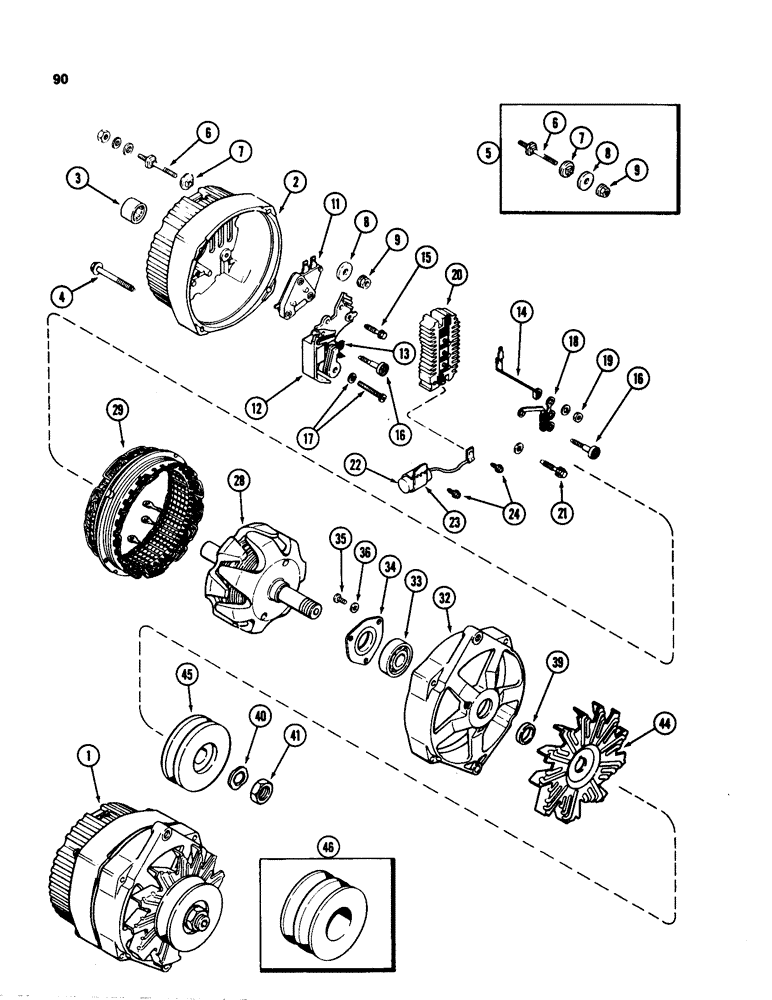

Запчасти Case 580SD (090) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

L102693

ALTERNATOR ASSEMBLY - without air-conditioning (Used production only)(Delco-Remy No. 1103125)(Order A47623 alternator, A43384 fan and A51561 pulley), Includes: Ref. 2 - 40

1шт.

1

L102693

ALTERNATOR ASSEMBLY - with air-conditioning (Used production only)(Delco-Remy No. 1103125)(Order A47623 alternator, A43384 fan and D85920 pulley), Includes: Ref. 2 - 40

1шт.

A47436

ALTERNATOR

ALTERNATOR ASSEMBLY - remanufactured, N.A. only, Includes: Ref. 2 - 40

1шт.

A47444

REMAN-ALTERNATOR

Reman For New P/N A47436

1шт.

A47437

CORE-ALTERNATOR

Return Number - use this part number to return alternator core for credit, Includes: Ref. 2 - 40

1шт.

A47623

ALTERNATOR

ALTERNATOR ASSEMBLY - new (Delco-Remy No. 1103133) Used for repairs only), Includes: Ref. 2 - 40

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volty, 61 ampere

1шт.

87297245

CORE-ALTERNATOR

Return Number, Alternator, 12 volt, 61 ampere

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A47623

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47595

FRAME

FRAME ASSEMBLY - slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through, hex head, No. 10-24 x 1-3/4 inch (with washer)

4шт.

5

A47597

TERMINAL CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

11

A45213

REGULATOR

REGULATOR - voltage

1шт.

12

A47042

HOLDER

HOLDER ASSEMBLY - brush, Includes: Ref. 13

1шт.

13

A47626

COMMUTATOR BRUSH

BRUSH - (Order A47987)

2шт.

14

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

1шт.

17

A47043

SCREW,#8 - 32 x 21"

SCREW ASSEMBLY - with washer, brush holder attaching

1шт.

.

(Replaces 182-558)

1шт.

18

A48339

DIODE

DIODE - trio (Replaces A48339)

1шт.

19

129-16

NUT,#8-32

NUT, , Diode trio to rectifier bridge #8-32

3шт.

20

A45394

RECTIFIER

RECTIFIER BRIDGE

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge attaching

1шт.

22

A45017

CAPACITOR

CAPACITOR - (Order A47734)

1шт.

23

A45227

CLAMP

BRACKET - capacitor mounting

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket and lead

2шт.

28

A47047

ROTOR

ROTOR ASSEMBLY

1шт.

29

A47048

ARMATURE

STATOR ASSEMBLY

1шт.

32

A47596

FRAME

FRAME - drive end

1шт.

33

A47579

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

BEARING - ball, drive end

1шт.

34

A44433

PLATE

PLATE - bearing retaining

1шт.

35

A43699

SCREW,Hex, #10 - 24 x 0.52"

SCREW - bearing plate retaining (Replaces 173-210)

3шт.

36

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16 inch (6 x 11 x 2 mm)

3шт.

39

A47580

COLLAR

COLLAR - rotor shaft (Replaces A47557)

1шт.

40

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

41

A25546

NUT

NUT - pulley and fan retaining

1шт.

44

A43384

FAN

FAN - ventilating

1шт.

45

A51561

PULLEY

PULLEY - drive, without air-conditioning

1шт.

46

D85920

PULLEY

PULLEY - drive, with air-conditioning

1шт.
