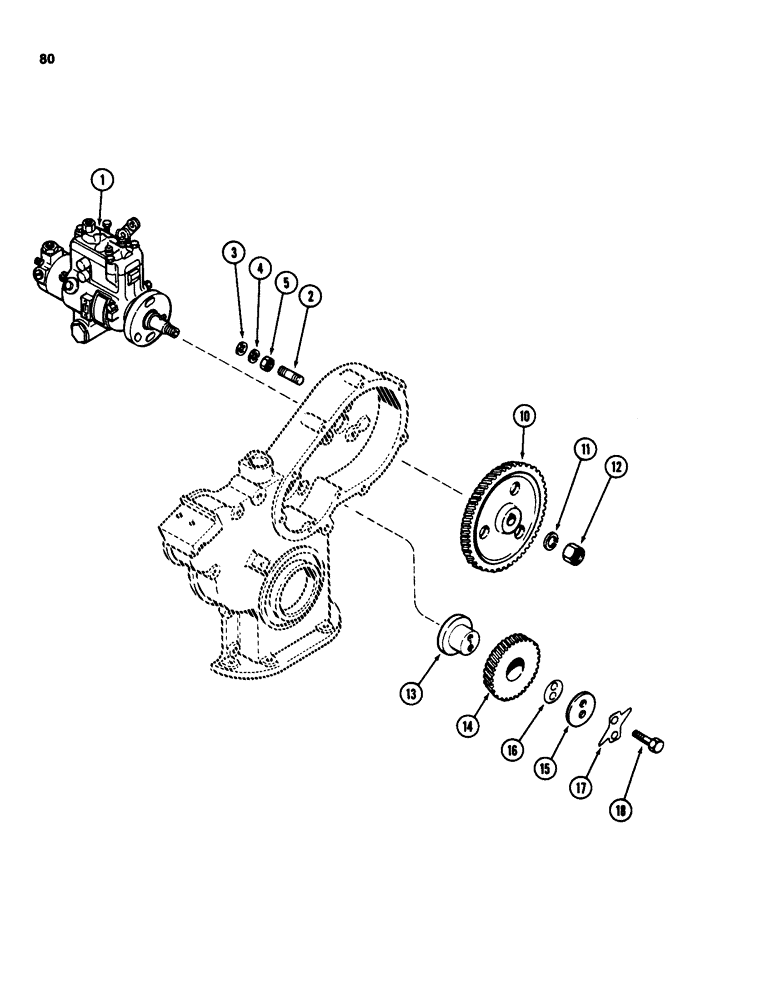

Запчасти Case 580SD (080) - INJECTION PUMP DRIVE, 207 TURBOCHARGED DIESEL ENGINE, 207 NATURALLY ASPIRATED DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, without turbocharger (See Figures 082 and 084)

1шт.

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, with turbocharger (See Figure 086)

1шт.

2

G102128

BOLT

- pump mounting, 3/8 NC x 1-7/16 inch

3шт.

3

A30043

WASHER

- mounting studs, 7/8 inch (22 mm)

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

G2076

GEAR

- drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

129-166

JAM NUT,Jam, 9/16"-18, G5

1шт.

13

G11726

HUB

- idler gear

1шт.

14

G11852

GEAR

ASSEMBLY - idler, with bushing

1шт.

15

G11732

PLATE

- thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear (0.13 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear (0.16 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear (0.18 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear (0.33 mm) .009" Thk

1шт.

17

G11746

PLATE

- lock, idler gear

1шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
