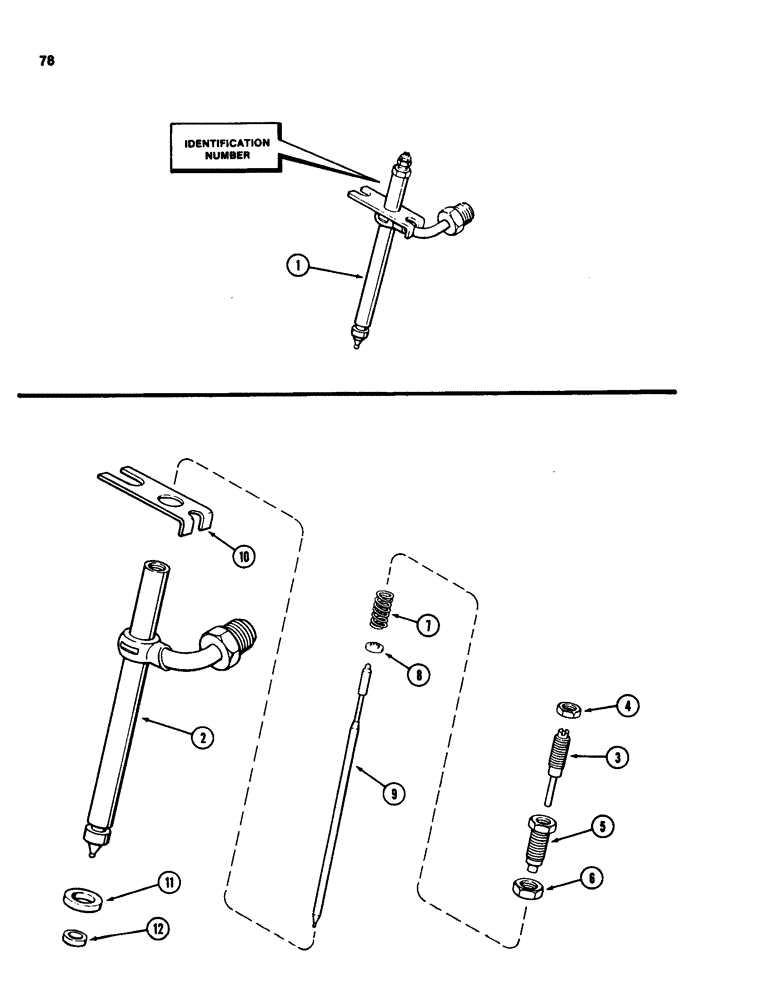

Запчасти Case 580SD (078) - INJECTOR NOZZLES, 207 TURBOCHARGED DIESEL ENGINE, 207 NATURALLY ASPIRATED DIESEL ENGINE (03) - FUEL SYSTEM

1

A140829

NOZZLE INJECTION

NOZZLE ASSEMBLY - injector, color code white, stamped 20671, without turbocharger (Includes: Ref. 2 - 12)

1шт.

A140829R

REMAN-INJECT NOZZLE

580D, 580SD

1шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

A154542

NOZZLE CAP

NOZZLE ASSEMBLY - injector, color code white and green, stamped 22365, without turbocharger (Includes: Ref. 2 - 12)

1шт.

A154542R

REMAN-FUEL INJECTOR

580D, 580SD

1шт.

A154542C

CORE-FUEL INJECTOR

Return Number

1шт.

1

A51987

NOZZLE INJECTION

NOZZLE ASSEMBLY - injector, color code white and red, stamped 22945, with turbocharger

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order Ref. 1)

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A43733

SPRING

- pressure adjusting, 9/16 inch free length (14 mm)

1шт.

8

A44369

SEAT

- pressure adjusting spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order Ref. 1)

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle holder

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
