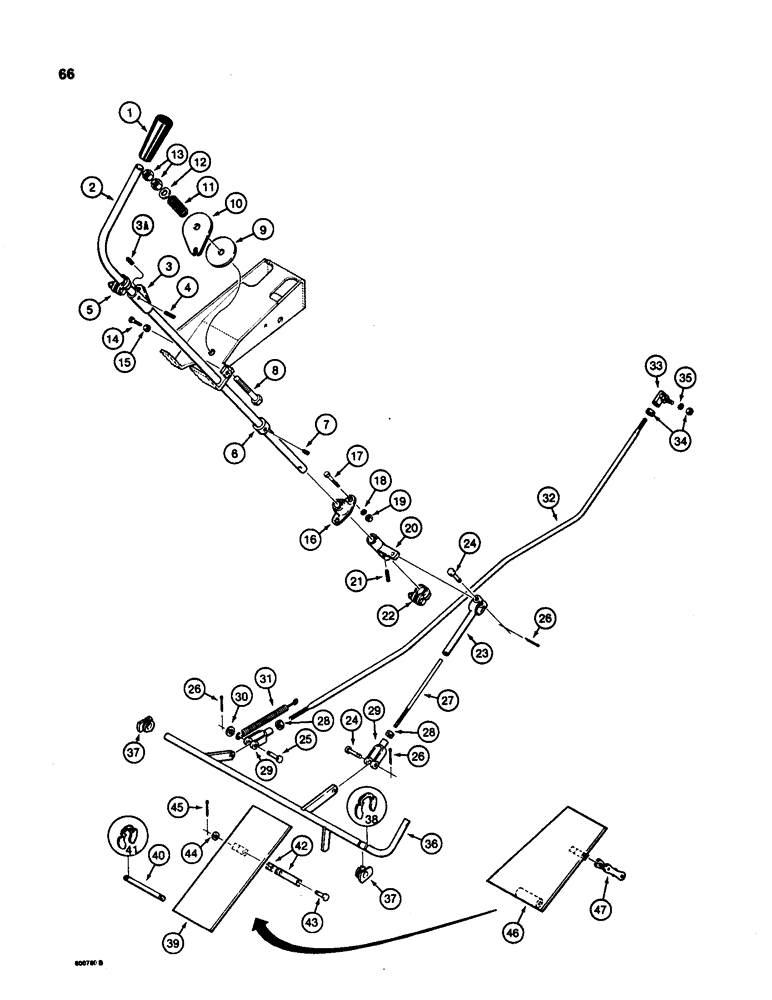

Запчасти Case 580SD (066) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

D86694

KNOB

- hand throttle

1шт.

2

D83336

CONTROL LEVER

- hand throttle

1шт.

3

D83332

SLEEVE

- throttle control lever, upper, Includes: Ref. 3A

1шт.

3a

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

4

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

1шт.

5

D71880

CLAMP,22.23mm

- throttle control lever, upper, includes hardware

1шт.

6

D81756

COLLAR

- throttle control lever, Includes: Ref. 7

1шт.

7

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4" - 20 NC x 1/4", cup point

1шт.

8

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

9

R15071

DISC

- friction

1шт.

10

D66096

LARGE PLATE

PLATE - throttle linkage

1шт.

11

A34113

SPRING

- detent

1шт.

12

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Throttle stop Hex, 1/4"-20 x 1", G5

1шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

L15401

BEARING,15.89mm ID

- floor plate

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

D83335

CLAMP

SLEEVE - throttle control lever, lower

1шт.

21

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

1шт.

22

D71880

CLAMP,22.23mm

- throttle control lever, lower, includes hardware

1шт.

23

D66655

ROD

SLEEVE - rod

1шт.

24

141-53

CLEVIS PIN,5/16" x .940"

plated, plated, rod ends 5/16" x .940"

2шт.

25

141-65

CLEVIS PIN,5/16" x 1 1/8"

- throttle rod and spring

1шт.

26

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

27

D83345

ROD

- control, Serial Range: lever-shaft

1шт.

28

129-122

NUT,5/16"-24, G5

2шт.

29

H44198

YOKE

CLEVIS - rod end, plated

2шт.

30

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

31

D93823

SPRING

- throttle return

1шт.

32

D89580

ROD

- throttle, to injection pump

1шт.

33

A10329

BALL JOINT,1/4" - 28 x 1"

- at injection pump

1шт.

34

129-121

NUT,1/4"-28, G5

2шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

36

D87909

ROD

SHAFT - cross, throttle

1шт.

37

D83337

BUSHING

BEARING - throttle rod

2шт.

38

D95095

RING

- retaining

2шт.

39

D83330

PEDAL

- accelerator, used with Refs. 42-45, see Ref. 46

1шт.

40

D83344

PIN

- pedal base

1шт.

41

D95093

RING

- retaining

2шт.

42

D74829

LINK

- accelerator pedal, used with D83330 pedal only

2шт.

43

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - links, used with D83330 pedal only

2шт.

44

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, used with D83330 pedal only

2шт.

45

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Used with D83330 pedal only 1/16" x 1/2"

2шт.

46

D120403

PEDAL

- accelerator, used with Ref. 47

1шт.

47

B12528

LINK

ASSEMBLY - C2060 roller chain, includes two cotter pins, used with D120403 pedal only

1шт.
