Запчасти Case 580SD (056) - CRANKSHAFT AND FLYWHEEL, 207 TURBOCHARGED DIESEL ENGINE (02) - ENGINE

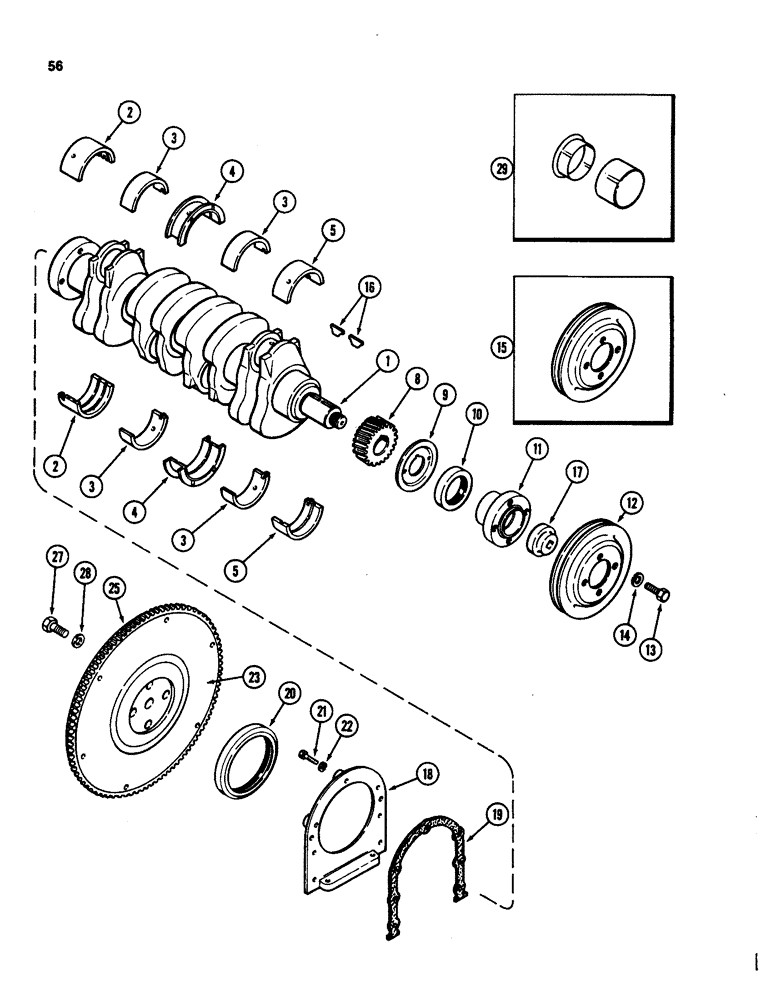

Схема запчастей Case 580SD - (056) - CRANKSHAFT AND FLYWHEEL, 207 TURBOCHARGED DIESEL ENGINE (02) - ENGINE
14
12
29
1
15
28
4
5
22
27
3
2
2
3
11
4
10
8
3
5
9
20
23
17
3
25
21
19
18
13
16

Артикул

Название

Примечание

Количество

1

A153409

CRANKSHAFT

- engine

1шт.

A153409 crankshaft - The turbo and naturally aspirated crankshafts are not interchangeable (connecting rods will not fit).

1шт.

2

A155574

KIT

LINER KIT - main bearing, rear, standard (Set of 2)

1шт.

2

A155575

KIT

LINER KIT - main bearing, rear, 0.002 inch (0.06 mm) undersize (Set of 2)

1шт.

2

A155576

KIT

LINER KIT - main bearing, rear, 0.010 inch (0.26 mm) undersize (Set of 2)

1шт.

2

A155577

KIT

LINER KIT - main bearing, rear, 0.020 inch (0.50 mm) undersize (Set of 2)

1шт.

2

A155578

KIT

LINER KIT - main bearing, rear, 0.030 inch (0.76 mm) undersize (Set of 2)

1шт.

3

A156306

KIT

LINER KIT - main bearing, intermediate, standard (Set of 2)

2шт.

3

A156307

KIT

LINER KIT - main bearing, intermediate, 0.002 inch (0.06 mm) undersize (Set of 2)

2шт.

3

A156308

KIT

LINER KIT - main bearing, intermediate, 0.010 inch (0.26 mm) undersize (Set of 2)

2шт.

3

A156309

KIT

LINER KIT - main bearing, intermediate, 0.020 inch (0.50 mm) undersize (Set of 2)

2шт.

3

A156310

KIT

LINER KIT - main bearing, intermediate, 0.030 inch (0.76 mm) undersize (Set of 2)

2шт.

4

A155758

KIT

LINER KIT - main bearing, center, standard (Set of 2)

1шт.

4

A155759

KIT

LINER KIT - main bearing, center, 0.002 inch (0.06 mm) undersize (Set of 2)

1шт.

4

A155760

KIT

LINER KIT - main bearing, center, 0.010 inch (0.26 mm) undersize (Set of 2)

1шт.

4

A155761

KIT

LINER KIT - main bearing, center, 0.020 inch (0.50 mm) undersize (Set of 2)

1шт.

4

A155762

KIT

LINER KIT - main bearing, center, 0.030 inch (0.76 mm) undersize (Set of 2)

1шт.

5

A155569

KIT

LINER KIT - main bearing, front, standard (Set of 2)

1шт.

5

A155570

KIT

LINER KIT - main bearing, front, 0.002 inch (0.06 mm) undersize (Set of 2)

1шт.

5

A155571

KIT

LINER KIT - main bearing, front, 0.010 inch (0.26 mm) undersize (Set of 2)

1шт.

5

A155572

KIT

LINER KIT - main bearing, front, 0.020 inch (0.50 mm) undersize (Set of 2)

1шт.

5

A155573

KIT

LINER KIT - main bearing, front, 0.030 inch (0.76 mm) undersize (Set of 2)

1шт.

8

A39288

GEAR

- crankshaft

1шт.

9

A29259

SLINGER

- oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front, 3 inch (76 mm)

1шт.

A39110 front oil seal - The wear ring repair kit for this part is A155893.

1шт.

11

A156746

HUB

- fan drive (without air conditioning)

1шт.

12

A166076

PULLEY

- fan drive (without air conditioning)

1шт.

13

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Fan drive hub Hex, 7/16"-14 x 1", G5, Full Thd

4шт.

14

92-7

LOCK WASHER,7/16"

4шт.

15

A154021

PULLEY

- fan drive (with air conditioning)

1шт.

16

A39132

KEY

- pulley and gear (Hi-Pro type)

2шт.

17

A35673

NUT

- pulley retaining

1шт.

A35673 pulley retaining nut - This nut has 7/8-14UNF thread and O.D. is 2". If O.D. of 1 3/4" is required, order A166176.

1шт.

18

A38390

RETAINER

- rear oil seal

1шт.

19

A39188

GASKET

- retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear, 5 inch (127 mm)

1шт.

A51339 rear oil seal - The wear ring repair kit for this part is A49851.

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, Grade 8

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- hex, 1/4 NC x 1 inch, Grade 8

3шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

7шт.

23

A38915

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 25

1шт.

25

G11710

GEAR

- starter ring

1шт.

27

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - hex, 7/16 NF x 1-1/8 inch

4шт.

28

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 3/4 inch (19 mm)

4шт.

29

A155893

SLEEVE

KIT - wear

1шт.

Выбрано товаров: 46
