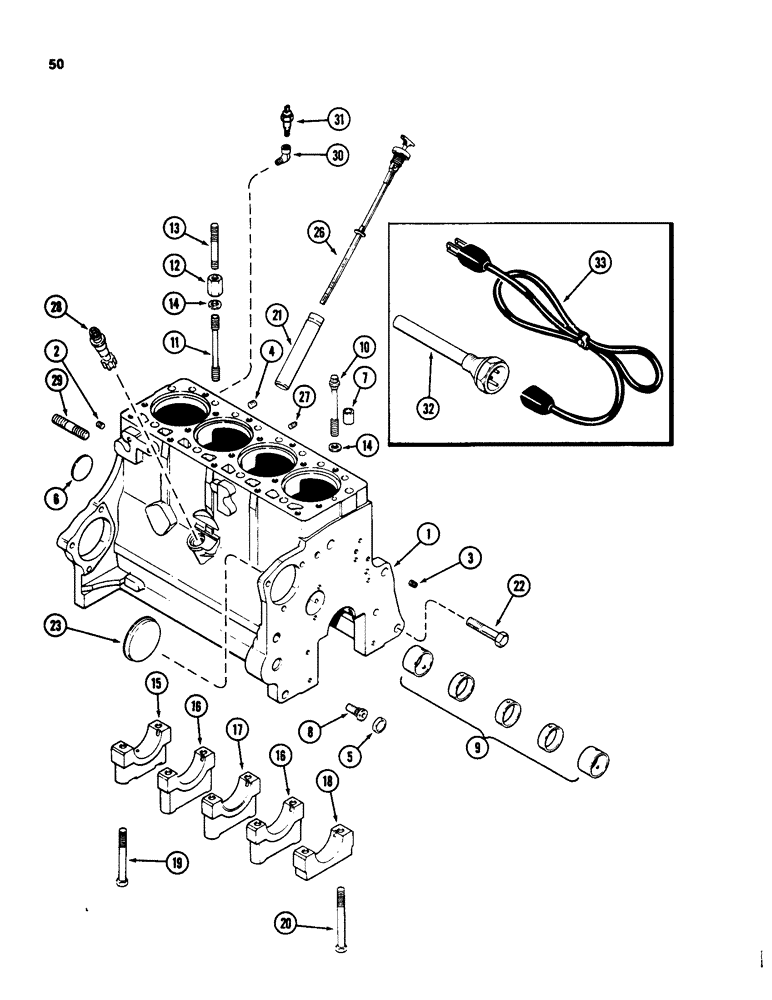

Запчасти Case 580SD (050) - CYLINDER BLOCK, 207 NATURALLY ASPIRATED DIESEL ENGINE (02) - ENGINE

1

A46381

SHORT ENGINE

BLOCK ASSEMBLY - short (Includes stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft, oil pump and timing gears), Includes: Ref. 1 - 33

1шт.

1

A46351

BASIC BLOCK

BLOCK ASSEMBLY - stripped (Casting No. A152625), Includes: Ref. 1 - 23

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

3

G49070

PLUG

- socket head, oil gallery, 1/4 inch PT, drilled

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - socket head, water gallery, 3/8 inch PT

1шт.

5

41-1016

PLUG,Cup, 1"

- cup type, adapter hole, 1 inch (25 mm)

1шт.

6

41-1030

PLUG,Cup, 1 7/8"

- cup type, camshaft hole, 1-7/8 inch (48 mm)

1шт.

7

G49608

RING

- dowel, head locating

2шт.

8

A153552

ADAPTER

- oil filter (Replaces A37206)

1шт.

9

REF

INSTRUCTION

BUSHING - camshaft (See Figure 048)

1шт.

10

A39047

12 PT SCREW

BOLT - 12 point head, cylinder head, 1/2 NC x 3-1/2 inch

4шт.

10

A39048

12 PT SCREW

BOLT - 12 point head, cylinder head, 1/2 NC x 5-1/8 inch

11шт.

10

A39049

12 PT SCREW

BOLT - 12 point head, cylinder head, 1/2 NC x 5-5/8 inch

2шт.

11

A36902

STUD

- cylinder head, 1/2 NC x 5-5/8 inch

2шт.

12

A51114

NUT

- cylinder head studs, 1/2 NC and 3/8 NC

2шт.

13

A51271

STUD

- cylinder head cover, 3/8 NC x 3-3/4 inch

2шт.

14

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 7/8 inch (22 mm)

19шт.

15

A38385

CAP

- main bearing, rear

1шт.

16

G2128

CAP

- main bearing, intermediate

2шт.

17

G2127

CAP

- main bearing, center

1шт.

18

G2126

CAP

- main bearing, front

1шт.

19

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, bearing caps, 1/2 NC x 4-1/2 inch

8шт.

20

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- hex, front bearing cap, 1/2 NC x 5-1/8 inch

2шт.

21

A37149

TUBE

- oil filler and dipstick (Discard extension tube, o-ring and clamp. Not used this model)

1шт.

22

A38303

BOLT

BOLT - hex, front support, 5/8 NC x 3-3/16 inch

1шт.

23

41-1052

PLUG,Cup, 3 1/4"

COVER - auxiliary drive opening, 3-1/2 inch (94 mm) cup type

1шт.

26

A39936

DIPSTICK

- oil level

1шт.

27

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square head, drain, cylinder block, 1/4 inch PT

1шт.

28

A137572

DRIVE

ASSEMBLY - tachometer

1шт.

29

A51793

STUD

- 5/8 NF x 3-3/16 inch

2шт.

30

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- 45 degree, oil pressure switch

1шт.

31

A162297

SWITCH

SENDING UNIT - oil pressure

1шт.

REF

INSTRUCTION

BLOCK HEATER

1шт.

32

A44815

HEATER

ASSEMBLY - block, block heater, Includes: Ref. 33

1шт.

33

A44814

ELECTRIC CABLE

CORD - heater, 12 inch long (305 mm), block heater

1шт.
