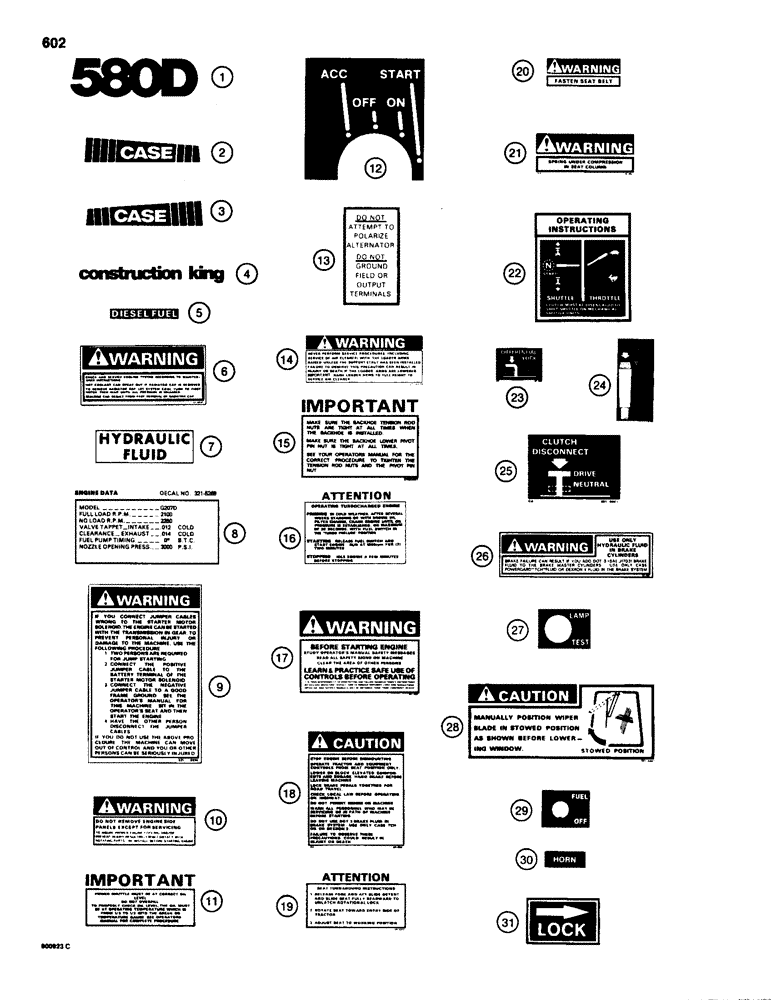

Запчасти Case 580SD (602) - DECALS (09) - CHASSIS/ATTACHMENTS

N7013

DECAL

KIT - decal, 580D, Includes: Ref. 1 - 31

1шт.

1

321-6251

DECAL

- 580D

4шт.

1a

D120624

DECAL - 580D, white color

2шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

2

321-6246

DECAL

- Case, with treads, right-hand

1шт.

2a

D120622

DECAL

- Case, with treads, right-hand, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

3

321-6247

DECAL

- Case, with treads, left-hand

1шт.

3a

D120623

DECAL

- Case, with treads, left-hand, white color

1шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

4

321-3306

DECAL

- construction king

2шт.

4a

321-5586

DECAL

- construction king, white color

2шт.

White decals for use on dark painted tractors are not illustrated and are not included in the decal kit. Order separately.

1шт.

5

321-2601

DECAL

- Diesel Fuel

1шт.

6

321-6672

DECAL

- Warning, hot coolant

1шт.

7

321-229

DECAL

- Hydraulic Fluid

1шт.

8

321-5268

DECAL

- Engine Data, for non-turbocharged engines, not used on Super D models

1шт.

8a

321-5967

DECAL - Engine Data, for turbocharged engines only, not shown, Super D models only, not included in kit, must be ordered separately

1шт.

9

321-5974

DECAL

- Warning, starter, negative ground

1шт.

10

321-5701

DECAL

- Warning, rotating parts

2шт.

11

321-3882

DECAL

- Important, power shuttle oil level

1шт.

12

321-5570

DECAL

- ignition switch

1шт.

13

321-1061

DECAL

- alternator instructions

1шт.

14

321-6278

DECAL

- Warning, loader frame support strut usage, Super D models only

1шт.

15

D120497

DECAL

- Important, backhoe tension rod nuts

1шт.

16

321-5692

DECAL

- Attention, operating turbocharged engine, Super D models only

1шт.

17

321-3705

DECAL

- Warning, before starting engine

1шт.

18

321-6262

DECAL

- Caution, safety warnings

1шт.

19

321-6215

DECAL

- Attention, seat turnaround instructions

1шт.

20

321-3060

DECAL

- Warning, fasten seat belt

1шт.

21

321-3055

DECAL

- Warning, spring under compression in seat column

1шт.

22

321-3025

DECAL

- Operating Instructions, shuttle and throttle control pattern

1шт.

23

321-5598

DECAL

- differential lock

1шт.

24

321-5797

DECAL

- clutch disconnect, lever

1шт.

25

321-5441

DECAL

- clutch disconnect, floor

1шт.

26

321-6708

DECAL

- Warning, hydraulic fluid in brake cylinders, replaces Caution, do not use DOT3 brake fluid decal on some models

1шт.

27

321-5696

DECAL

- Lamp Test

1шт.

28

321-5801

DECAL

- Caution, manually park wiper blade before lowering window

1шт.

29

D91335

PLATE

- decal, fuel shutoff, Super D models only

1шт.

30

321-3294

DECAL

- Horn

1шт.

31

321-5922

DECAL

- lock, boom

1шт.
