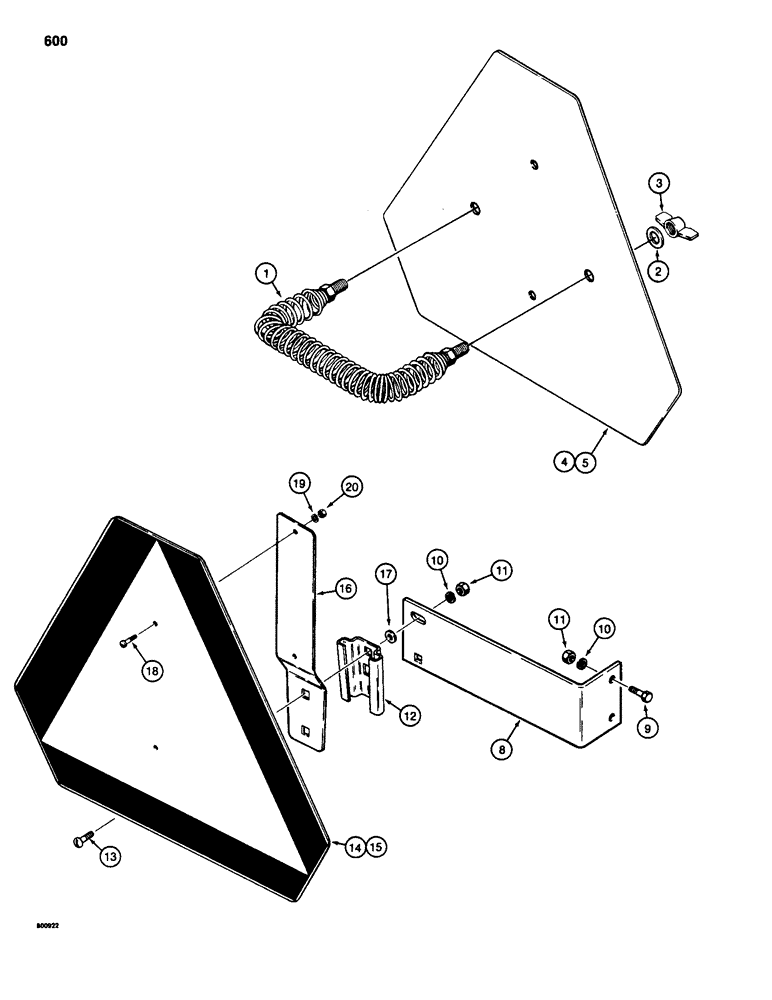

Запчасти Case 580SD (600) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

USED ON MODELS WITH BACKHOE

1шт.

1

D52564

SPRING

- emblem retaining

1шт.

2

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

3

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

4

D123347

WARNING SIGN

EMBLEM - plate and decal

1шт.

5

321-4311

DECAL

- emblem

1шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used when storing emblem only, not shown

2шт.

REF

INSTRUCTION

USED ON MODELS WITHOUT BACKHOE

1шт.

8

D91465

BRACKET

- SMV emblem mounting, horizontal

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

A59457

BRACKET

- emblem mounting, short

1шт.

13

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - round head, 5/16" - 18 NC x 3/4", plated

2шт.

A59450

WARNING SIGN

EMBLEM ASSEMBLY - SMV, riveted construction, replaces bolted construction, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

15

321-4311

DECAL

- emblem

1шт.

16

NSS

NOT SOLD SEPARAT

BRACKET - emblem mounting, vertical, long

1шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16"

1шт.

18

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head, No. 10 - 24 NC x 1/2", plated, if used

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, if used

2шт.
