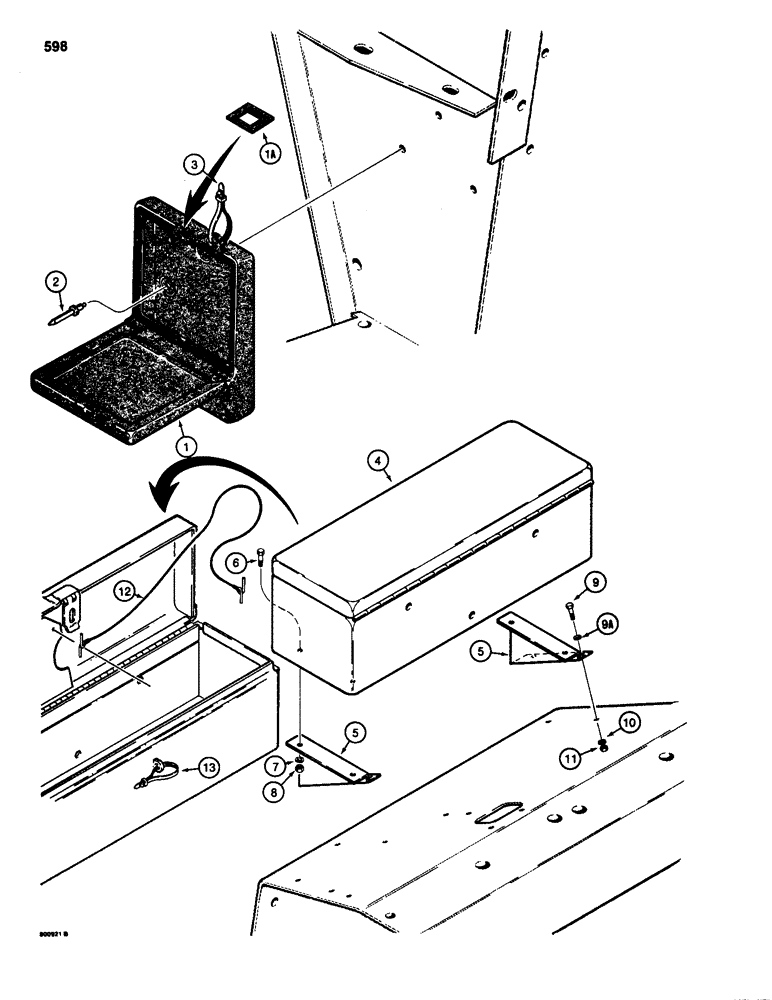

Запчасти Case 580SD (598) - OPERATORS MANUAL BOX AND TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

R38893

CASE

MANUAL BOX - tractor, if used, Includes: Ref. 1A

1шт.

1a

N7120

LATCH

- manual box

1шт.

2

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16"

3шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

D55624

TOOL

BOX - tractor, uses bolt-on mounting brackets, Ref. 5, does not have clip for operators manual, Includes: Ref. 5

1шт.

4

D120453

TOOL

BOX - tractor, uses bolt-on mounting brackets, Ref. 5, has internal clip for operators manual, Includes: Ref. 5

1шт.

4

NSS

NOT SOLD SEPARAT

TOOL BOX - tractor, has lower mounting brackets welded on, has internal clip for operators manual, not shown, order D120453 plus Refs. 5 - 8

1шт.

5

D84021

BRACKET

- mounting, tool box

2шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

9

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

9a

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

12

A141917

ROPE

CORD - manual retaining

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
