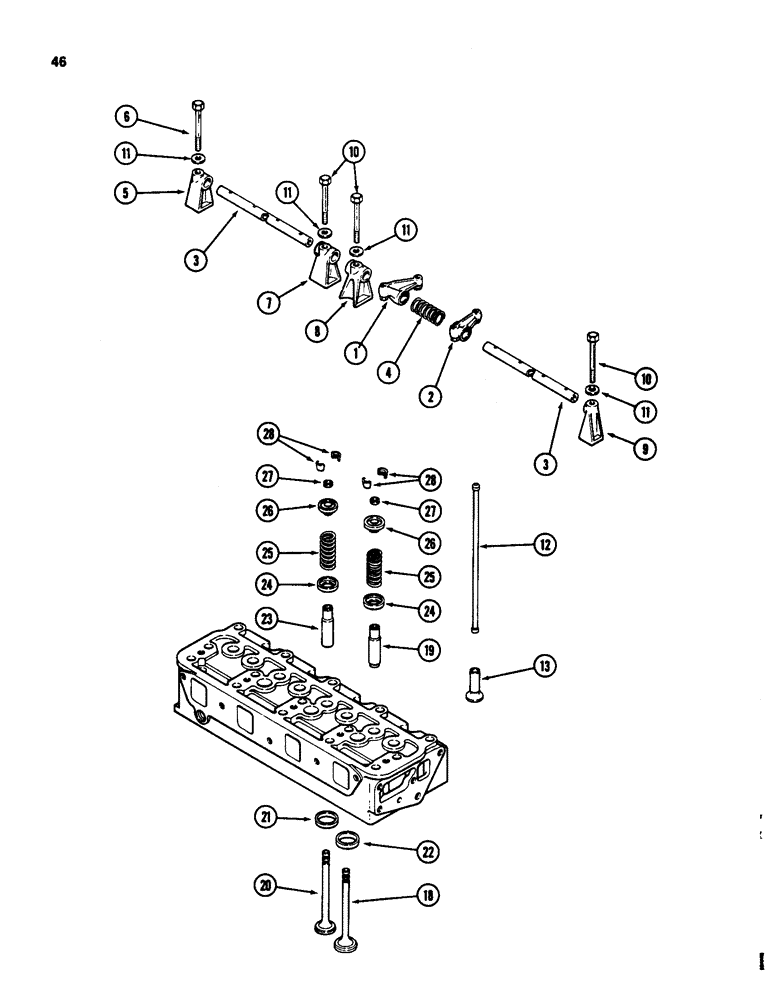

Запчасти Case 580SD (046) - VALVE MECHANISM, 207 TURBOCHARGED DIESEL ENGINE, 207 NATURALLY ASPIRATED DIESEL ENGINE (02) - ENGINE

1

A51149

ARM

ASSEMBLY - rocker, left, with adjusting screw

4шт.

2

A51148

ARM

ASSEMBLY - rocker, right, with adjusting screw

4шт.

3

A38181

SHAFT

- rocker arm

2шт.

4

G48501

SPRING

- rocker arm shaft

4шт.

5

A36615

BRACKET

- rear, rocker arm shaft

1шт.

6

G49067

BOLT

- rear bracket (drilled)

1шт.

7

G2101

BRACKET

- center

1шт.

8

A51084

BRACKET

- intermediate

2шт.

9

G2100

BRACKET

- front

1шт.

10

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, bracket, 3/8 NC x 2-1/2 inch

4шт.

11

A30058

WASHER

- bracket bolt, 7/8 inch (22 mm)

5шт.

12

G47079

ROD

- push

8шт.

13

G47077

TAPPET

LIFTER - push rod

8шт.

18

A41726

VALVE

- intake, 45 degree (Naturally aspirated only) (Set of 4)

1шт.

18

A155394

VALVE

- intake, 30 degree (Turbocharged only)

4шт.

19

G2068

GUIDE

- intake valve

4шт.

20

A41727

VALVE

- exhaust (Set of 4)

1шт.

21

A39268

INSERT

- exhaust valve seat

4шт.

22

A155397

INSERT

- intake valve seat (Turbocharged only)

4шт.

23

G2069

GUIDE

- exhaust valve

4шт.

24

G49065

SEAT

- valve spring

8шт.

25

A30025

SPRING

- valve

8шт.

26

G11927

RETAINER

- valve spring (Order 8-A30004 locks and 4-G11717 retainers)

2шт.

27

G46851

SEAL

- valve stem, rubber

8шт.

Seal used on intake and exhaust valves for naturally aspirated engine. Seal used on exhaust valve only for turbocharged engine.

1шт.

28

A30004

RETAINER

LOCK - retainer

16шт.
